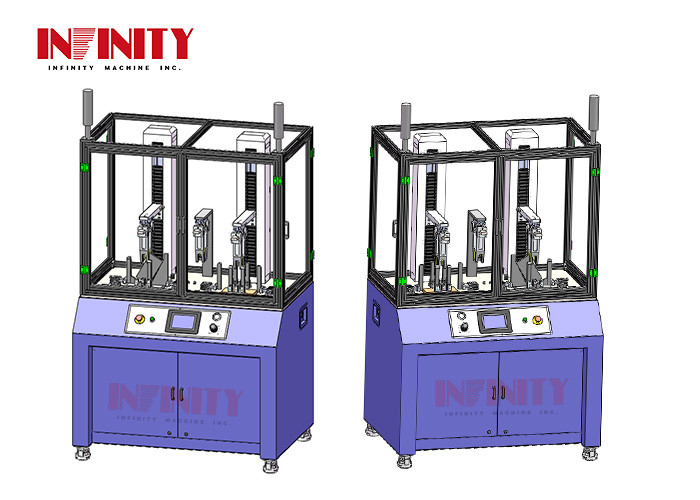

Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners

Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners

  • Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners
  • Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners
Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: ID2020
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Test Station: 2 Sets Air Supply: ≧0.5MPa
Weight: About 282kg Product Name: Repeated Slight Drop Test Machine
Features 3: It Can Realize Repeated Drops Of Laptops, Mobile Phones And Other Products To Test The Impact Resistance Of Products Dropped From A Certain Height. Application Of Equipment: This Machine Is Suitable For Repeated Slight Drop Tests On Electronic Products Such As Mobile Phones, Tablets, Notebooks, And E-books. The Test Is Designed To Simulate A Product Being Lightly Dropped Onto A Desktop, Metal Surface, Marble Board And Other Me
Features 2: The Japanese Panasonic Servo Motor Is Used As The Driving Source For The Rising And Falling Test Products, And Is Equipped With A Precision Double-acting Cylinder For Positioning The Test Piece. The Quality Is Reliable And Durable. Action Principle: The Servo Motor Drives The Upper Clamp (clamping Jaw) To Descend To Pick Up The Product To Be Tested. When It Rises To The Set Drop Height, The Clamping Jaw Opens And The Product Is Released To Complete The Free Fall. Then The Positioning Cylinder Arranges

Repeated Slight drop Test Machine

Repeated Micro drop Test Machine Servo Motor Drives Upper Clamp for 6 Sides and 4 Corners 0



Product Description:

Drop Testing Machine - Repeated Slight Drop Test Machine

Our Repeated Slight Drop Testing Machine, also known as a Drop Impact Tester or Drop Durability Tester, is a highly efficient and reliable product designed to test the impact resistance of various products. With a power supply of AC 220V±10%, 50Hz or as specified by the user, this machine is suitable for use in different countries and regions.

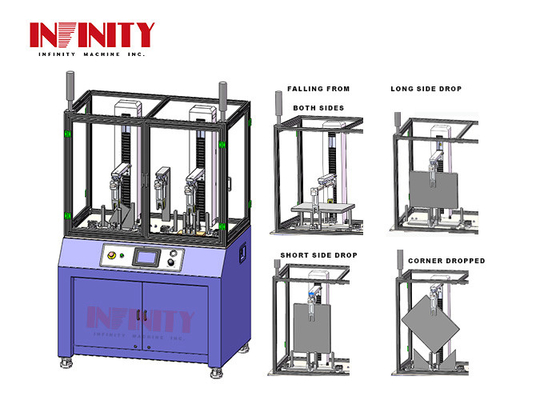

One of the key features of our product is its ability to complete drop tests on all 6 sides and 4 corners of the product, providing a comprehensive evaluation of its impact resistance. This allows for a more accurate and realistic assessment of the product's durability in real-life scenarios.

In order to ensure the best performance and consistency, our Drop Testing Machine utilizes SMC pneumatic components and professional control methods. This not only improves the test speed but also guarantees a high level of consistency in the results. The machine also features an Omron color LCD touch screen and a Mitsubishi PLC programmable controller for precise action control. With a user-friendly interface available in both Chinese and English, the machine is easy to operate for users of all levels.

The maximum test weight for our Drop Testing Machine is 2kg, making it suitable for a wide range of products. It can be used for repeated slight drop tests, simulating the impact a product may experience during normal use or transportation. This allows manufacturers to identify potential weaknesses and make improvements to ensure the product's durability.



Features:

  • Product Name: Drop Testing Machine
  • Dimension: W1186xD866xH1853mm
  • Features:
    • SMC Pneumatic Components for improved test speed and consistency
    • Omron Color LCD Touch Screen and Mitsubishi PLC Programmable Controller for easy action control
    • Chinese and English interface for easy operation
  • Power: AC 220V±10%, 50Hz or specified by user
  • Features:
    • Servo Motor for precise drop height location with an accuracy of 0.1mm
  • Application of equipment:
    • Suitable for repeated slight drop tests on electronic products such as mobile phones, tablets, notebooks, and e-books
    • Designed to simulate a product being lightly dropped onto various surfaces such as desktops, metal surfaces, and marble boards to evaluate product performance, durability, and internal structure resistance


Technical Parameters:

Features Use SMC Pneumatic Components And Professional Control Methods To Greatly Improve Test Speed And Consistency.
  Adopts Omron Color LCD Touch Screen And Mitsubishi PLC Programmable Controller For Action Control. Has Chinese And English Interface And Is Easy To Operate.
Test Weight 2Kg (max)
Action Principle The Servo Motor Drives The Upper Clamp (clamping Jaw) To Descend To Pick Up The Product To Be Tested. When It Rises To The Set Drop Height, The Clamping Jaw Opens And The Product Is Released To Complete The Free Fall. Then The Positioning Cylinder Arranges The Product To The Clamping Jaw For Picking Up Again. Position, The Servo Motor Drives The Upper Clamp (clamping Cylinder) Down To Clamp The Test Piece, Rises And Releases, And The Test Piece Falls Freely, And This Is Repeated Until The Set Number Of Times.
Features Use Servo Motor To Locate The Drop Height, With Height Accuracy As Low As 0.1mm.
Test Cycle Setting 1~999999times
Dropping Medium Steel Plate, Wooden Board, Marble Board (can Be Replaced As Needed)
Power AC 220V±10%, 50Hz Or Specified By User
Testing Speed 1~30 Cycles/min
Features The Manual Function Pre-sets The Action Function To Facilitate Adjustment Of Each Action Connection For Accurate Positioning.
Weight About 282kg


Applications:

Drop Testing Machine - INFINITY
Brand Name: INFINITY

Model Number: ID2020

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Test Weight: 2Kg (max )

Features:

  • The Japanese Panasonic Servo Motor Is Used As The Driving Source For The Rising And Falling Test Products
  • Equipped With A Precision Double-acting Cylinder For Positioning The Test Piece
  • The Quality Is Reliable And Durable
  • Manual Function Pre-sets The Action Function For Accurate Positioning
  • SMC Pneumatic Components And Professional Control Methods To Improve Test Speed And Consistency
  • Adopts Omron Color LCD Touch Screen And Mitsubishi PLC Programmable Controller For Easy Operation
Application of equipment:

This Machine Is Suitable For Repeated Slight Drop Tests On Electronic Products Such As Mobile Phones, Tablets, Notebooks, And E-books. The Test Is Designed To Simulate A Product Being Lightly Dropped Onto A Desktop, Metal Surface, Marble Board And Other Media During Use To Evaluate The Impact Of A Slight Drop On The Performance Of The Entire Product, The Durability Of The Casing, And The Resistance Of The Product's Internal Structure To Light Drops.

Features:

The Repeated Slight Drop Testing Machine, also known as the Drop Test Rig or Drop Impact Tester, is designed for testing the durability and resistance of electronic products against slight drops. It is suitable for various electronic devices such as mobile phones, tablets, notebooks, and e-books. The machine is equipped with a Japanese Panasonic Servo Motor as the driving source and a precision double-acting cylinder for positioning the test piece, ensuring reliable and durable performance.

The manual function allows for pre-setting of the action function, making it easy to adjust and accurately position each action connection. The use of SMC Pneumatic Components and professional control methods greatly improves the test speed and consistency. The machine is also equipped with an Omron color LCD touch screen and Mitsubishi PLC programmable controller, with a Chinese and English interface for easy operation.



Customization:

INFINITY Drop Testing Machine - ID2020
Customization Service

Thank you for choosing INFINITY Drop Testing Machine - ID2020. Our product is designed to provide accurate and reliable drop impact resistance testing for various products. As a leading manufacturer in China, we are proud to offer customization services to meet your specific testing needs. Please find the details below:

Brand Name:

INFINITY

Model Number:ID2020
Place of Origin:Made in China
Certification:CE, ISO
Minimum Order Quantity:1 set
Price:Negotiable
Packaging Details:wood carton
Delivery Time:

20-30 days after order confirmed

Weight:About 282kg
Action Principle:

The servo motor drives the upper clamp (clamping jaw) to descend and pick up the product to be tested. When it rises to the set drop height, the clamping jaw opens and the product is released to complete the free fall. The positioning cylinder then arranges the product to the clamping jaw for picking up again. This process is repeated until the set number of times.

Test Cycle Setting:

1-999999 times

Test Station:2 sets
Drop Height:Adjustable from 1mm to 300mm

Packing and Shipping:

Packaging and Shipping for Repeated Slight Drop Testing Machine

Our Repeated Slight Drop Testing Machine is carefully packaged and shipped to ensure safe delivery to our customers.

Packaging:

The machine will be securely packed in a sturdy wooden crate to protect it during transportation. The crate will be lined with foam padding to prevent any damage from impacts and vibrations. The machine will be wrapped in a layer of protective film to keep it clean and dust-free.

Shipping:

We offer international shipping to our customers worldwide. The shipping method will be determined based on the customer's location and preferences.

The machine will be shipped via a trusted and reliable shipping company to ensure timely delivery and handling of the package. The shipping company will provide tracking information for the customer to monitor the delivery status of their package.

For international shipments, we will handle all necessary customs and export procedures to ensure a smooth delivery process for our customers.

Upon receiving the package, customers are advised to carefully inspect the crate for any signs of damage during transportation. If any damage is found, please contact our customer service team immediately for assistance.

Thank you for choosing our Drop Testing Machine. We strive to provide the best packaging and shipping services to ensure your satisfaction with our product.
