0- -10 Kpa Vacuum Table Range Environmental Test Chamber For Adjustable Total Test Time

Product Description:

The Sand Dust Test Chamber comes with a free dust removal method, making it easy to replace used dust. It is suitable for IP5X, IP6X dust proof grade test of products. The shell is made of domestic high-quality steel plate, the surface spraying paint is both beautiful and durable, while the inner box and sample frame are made of stainless steel plate to ensure no rust for a long time.

The Sand Dust Test Chamber has a transparent observation window (tempered glass is made of material) on the door, and LED lights are installed in the box to observe the internal test situation. The bottom of the equipment has a replaceable dust device, which can easily replace the used dust. The box is installed with a vibration device, which can work automatically alternately to prevent dust from sticking to the wall of the box and condensation.

In addition, there is a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample). The Sand Dust Test Chamber is equipped with a control system using a 7-inch touch screen + Panasonic PLC, which can display the year, month, day, time, working time, etc. It can control the dust blower, dust vibration, and total test time respectively. This controller has the following arbitrary setting control functions:

• A. Dust Blowing Time (stop and blow): Arbitrarily select the time setting of continuous and periodic dust blowing.
• B. Vibration Time: Vibration and stop vibration time automatically alternate.
• C. Preset Test Time: The test time range is 0-999999 minutes.
• D. Power On: Off --- On --- Off.

The Sand Dust Test Chamber also features a heating system, with a heater installed in the circulating air duct to avoid dust condensation. The pipe wrap hoop mica sheet heating ring ensures that the heat is safe and stable. Additionally, the equipment comes with a vacuum system, equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe. The timeline accuracy of the Sand Dust Test Chamber is ±1 second, making it an accurate and reliable equipment for your testing needs.

The Sand Dust Test Chamber is widely used in various fields, including outdoor lamps, household appliances, auto parts, and other electronic and electrical products. It is an essential equipment for testing the performance of products after simulating dust conditions. By providing verification, it facilitates the design, improvement, verification, and factory inspection of the product.

The standard spacing between the lines of the Sand Dust Test Chamber is 75um, making it an effective testing equipment for your needs. With its unique features and reliable performance, the Sand Dust Test Chamber is an excellent investment for your business's testing needs.

Features:

• Product Name: Environmental Test Chamber
• Equipment power supply power: 220V 50Hz 1.5KW (or Specified)
• Safety protection function: Leakage Protection, Short-circuit Protection
• Product name: Sand Dust Test Chamber
• Metal screen standard line via: 50um
• Equipment overview: Application Fields: Outdoor Lamps, Household Appliances, Auto Parts And Other Electronic And Electrical Products. Equipment Use: The Main Function Of The Equipment Is To Test The Electronic And Electrical Products, Lamps, Electrical Cabinets, Electrical Components, Automobiles, Motorcycles And Their Components In The Physical And Other Related Properties Under The Climatic Conditions Of Simulating Dust. After The Test, To Judge Whether The Performance Of The Product Meets The Requirements Through Verification, So As To Facilitate The Design, Improvement, Verification And Factory Inspection Of The Product.

Keywords: Environmental Dust Proof Testing Machine, Climate Sand Dust Test Chamber, Climate Sand Dust Test Chamber

Technical Parameters:

Applications:

Looking for an Environmental Dust Proof Testing Machine? The Infinity Machine IE7 series is the perfect solution for your needs. Made in China and certified with CE and ISO, this machine is designed to simulate various environmental conditions in order to test the durability and reliability of your products. With a minimum order quantity of 1 and negotiable pricing, the IE7 series is a cost-effective option for any business.

The IE7 series is especially useful for testing products that are intended for use in harsh environments, such as construction equipment. The Climate Sand Dust Test Chamber is capable of creating an environment with a high concentration of dust, mimicking the conditions of a desert or other arid region. This allows you to test how well your products can withstand exposure to dust and sand, which can cause damage to sensitive components.

Another common use for the IE7 series is for testing electronics and other devices that are used in humid environments. The Environmental Sand Dust Simulation Test Chamber is capable of creating a high-humidity environment, which can cause corrosion and other damage to electronic components. By subjecting your products to these conditions, you can ensure that they will function properly even when exposed to moisture.

The IE7 series is designed with ease of use in mind. The machine comes with a standard dosage of talc powder, which can be adjusted to suit your specific needs. The speed of evacuation is also adjustable, with a range of 0-60L/H. The inner box size is customizable, with dimensions of 800*800*800mm. The external dimensions are also customizable, with dimensions of 1250*1050*1755mm. The machine uses Arizona DUST A2 (standard With 2 Kg) for testing, which is a widely recognized standard in the industry.

The Infinity Machine IE7 series has a supply ability of 200 sets per month, with a delivery time of 200 sets per month. Payment terms include T/T, D/P, and L/C. The machine is packaged in a master carton for easy transportation.

Customization:

The IE7 series complies with IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code). GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3. GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. The standard spacing between the lines is 75um and the vacuum table range is 0- -10 Kpa (adjustable). The equipment power supply power is 220V 50Hz 1.5KW (or Specified). The test dust used is Arizona DUST A2 (standard With 2 Kg).

With our Environmental Sand Dust Simulation Test Chamber, customization is available to meet your specific testing needs. Contact us today to learn more about how we can help you with your testing requirements.

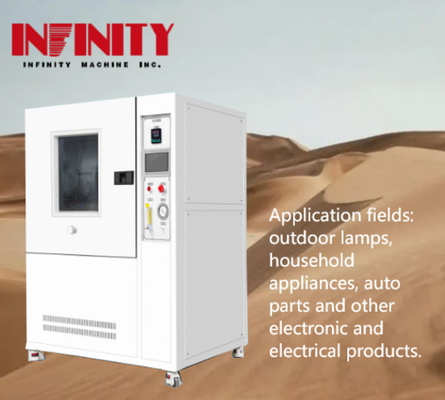

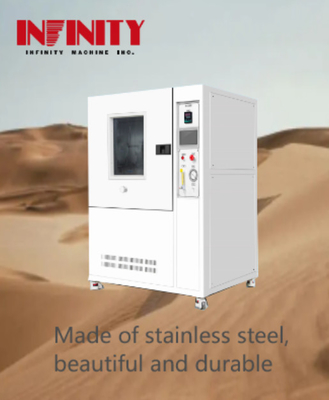

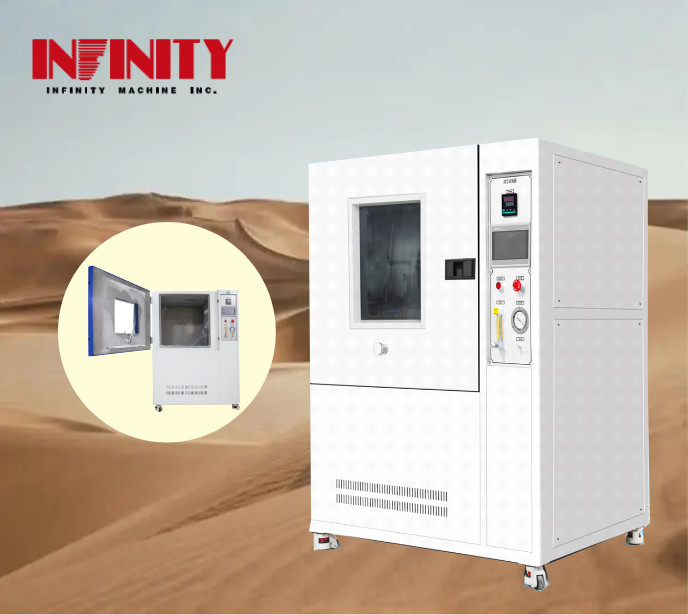

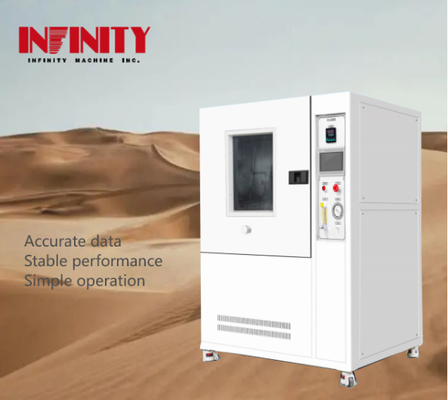

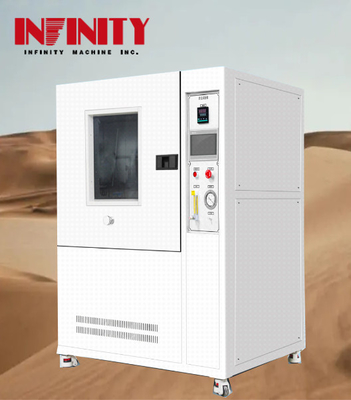

Device picture:

Support and Services:

The Environmental Test Chamber product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experienced technicians is available to provide assistance with installation, calibration, and maintenance of the equipment. We offer regular maintenance and inspection services to keep the chamber in top working condition, and can also provide repair services and replacement parts if needed.

In addition to our technical support and services, we also offer training and education resources to help users get the most out of their Environmental Test Chamber. Our training programs cover topics such as proper operation, maintenance, and troubleshooting, and are designed to ensure that users have the knowledge and skills needed to use the chamber safely and effectively.

Packing and Shipping:

Product Packaging:

The Environmental Test Chamber will be securely packaged in a wooden crate to ensure safe transportation. The crate will be sealed to prevent any damage to the product during shipping.

Shipping:

The Environmental Test Chamber will be shipped via standard ground shipping to the address provided by the customer. Shipping charges will be calculated at the time of purchase and added to the total cost of the product. Customers will receive a tracking number once the product has been shipped.

FAQ:

What is the brand name of the Environmental Test Chamber product?

The brand name of our Environmental Test Chamber product is Infinity Machine.

What is the model number of the Environmental Test Chamber product?

The model number of our Environmental Test Chamber product is IE7 series.

Where is the Environmental Test Chamber product made?

The Environmental Test Chamber product is made in China.

What certifications does the Environmental Test Chamber product have?

The Environmental Test Chamber product has CE and ISO certifications.

What is the minimum order quantity for the Environmental Test Chamber product?

The minimum order quantity for the Environmental Test Chamber product is 1.
