Month Features Environmental Dust Proof Testing Machine With Adjustable Performance

Month Features Environmental Dust Proof Testing Machine with Adjustable Performance

Product Description:

The inner box and sample frame are made of stainless steel plate to ensure no rust for a long time. There is a transparent observation window (tempered glass is made of material) on the door, and LED lights are installed in the box to observe the internal test situation. The bottom of the equipment has a replaceable dust device, which can easily replace the used dust. The box is installed with a vibration device, which can work automatically alternately to prevent dust from sticking to the wall of the box and condensation. There is a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample).

The control system of the Climate Sand Dust Test Chamber uses a 7-inch touch screen + Panasonic PLC, which can display the year, month, day, time, working time, etc. Control the dust blower, dust vibration, and total test time respectively. This controller has the following arbitrary setting control functions:

• A. Dust Blowing Time (Stop and Blow): Arbitrarily select the time setting of continuous and periodic dust blowing;
• B. Vibration Time: Vibration and stop vibration time automatically alternate;
• C. Preset Test Time: The test time range is 0-999999 minutes;
• D. Power On: Off —— On —— Off.

The heating system of the Sand Dust Test Chamber comprises a heater installed in the circulating air duct to avoid dust condensation. The pipe wrap hoop mica sheet heating ring ensures that the heat is safe and stable. The vacuum system is equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe.

The Environmental Test Chamber complies with IEC60529:1989 + A1:1999 + A2:2013, Degrees of Protection Provided by Enclosures (IP Code), GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 and Figure 3, GB7000.1 Article 9.2.1 and No.9.2.2 and Fig. 6. The device can perform tests with Arizona Dust A2 (standard with 2 kg), standard dosage of talc powder (2～4kg/m³), and metal screen standard line via (50um).

Features:

• Product Name: Environmental Test Chamber
• Vibration time: 0-999999S (adjustable)
• Equipment overview:

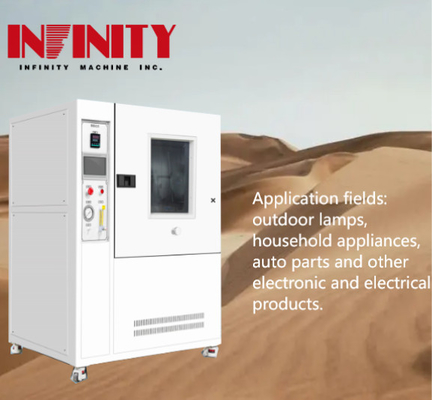

  • Application Fields: Outdoor Lamps, Household Appliances, Auto Parts And Other Electronic And Electrical Products.
  • Equipment Use: The Main Function Of The Equipment Is To Test The Electronic And Electrical Products, Lamps, Electrical Cabinets, Electrical Components, Automobiles, Motorcycles And Their Components In The Physical And Other Related Properties Under The Climatic Conditions Of Simulating Dust. After The Test, To Judge Whether The Performance Of The Product Meets The Requirements Through Verification, So As To Facilitate The Design, Improvement, Verification And Factory Inspection Of The Product.
• Powder spraying and dust removal method: Free Dust Removal
• Timeline accuracy: ± 1 Second
• Total Test Time: 0-9999999 Min (Adjustable)

Keywords: Environmental Sand Dust Simulation Test Chamber, Environmental Sand Dust Simulation Test Chamber, Sand Dust Test Chamber

Technical Parameters:

Applications:

The Infinity Machine IE7 series is an Environmental Sand Dust Simulation Test Chamber that is made in China. It has CE and ISO certification and a minimum order quantity of 1. The price is negotiable and it comes in master carton packaging. The delivery time is 200 sets per month and the payment terms are T/T, D/P, and L/C. The supply ability is 200 sets per month.

The IE7 series is perfect for testing products in various environments. It can simulate sand and dust conditions, making it ideal for testing the durability of products in harsh environments. It is useful for testing products such as electronics, automobiles, military equipment, and other products that need to operate in dusty environments.

The standard dosage of talc powder for the IE7 series is 2-4kg/m³. The external dimensions are customizable, with the standard dimensions being (W * D * H): 1250 * 1050 * 1755mm. The metal screen standard line via is 50um, and the standard spacing between the lines is 75um. The speed of evacuation is adjustable, with a range of 0-60L/H.

The IE7 series is perfect for a variety of applications. It can be used in laboratories, research institutions, and manufacturing plants. It is ideal for testing products that are used in harsh environments, such as military vehicles and equipment, mining equipment, and construction machinery. It is also perfect for testing products that are used in sandy or dusty environments, such as electronics, solar panels, and wind turbines.

With its advanced features and customizable design, the Infinity Machine IE7 series Environmental Sand Dust Simulation Test Chamber is the perfect solution for a wide range of testing applications. Its durable construction and reliable performance make it an essential tool for any company that designs and manufactures products that need to operate in harsh environments.

Customization:

Brand Name: Infinity Machine

Model Number: IE7 series

Place of Origin: Made In China

Certification: CE,ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Master carton

Delivery Time: 200 sets per month

Payment Terms: T/T,D/P,L/C

Supply Ability: 200 sets / month

External dimensions: (W * D * H): 1250 * 1050 * 1755mm (customizable)

Product name: Sand Dust Test Chamber

Speed of evacuation: 0-60L / H (Adjustable)

Power supply for the test samples: 220V (or Specified)

Test dust: Arizona DUST A2 (standard With 2 Kg)

Description: This Environmental Dust Proof Testing Machine is designed for testing the ability of electronic, automobile and rubber products to withstand environmental changes. The Sand Dust Test Chamber can be used to test the dust-proof and sand-proof performance of products. It is widely used in industries such as aviation, automobile, and electronic appliances.

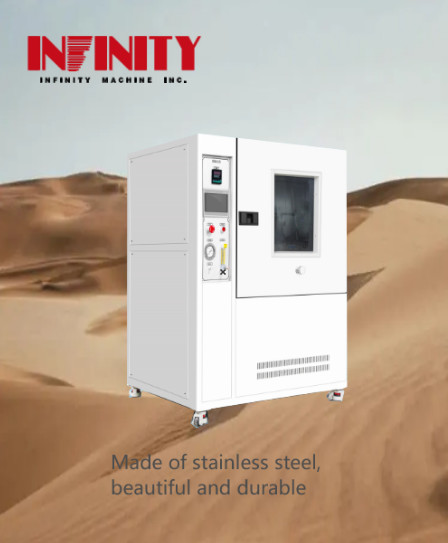

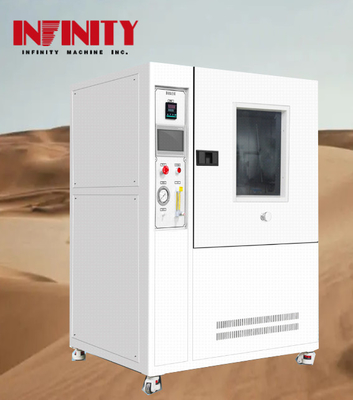

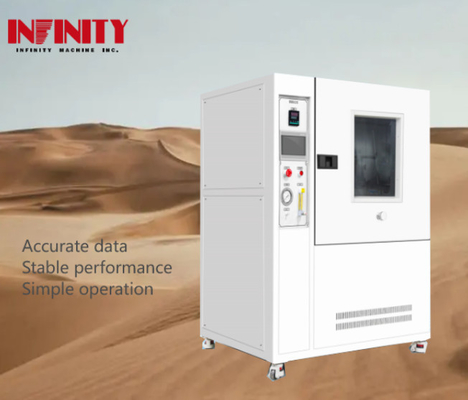

Device picture:

Support and Services:

The Environmental Test Chamber product technical support and services include:

• Installation and setup assistance for new units
• Technical troubleshooting and diagnosis
• Repair and maintenance services
• Calibration and testing services
• Training and educational resources for users
• Access to online documentation and FAQs

Our team of experienced technicians is available to assist with any questions or concerns you may have regarding your Environmental Test Chamber. We strive to provide efficient and effective support to ensure your unit is operating at its optimal performance.

Packing and Shipping:

Product Packaging:

The Environmental Test Chamber will be packaged in a sturdy cardboard box with foam cushioning to ensure safe transport. The chamber will be disassembled and all necessary components will be securely wrapped and packed within the box. The box will be labeled with the product name, model number, and handling instructions.

Shipping:

The Environmental Test Chamber will be shipped via a reputable shipping carrier, such as FedEx or UPS, to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and delivery speed selected by the customer. The customer will receive a tracking number once the product has shipped, allowing them to track the delivery status.

FAQ:

Q: What is the brand name of this environmental test chamber?

A: The brand name is Infinity Machine.

Q: What is the model number for this product?

A: The model number is IE7 series.

Q: Where is this product made?

A: This product is made in China.

Q: What certifications does this product have?

A: This product is certified by CE and ISO.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity is 1.

Q: What is the price for this product?

A: The price is negotiable. Please contact us for more information.

Q: How is this product packaged?

A: This product is packaged in a master carton.

Q: What is the delivery time for this product?

A: Our supply ability is 200 sets per month, so delivery time will depend on the quantity ordered. Please contact us for more information.

Q: What are the payment terms for this product?

A: We accept T/T, D/P, and L/C.

Q: What is the supply ability for this product?

A: Our supply ability is 200 sets per month.
