| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE7 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociate |
| Packaging Details: | Master carton |
| Delivery Time: | 200 sets per monthes |
| Payment Terms: | T/T,D/P,L/C |
| Supply Ability: | 200 sets / month |
| Features:: | Suitable For IP5X, IP6X Dust Proof Grade Test Of Products. The Shell Is Made Of Domestic High Quality Steel Plate, The Surface Spraying Paint, Beautiful And Durable. The Inner Box And Sample Frame Are Made Of Stainless Steel Plate To Ensure No Rust For | Total Test Time:: | 0-9999999 Min (Adjustable) |
|---|---|---|---|
| Vibration Time:: | 0-999999S (adjustable) | Inner Box Size: (W * D * H): | 800 * 800 * 800mm (customizable) |
| Speed Of Evacuation:: | 0-60L / H (Adjustable) | Timeline Accuracy:: | ± 1 Second |
| Metal Screen Standard Line Via:: | 50um | Powder Spraying And Dust Removal Method:: | Free Dust Removal |
| High Light: | Sand Dust Test Chamber,9999999 Min Sand Dust Test Chamber |
||
The Sand Dust Test Chamber has a replaceable dust device at the bottom, which can easily replace the used dust. The box is installed with a vibration device, which can work automatically alternately to prevent dust from sticking to the wall of the box and condensation. There is a suction pipe in the box, and the vacuum action can be performed for the sample (the suction hole should be reserved for the sample).
The control system of the Sand Dust Test Box is using a 7-inch touch screen and Panasonic PLC, which can display the year, month, day, time, working time, etc. The controller can control the dust blower, dust vibration, and total test time respectively. This controller has the following arbitrary setting control functions:
The Sand Dust Test Chamber has a heating system that includes a heater installed in the circulating air duct to avoid dust condensation. The pipe wrap hoop mica sheet heating ring ensures the heat is safe and stable. It also comes with a vacuum system that is equipped with a vacuum pump, vacuum meter, air filter, flow meter, and connecting pipe.
The Sand Dust Test Chamber's external dimensions are customizable with a standard spacing between the lines of 75um. The standard dosage of talc powder is 2～4kg/m³, and the vacuum table range is 0- -10 Kpa (adjustable). With its excellent features and specifications, the Sand Dust Test Chamber is a reliable and efficient testing equipment for various tests on products.
Related keywords: Climate Sand Dust Test Chamber, Environmental Dust Proof Testing Machine, Environmental Sand Dust Simulation Test Chamber
| Product Name: | Environmental Sand Dust Simulation Test Chamber |
| Vibration Time: | 0-999999S (adjustable) |
| Standards: | Comply With IEC60529:1989 + A1:1999 + A2:2013, Degrees Of Protection Provided By Enclosures (IP Code). GB4208-2017 Article 13.4, Shell Protection Grade (IP Code), 13.5 And Figure 3. GB7000.1 Article 9.2.1 And No.9.2.2 And Fig. 6. |
| Power Supply for Test Samples: | 220V (or Specified) |
| Timeline Accuracy: | ± 1 Second |
| Inner Box Size (W*D*H): | 800*800*800mm (customizable) |
| Equipment Overview: | Application Fields: Outdoor Lamps, Household Appliances, Auto Parts And Other Electronic And Electrical Products. Equipment Use: The Main Function Of The Equipment Is To Test The Electronic And Electrical Products, Lamps, Electrical Cabinets, Electrical Components, Automobiles, Motorcycles And Their Components In The Physical And Other Related Properties Under The Climatic Conditions Of Simulating Dust. After The Test, To Judge Whether The Performance Of The Product Meets The Requirements Through Verification, So As To Facilitate The Design, Improvement, Verification And Factory Inspection Of The Product. |
| Safety Protection Function: | Leakage Protection, Short-circuit Protection |
| Features: | Suitable For IP5X, IP6X Dust Proof Grade Test Of Products. The Shell Is Made Of Domestic High Quality Steel Plate, The Surface Spraying Paint, Beautiful And Durable. The Inner Box And Sample Frame Are Made Of Stainless Steel Plate To Ensure No Rust For A Long Time. There Is A Transparent Observation Window (tempered Glass Is Made Of Material) On The Door, And LED Lights Are Installed In The Box To Observe The Internal Test Situation. The Bottom Of The Equipment Has A Replaceable Dust Device, Which Can Easily Replace The Used Dust. The Box Is Installed With A Vibration Device, Which Can Work Automatically Alternately To Prevent Dust From Sticking To The Wall Of The Box And Condensation. There Is A Suction Pipe In The Box, And The Vacuum Action Can Be Performed For The Sample (the Suction Hole Should Be Reserved For The Sample). Control System Of Sand Dust Test Box: Using 7-inch Touch Screen + Panasonic PLC, Can Display The Year, Month, Day, Time, Working Time, Etc. Control The Dust Blower, Dust Vibration And Total Test Time Respectively; This Controller Has The Following Arbitrary Setting Control Functions; A. Dust Blowing Time (stop And Blow): Arbitrarily Select The Time Setting Of Continuous And Periodic Dust Blowing; B.Vibration Time: Vibration And Stop Vibration Time Automatically Alternate; C. Preset Test Time: The Test Time Range Is 0-999999 Minutes; D. Power On: Off —— On —— Off. Heating System: A Heater Is Installed In The Circulating Air Duct To Avoid Dust Condensation, Pipe Wrap Hoop Mica Sheet Heating Ring, The Heat Is Safe And Stable; Vacuum System: Equipped With Vacuum Pump, Vacuum Meter, Air Filter, Flow Meter And Connecting Pipe. |
| Speed of Evacuation: | 0-60L / H (Adjustable) |
The IE7 series Environmental Sand Dust Simulation Test Chamber is perfect for a wide range of applications. It is ideal for testing electronic products, automotive parts, and other products that need to be protected from environmental dust and sand. This Climate Sand Dust Test Chamber is designed to simulate the harsh conditions that products may encounter during transportation and use.
The Environmental Dust Proof Testing Machine is highly effective in testing the durability and reliability of products. With adjustable vibration time of 0-999999S, it can simulate various conditions that products may encounter. The external dimensions of the product are (W * D * H): 1250 * 1050 * 1755mm, which can be customized to fit the specific needs of different users.
The IE7 series Environmental Sand Dust Simulation Test Chamber comes with standard test dust, Arizona DUST A2, with 2 Kg. It also has safety protection functions, including leakage protection and short-circuit protection. The product is highly efficient and reliable, making it perfect for use in various industries.
Overall, the IE7 series Environmental Sand Dust Simulation Test Chamber is an excellent investment for anyone looking to test the durability and reliability of their products. It is highly effective, efficient, and reliable, making it perfect for use in various industries.
The Sand Dust Test Chamber is designed to test electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their components in the physical and other related properties under the climatic conditions of simulating dust. After the test, it can judge whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification, and factory inspection of the product.
Order your Sand Dust Test Chamber from Infinity Machine today to ensure that your products meet the necessary performance requirements.

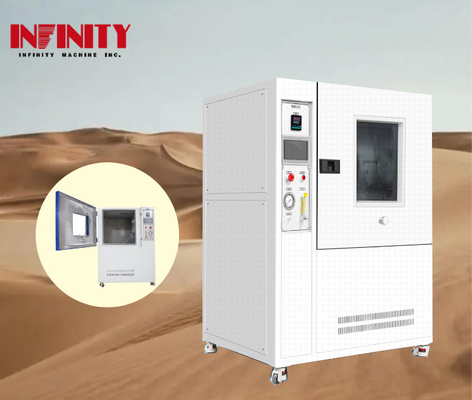

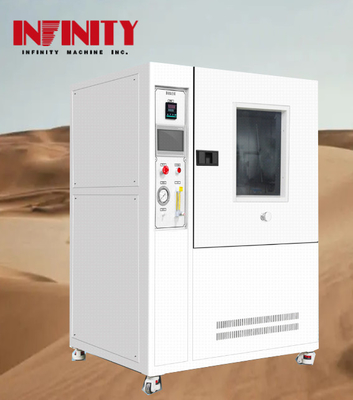

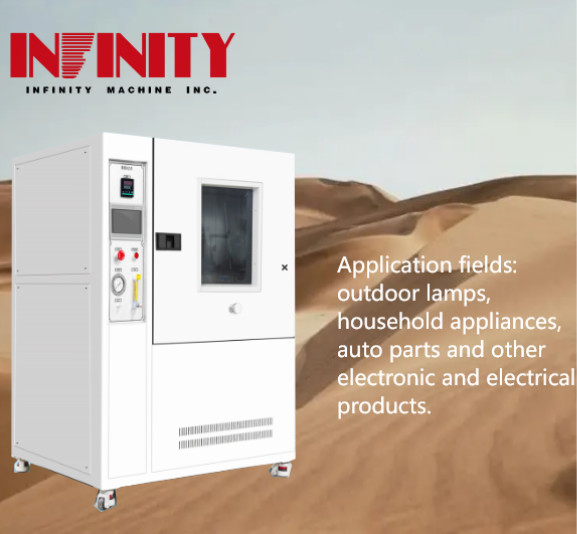

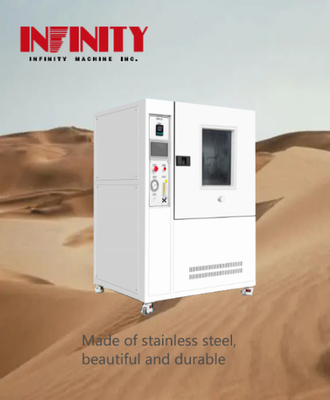

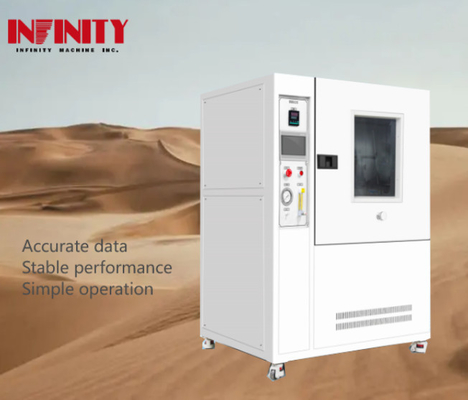

Device picture:
The Environmental Test Chamber product comes with comprehensive technical support and services. Our experienced team is available to assist with installation, calibration, and maintenance of the test chamber. We offer training and user manuals to ensure that our customers can operate the product effectively. Additionally, we provide repair and replacement services for any malfunctioning parts or components. Our goal is to ensure that our customers have a reliable and functional test chamber for their environmental testing needs.
Product Packaging:
The Environmental Test Chamber product will be packaged securely with foam padding and wrapped in a protective plastic covering to prevent any damage during transportation. The product will then be placed in a sturdy cardboard box with the necessary labels and markings for identification and handling.
Shipping:
The Environmental Test Chamber product will be shipped via a reputable carrier service with tracking information provided. The shipping cost will be calculated based on the delivery location and the weight and size of the package. Customers can expect to receive their orders within the estimated delivery timeframe provided by the carrier service.
