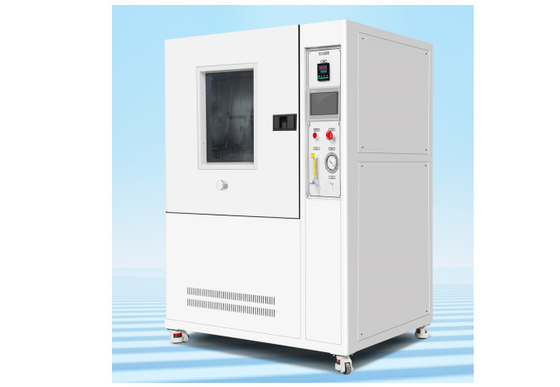

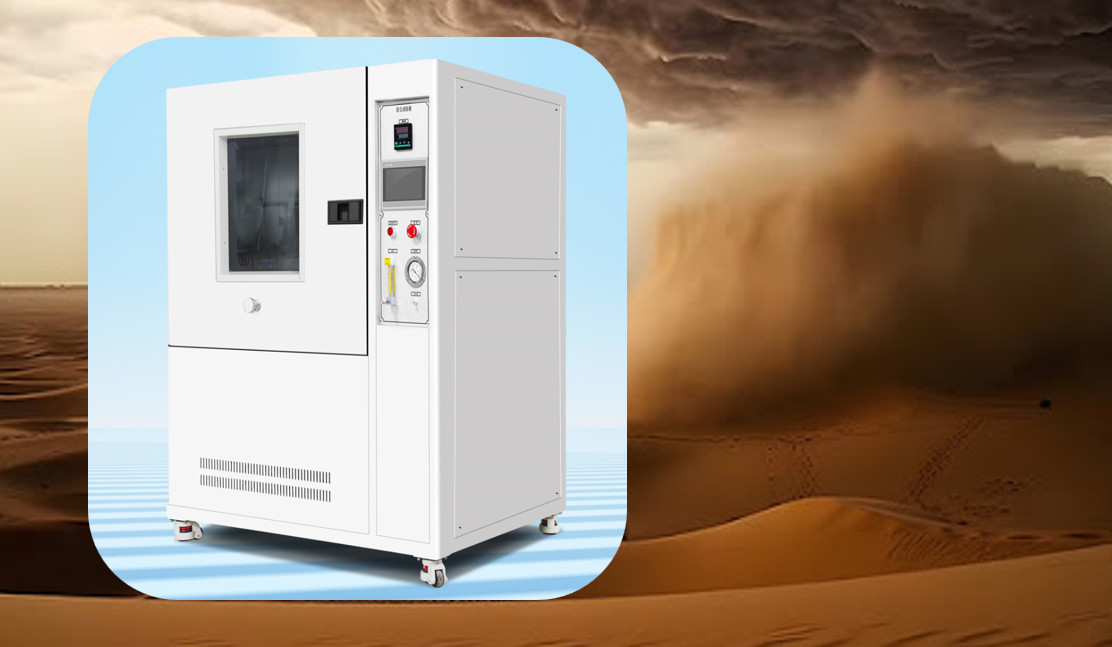

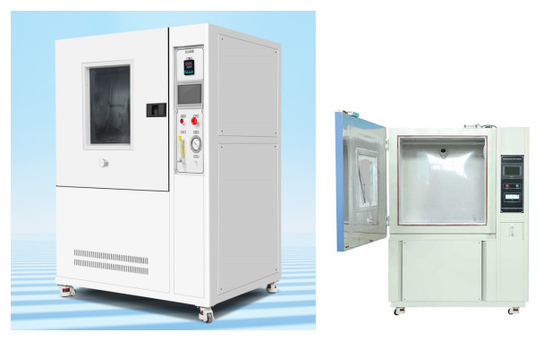

IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series

IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series

  • IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series
  • IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series
  • IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series
IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE7 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negociate
Packaging Details: Master carton
Delivery Time: 200sets per monthes
Payment Terms: T/T,D/P,L/C
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Product Name: Sand And Dust Test Chamber Metal Screen Standard Wire Diameter:: 50um
External Dimensions:: 1250*1050*1755mm Security Protection Functions:: Leakage Protection, Short Circuit Protection
Standard Dosage Of Talc Powder:: 2~4kg/m³ Vibration Time:: 0-999999S (adjustable)
Total Test Time:: 0-999999min (adjustable) Timing Accuracy:: ±1 Second

IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series

IPX5 IPX6 Blowing Sand And Dust Test Chamber Model IE7 Series 0

Product Description:

Environmental Test Chamber - IE7 Series

Application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.

Equipment usage: The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated dust climate conditions. test. After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.





Implementation standards:

  1. Comply with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)".
  2. GB4208-2017 "Enclosure Protection Level (IP Code)" Clauses 13.4 and 13.5 and Figure 3.
  3. GB7000.1 "Lamps - Part 1: General Requirements and Tests" clauses 9.2.1, 9.2.2 and the requirements in Figure



Features:

  1. Suitable for IP5X and IP6X dustproof grade testing of products.
  2. The shell is made of domestic high-quality steel plates, and the surface is spray-painted, making it beautiful and durable.
  3. The inner box, sample rack, etc. are all made of stainless steel plates to ensure that they will not rust after long-term use.
  4. There is a transparent observation window (made of tempered glass) on the door, and LED lighting is installed inside the box to facilitate observation of internal testing conditions.
  5. There is a dust-replaceable device at the bottom of the equipment, which can easily replace used dust.
  6. There is a vibration device installed in the box, which can automatically work alternately to prevent dust from sticking to the box wall and condensation.
  7. There is an air extraction tube inside the box, which can complete the vacuuming action on the sample (exhaust holes need to be reserved for the sample).
  8. Sand and dust test chamber control system: adopts 7-inch touch screen + Panasonic PLC, which can display the year, month, day, time, working hours, etc. The dust blower, dust vibration and total test time can be controlled separately; this controller has a variety of arbitrary setting control functions as follows;a. Dust blowing time (stop, blow): Continuous or periodic dust blowing can be set at any time;


Technical Parameters:

Environmental Test Chamber Technical Parameters
Product Name Sand And Dust Test Chamber
Model Number IE7 Series
External Dimensions 1250*1050*1755mm
Powder Spraying and Dust Reduction Methods Free Dust Fall
Test Dust Arizona DUST A2 (standard 2Kg)
Total Test Time 0-999999min (adjustable)
Standard Spacing Between Lines 75um
Metal Screen Standard Wire Diameter 50um
Timing Accuracy ±1 Second
Security Protection Functions Leakage Protection, Short Circuit Protection

Key words: Environmental Testing Equipment, Environmental Testers, Environmental Test Systems, Environmental Testing Chamber



Applications:

Environmental Test Chamber - Infinity Machine

The Environmental Test Chamber, also known as High and Low Temperature Test Chamber, is a specialized equipment designed for testing the environmental adaptability and reliability of various products. It is commonly used in industries such as electronics, automotive, aerospace, and military to simulate extreme environmental conditions and evaluate the performance of products under such conditions.

The Infinity Machine IE7 Series Environmental Test Chamber is proudly made in China and has obtained CE and ISO certifications. It is equipped with advanced features and technologies to ensure accurate and reliable testing results. With a minimum order quantity of 1 and negotiable price, it is a cost-effective solution for your testing needs.

Application Scenarios

The Environmental Test Chamber is widely used in various industries for product testing, research and development, and quality control purposes. Some of the common application scenarios include:

  • Electronics - to test the performance of electronic components and devices under extreme temperature, humidity, and vibration conditions.
  • Automotive - to evaluate the durability and reliability of automotive parts and systems under extreme weather conditions.
  • Aerospace - to simulate the harsh environment of outer space and test the performance of aerospace components and equipment.
  • Military - to assess the ability of military equipment to withstand extreme conditions and ensure its reliability in the field.
Product Attributes
  • Brand Name: Infinity Machine
  • Model Number: IE7 Series
  • Place of Origin: Made in China
  • Certification: CE, ISO
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Master carton
  • Delivery Time: 200 sets per month
  • Payment Terms: T/T, D/P, L/C
  • Supply Ability: 200 sets/month
  • Security Protection Functions: Leakage Protection, Short Circuit Protection
  • Timing Accuracy: ±1 Second
  • Equipment Power Supply: 220V 50Hz 1.5KW (or Designated)
  • Powder Spraying and Dust Reduction Methods: Free Dust Fall
  • Vibration Time: 0-999999S (adjustable)

With its high precision, reliable performance and user-friendly features, the Infinity Machine Environmental Test Chamber is the ideal equipment for all your environmental testing needs. Contact us now to learn more and to place an order.



Customization:

Customization Service for Environmental Test Chamber - Infinity Machine

Brand Name: Infinity Machine
Model Number: IE7 Series
Place of Origin: Made In China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Master carton
Delivery Time: 200 sets per month
Payment Terms: T/T, D/P, L/C
Supply Ability: 200 sets / month
Product Name: Sand and Dust Test Chamber
Vacuum Gauge Range: 0—10Kpa (adjustable)
Test Dust: Arizona DUST A2 (standard 2Kg)
Equipment Power Supply: 220V 50Hz 1.5KW (or designated)
Powder Spraying and Dust Reduction Methods: Free Dust Fall

At Infinity Machine, we understand the importance of reliable and accurate environmental testing for your products. That's why we offer a comprehensive customization service for our Environmental Test Chambers. As a leading manufacturer in Environmental Test Systems, we are committed to providing top-quality products and exceptional services to meet your specific testing needs.

With our IE7 Series Environmental Test Chamber, you can expect superior performance and durability. Our chambers are made in China and are certified with CE and ISO standards. We have a minimum order quantity of 1 and our price is open for negotiation. Our packaging is designed to ensure safe delivery in a master carton. With a monthly supply ability of 200 sets, we can meet your testing demands in a timely manner.

Our Sand and Dust Test Chamber is designed for testing products in harsh environmental conditions. The vacuum gauge range is adjustable from 0 to 10Kpa, and it uses Arizona DUST A2 (standard 2Kg) for testing dust. The equipment power supply is 220V 50Hz 1.5KW and can be customized upon request. Our chambers also have powder spraying and dust reduction methods using Free Dust Fall to ensure accurate and reliable test results.

Choose Infinity Machine for your environmental testing needs, and let us help you ensure the quality and durability of your products. Our commitment to providing top-quality products and exceptional services has made us a trusted choice for Environment Test Chamber customization. Contact us today for more information.



Packing and Shipping:

Packaging and Shipping
Packaging

The Environmental Test Chamber will be carefully packaged to ensure its safe arrival to the customer. It will be placed in a sturdy wooden crate and securely strapped down to prevent any movement during shipping.

The product will also be wrapped in protective foam to prevent any potential damage during transportation.

All necessary accessories and user manuals will be included in the packaging.

Shipping

We offer worldwide shipping for the Environmental Test Chamber. Shipping costs will vary depending on the destination and chosen shipping method.

The estimated delivery time will be provided to the customer upon purchase. We will also provide a tracking number so the customer can monitor the status of their shipment.

In addition, we offer expedited shipping options for customers who require the product to be delivered urgently.

For international shipments, customers are responsible for any customs or import duties that may apply.

Please contact us for any specific shipping requests or inquiries.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Infinity Machine.
  • Q: What is the model number of this product?
    A: The model number of this product is IE7 Series.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: What certifications does this product have?
    A: This product is certified by CE and ISO.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1.
