| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 44 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling. At The Same Time, The Side Has The Water Level Observation Window For Convenient Cleaning. Using Special Glass Nozzle, Spray Water Pipe With Saline Filter, Can Be Used For 4000 Ho | Open Cover Way: | Manual Open Cover & One-click Automatic Open-cover |
|---|---|---|---|
| Temperature Uniformity: | ≦1.0℃ | Application: | Widely Used In Electronics, Electrician And Automobile, Motorcycle, Hardware, Plastic, FPC Soft Board, And Other Industry Products After Electroplating, Spray Paint, Paint, Anode Treatment For Salt Spray Corrosion Test, To Evaluate Its Surface Corrosion Re |
| Spray Way: | Continuous Spray + Intermittent Spray | Temperature Range: | RT+5℃~60℃ |
| Water Filling Methods: | Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier | Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm |
| High Light: | Continuous Spray Salt Spray Test Chamber,Intermittent Spray Salt Spray Test Chamber |
||

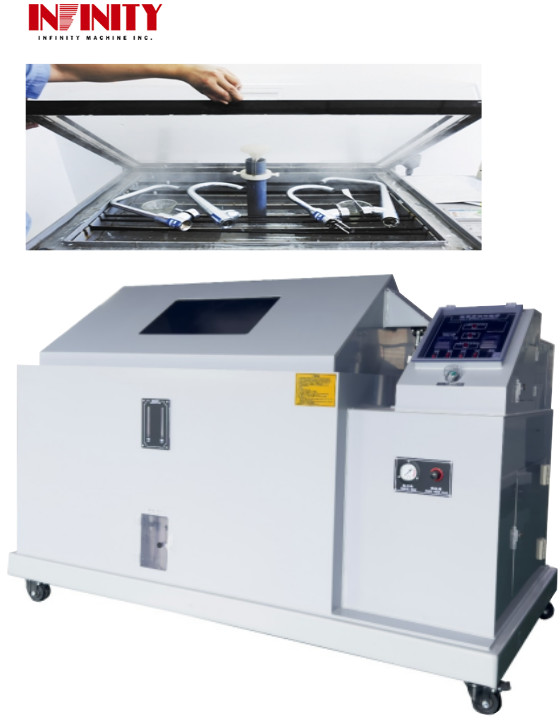

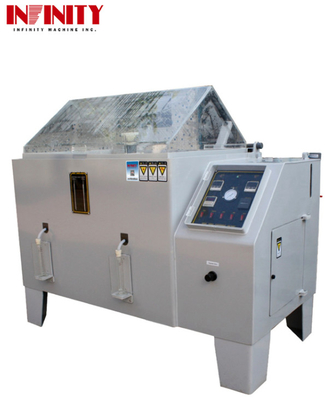

The Salt Spray Test Chamber (New) offers two water filling methods to choose from: Automatic and Manual Dual Water Supply Mode. The Automatic Water Inlet comes with a set of water purifier, ensuring the purity of the water used for testing.
The Salt Spray Test Chamber (New) is designed to simulate the atmosphere salt droplets diffusion system, making it an ideal choice for corrosion testing in various industries such as electronics, electrician, automobile, motorcycle, hardware, plastic, and FPC soft board. It is used to evaluate the surface corrosion resistance of products after processes like electroplating, spray painting, paint, and anode treatment.
The Salt Spray Test Chamber (New) is available in five different sizes to cater to different testing needs:
The Salt Spray Test Chamber (New) is available in the following models:
The Salt Spray Test Chamber (New) is equipped with the following safety protection devices:
The Salt Spray Test Chamber (New) offers the following key features:
| Model | I E4460L | I E4490L | I E44120L | I E44160L | I E44200L | |
| Laboratory temperature range | RT+5℃~60℃ | |||||
| Pressure barrel temperature range | RT+5℃~70℃ | |||||
| Temperature fluctuation | ±0.5℃ | |||||
| Temperature uniformity | ≦1.0℃ | |||||
| Salt mist settlement | 1～3ml/h.80cm2 | |||||
| Spray pressure | 1.00±0.01kgf/cm² | |||||
| Spray way | Continuous spray + intermittent spray | |||||
| Valid test capacity | 150L | 270L | 576L | 800L | 1200L | |
| Internal box size:WxHxD(mm ) | 600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
| Out box size:WxHxD(mm ) | 1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2730*1250*1400 | |
| Box structure |
● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||
| Specimen holder | The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection device |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and more
Supply Ability: 200 sets / month
Test Standards:
Box Structure:
Models:
Salt spray chamber with fog collector, Salt spray testing machine, Salt spray test equipment, Salt spray test cabinet, Salt spray test chamber, Salt spray corrosion test chamber, Salt spray corrosion testing machine, Salt spray corrosion test equipment, Salt spray corrosion test cabinet, Salt spray corrosion test chamber manufacturer, Salt spray test machine, Salt spray test chamber supplier, Salt spray test equipment manufacturer, Salt spray test cabinet supplier, Salt spray testing equipment manufacturer, Salt spray testing cabinet supplier
1. The salt spray test chamber (new) will be packed in a sturdy wooden case to ensure safe transportation.
2. The inner chamber and all components will be securely wrapped in foam and bubble wrap to prevent any damage during shipping.
3. The wooden case will be sealed and labeled with clear shipping information, including product name, model number, and destination address.
4. We will arrange for the chamber to be shipped via a reliable and reputable shipping company, ensuring timely and safe delivery.
5. Upon arrival, please inspect the package and chamber for any damage that may have occurred during shipping. If any damage is found, please contact us immediately.
6. We also offer the option for customized packaging and shipping according to your specific requirements.
