Product Description:

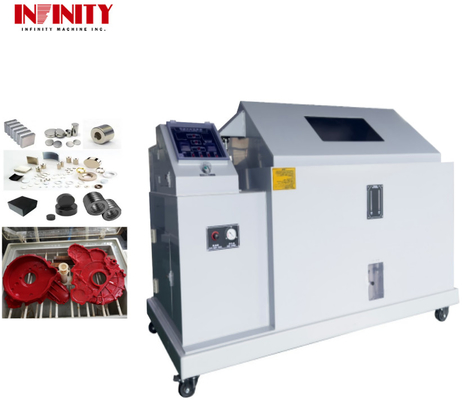

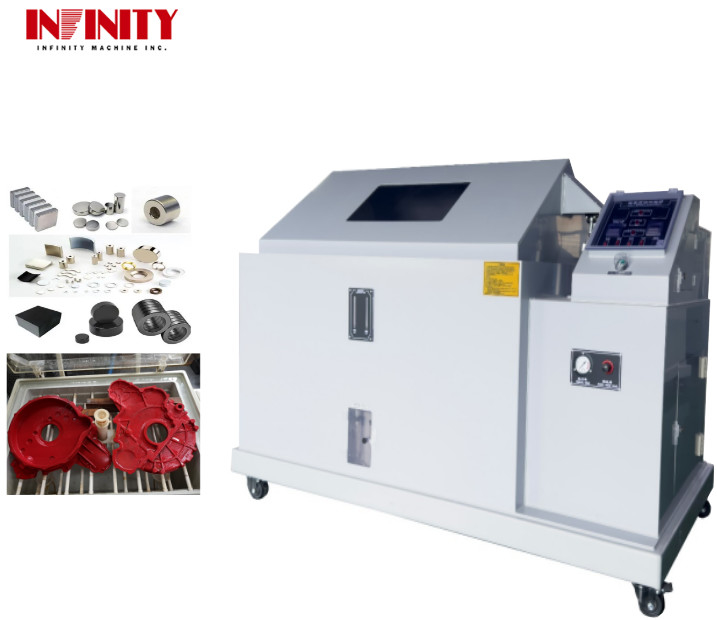

The Salt Spray Test Chamber is a high-quality testing equipment designed for conducting salt spray corrosion resistance testing. This chamber is equipped with a fog collector to ensure accurate and reliable test results. It is an essential tool for evaluating the corrosion resistance of materials and coatings in various industries.
Key Features:
- Temperature Range: RT+5℃~70℃
- Water Filling Methods: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
- Box Structure:
- Test Room And Outer Boxes: The inner and outer boxes of the laboratory adopt a grade PVC polyethylene board, with a thickness of 8mm, providing acid and base resistance and temperature resistance up to 78℃.
- Laboratory Sealing Cover: The laboratory sealing cover is made of a class PVC plate, with a thickness of 8mm and a surrounding reinforcement of 13mm, offering acid and alkali resistance and temperature resistance of 78℃.
- Power Supply: AC220V;50Hz;1.5KW, AC 220;V50Hz;2.5KW, AC 220;V50Hz;3.5KW, AC 220;V50Hz;4.5KW, AC 380;V50Hz;5KW
- Open Cover Way: Manual Open Cover & One-click Automatic Open-cover
The Salt Spray Test Chamber is designed to meet the needs of industries requiring salt spray corrosion testing, such as automotive, aerospace, coatings, and electronics. The chamber provides a controlled environment for conducting accurate and repeatable tests to evaluate the performance of materials and coatings under corrosive conditions.
With its versatile temperature range and dual water supply modes, this chamber offers flexibility and convenience for conducting various types of salt spray corrosion tests. The automatic water inlet with a water purifier ensures clean and consistent water supply for reliable test results.
Equipped with a high-quality PVC polyethylene board construction, the inner and outer boxes of the laboratory provide robust protection against corrosion and temperature extremes. The laboratory sealing cover further enhances the durability and reliability of the chamber, making it suitable for long-term use in demanding testing environments.
The power supply options available for the Salt Spray Test Chamber allow for efficient operation and flexibility to meet different testing requirements. Whether using AC220V or AC380V, the chamber can deliver the necessary power for conducting accurate and reliable salt spray corrosion tests.
The open cover ways, including manual open cover and one-click automatic open-cover, provide convenience and ease of use during testing operations. Users can choose the preferred method based on their specific testing needs, ensuring efficient and seamless testing procedures.
In conclusion, the Salt Spray Test Chamber is a reliable and efficient solution for conducting salt spray corrosion tests in various industries. With its advanced features, durable construction, and versatile capabilities, this chamber is an essential tool for evaluating the corrosion resistance of materials and coatings. Trust the Salt Spray Test Chamber with fog collector for accurate and precise salt fog spray corrosion testing results.
Features:
- Product Name: Salt Spray Test Chamber
- Test Standards:
- GB/ T20854-2007/ ISO14993-2001 Dry And Wet Salt Spray Test
- GB-T5170.8-2008_ Inspection Method Of Environmental Test Equipment For Electrical And Electronic Products - Salt Spray Test Equipment
- GJB150.11A-2009 Military Equipment Laboratory Environmental Test Method Salt Spray Test
- MIL-STD-810 Method 509.5 Salt Spray Test Standard
- GBT2423.17-2021 Salt Spray Test Method
- GB-T2423.18-2021 Sodium Chloride Alternating Salt Spray Test Method
- GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Humidity And Heat Test Method
- GBT2423_4-2008 Wet And Hot Alternating Test Method
- GMW-14872 Automotive Cyclic Corrosion Test
- IEC60068-2-52-2017 Environmental Test Part 2-25 Test Kb Cycle Salt Spray (sodium Chloride Solution)
- IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Regulations. Part 2: Tests. Section 11: Test Ka: Salt Spray
- ASTM B117-2016 Salt Spray Test Standard
- ISO 9227-2006 Artificial Atmosphere Corrosion Salt Spray Test
- SAE J2334 Standard For Salt Spray Corrosion Test Of Coatings
- GBT 10125-2021 Artificial Atmosphere Corrosion Test Salt Spray Test
- PV1078 Volkswagen Salt Spray Test Standard
- Equipment Design Principle: Comprehensive Cyclic Salt Fog Chamber Is Designed To Simulate And Enhance The Impact Of An Outdoor Atmosphere Contaminated With Salt And Capable Of Accelerating Corrosion On Metal Materials Exposed To Such Conditions. The Equipment Includes Methods For Cyclically Exposing Samples To Salt Spray, Dry, And Humid-heat Environments. Compared To Traditional Accelerated Corrosion Tests, Such As The Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), And Copper-Acetate Salt Spray Test (CASS), The Greatest Advantage Of This Equipment Is Its Ability To Better Reproduce Corrosion Occurring In Outdoor Salt-contaminated Environments.
- Temperature Uniformity: ≦1.0℃
- Temperature Range: RT+5℃~70℃
- Models: IE4160L, IE4190L, IE41120L, IE41160L, IE41200L
Technical Parameters:
| Spray Way |
Continuous Spray + Intermittent Spray |
| Valid Test Capacity |
150L, 270L, 576L, 800L, 1200L |
| Safety Protection Devices |
● When Low Brine, Automatically Cut Off The Heater Power Supply.
● Over-temperature, Automatically Cut Off The Heater Power Supply.
● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. |
| Application |
Salt Fog Accelerated Corrosion Test Chamber Is |
| Temperature Uniformity |
≦1.0℃ |
| Specimen Holder |
The Basket Holder Of The Laboratory Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent. |
| Test Standards |
1. GB/ T20854-2007/ ISO14993-2001 Dry And Wet Salt Spray Test
2.GB-T5170.8-2008_ Inspection Method Of Environmental Test Equipment For Electrical And Electronic Products ___ Salt Spray Test Equipment
3.GJB150.11A-2009 Military Equipment Laboratory Environmental Test Method Salt Spray Test
4.MIL-STD-810 Method 509.5 Salt Spray Test Standard
5.GBT2423.17-2021 Salt Spray Test Method
6.GB-T2423.18-2021 Sodium Chloride Alternating Salt Spray Test Method
7.GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Humidity And Heat Test Method
8. GBT2423_4-2008 Wet And Hot Alternating Test Method
9.GMW-14872 Automotive Cyclic Corrosion Test
10.IEC60068-2-52-2017 Environmental Test Part 2-25 Test Kb Cycle Salt Spray (sodium Chloride Solution)
11.IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Regulations. Part 2: Tests. Section 11: Test Ka: Salt Spray
12.ASTM B117-2016 Salt Spray Test Standard
13.ISO 9227-2006 Artificial Atmosphere Corrosion Salt Spray Test
14.SAE J2334 Standard For Salt Spray Corrosion Test Of Coatings
15.GBT 10125-2021 Artificial Atmosphere Corrosion Test Salt Spray Test
16.PV1078 Volkswagen Salt Spray Test Standard |
| Equipment Design Principle |
Comprehensive Cyclic Salt Fog Chamber Is Designed To Simulate And Enhance The Impact Of An Outdoor Atmosphere Contaminated With Salt And Capable Of Accelerating Corrosion On Metal Materials Exposed To Such Conditions. The Equipment Includes Methods For Cyclically Exposing Samples To Salt Spray, Dry, And Humid-heat Environments. Compared To Traditional Accelerated Corrosion Tests, Such As The Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), And Copper-Acetate Salt Spray Test (CASS), The Greatest Advantage Of This Equipment Is Its Ability To Better Reproduce Corrosion Occurring In Outdoor Salt-contaminated Environments. |
| Products |
Corrosion Resistance Testing Machine, Cycle Salt Fog Test Machine, Cycle Salt Spray Test Machine, Cyclic Salt Fog Chamber, Cyclic Salt Spray Chamber, Cyclic Salt Fog Test Chamber, Cyclic Salt Spray Test Chamber |
| Power Supply |
AC220V;50Hz; AC 380;50Hz; or specified |
Applications:
The INFINITY IE 41 Series Salt Spray Test Chamber is a versatile and reliable equipment designed to meet the needs of various industries for conducting salt fog spray corrosion tests. This product is proudly MADE IN CHINA and comes with ISO certification, ensuring its quality and performance.
With a minimum order quantity of 1 and negotiable pricing, this salt mist spray test chamber is suitable for both small-scale and large-scale testing requirements. The packaging details include standard export wooden carton for safe transportation, with a delivery time of 25~50 days after order confirmation.
Customers can benefit from the comprehensive cyclic salt fog chamber designed to simulate and enhance the impact of outdoor atmospheres contaminated with salt, accelerating corrosion on metal materials. This equipment offers cyclic exposure to salt spray, dry, and humid-heat environments, replicating real-world conditions effectively.
The IE 41 Series features a PT100 temperature sensor for high precision and low maintenance, making it a reliable choice for corrosion resistance testing chambers. It can be customized according to customer needs and offers energy-saving design for efficient testing processes.
Models available include IE4160L, IE4190L, IE41120L, IE41160L, and IE41200L, catering to different testing requirements. The equipment meets various test standards such as GB/T20854-2007, MIL-STD-810, ASTM B117-2016, and more, ensuring accurate and reliable test results.
With a temperature range of RT+5℃~70℃, this salt spray corrosion resistance testing chamber is suitable for a wide range of applications across industries. It can operate independently for salt spray, drying, condensation, hot and humid tests, providing a seamless testing experience.
Order your INFINITY IE 41 Series Salt Spray Test Chamber today and experience the superior quality and performance it offers for conducting salt fog spray corrosion tests with precision and efficiency.
