High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min

High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min

  • High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min
  • High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min
  • High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min
High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IE 41 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Features: Special Designs Can Be Made According To Customer Needs. PT 100 Temperature Sensor, With High Precision And Low Maintenance. According To The Customer Installation Place Can Be Different Manually And Automatically Add Water, Easy To Use. Adjustment Gr Models: I E4160L; I E4190L; I E41120L; I E41160L; I E41200L
Relative Humidity Fluctuation: ±2%R.H Test The Valid Content Product: 150L 270L 576L 800L 1200L
Safety Protection Device: Refrigeration System; Test Box; Heating System; Other Humidity Deviation: ±2%R.H
Temperature Range: 5℃ ~ +85℃ Weight (Kg): About 300 About 400 About 500 About 600 About 700

High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min   IE41

High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min 0Product Description:

Salt Spray Test Chamber (New)

Water filling method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier

Features:

  • Special designs can be made according to customer needs.
  • PT 100 temperature sensor, with high precision and low maintenance.
  • According to the customer installation place, can be different manually and automatically add water, easy to use.
  • Adjustment greenhouse and laboratory independent, the middle through the air door control connection, perfect structure, maintenance more simple.
  • Energy-saving design, controlled separately according to the test.
  • Can do salt spray neutral test, corrosion resistance test, drying test, moisture test, static test, can also do salt spray, dry and wet, static mixing test, automatic control.
  • Can automatically cycle spray, continuous spray, timing spray. Do not need to move products, can realize salt spray, wet heat, drying automatic circulation test, easy to use.

Test standards:

  • GB/T20854-2007/ISO14993-2001 Dry-wet Salt Spray Test
  • GB-T5170.8-2008_ Inspection Method of Electrical and Electronic Products Environmental Test Equipment_Salt Spray Test Equipment
  • GJB150.11A-2009 Environmental Test Method of Military Equipment Laboratory Salt Spray Test
  • GBT2424.17-2008 Test Method for Salt Spray
  • GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
  • GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
  • GBT2423_4-2008 Test Method for Humid Heat Mixing
  • IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (Sodium Chloride Solution)
  • IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

Safety protection device: Refrigeration System; Test Box; Heating System; Other

Temperature fluctuation: ±0.5℃

Key words: Salt fog spray test chamber, Salt fog spray corrosion test chamber, Salt fog spray test chamber price, Salt fog spray test chamber manufacturer, Salt fog spray test chamber supplier

High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min 1

Applications:

model I E4160L I E4190L I E41120L I E41160L I E41200L
Temperature range 5℃ ~ +85℃
Temperature departure ±1℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦2.0℃
Humidity range 20~100%R.H
Humidity deviation ±2%R.H
Relative humidity fluctuation ±2%R.H
Humidity uniformity ±3%R.H

Rising and cooling rate

RT →+85℃≤40 min

RT→+0℃≤30 min

Salt spray (35℃) dry (60℃.20~30%RH)≤30 min.

Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min.

Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).

Effective inner capacity 150L 270L 576L 800L 1200L

Internal box size:

WxHxD(mm )

600*500*500 900*600*600 1200*1000*600 1600*1000*600 2000*1000*600

Out box size:

WxHxD(mm )

1780*950*1300 2080*1050*1350 2380*1450*1450 2780*1450*1450 3180*1450*1450
Box structure

● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees.

● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees.

● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device,

Convenient clear observation of the test, temperature resistance of about 100 degrees.

Water filling method Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier

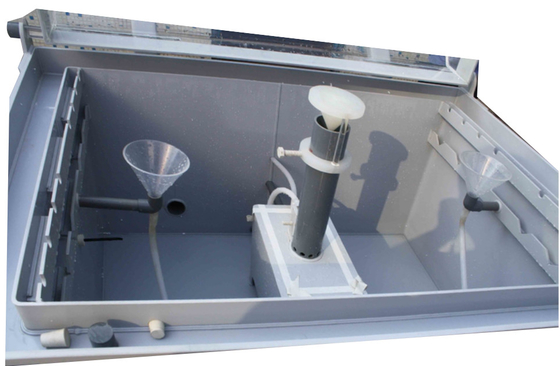

specimen holder

● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent.

● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing.

refrigeration compressor France taikang fully closed compressor
cooling medium Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
Condenser mode air-cooled
Safety protection device refrigeration system

Compressor overheating protection

Compressor overcurrent protection

Over pressure and low pressure protection

Condensate fan overheating protection

test box

Adjustable overtemperature protection

Extreme overtemperature protection of the air conditioning channel

Fan, motor superheater relay protection

heating system

Heating pipe dry burning protection alarm

Abnormal water supply alarm

Abnormal drainage alarm

other

earth leakage protection

Overload and short-circuit protection

The power supply lacks the reverse phase protection function

weight (Kg) About 300 About 400 About 500 About 600 About 700
Power AC380V;50Hz;7KW AC380;V50Hz;9KW AC380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW

Test Standards:
  • GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
  • GB-T5170.8-2008 Inspection Method Of Electrical And Electronic Products Environmental Test Equipment Salt Spray Test Equipment
  • GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test
  • GBT2424.17-2008 Test Method For Salt Spray
  • GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
  • GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
  • GBT2423_4-2008 Test Method For Humid Heat Mixing
  • IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution)
  • IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray
Product Description:

The INFINITY Salt Spray Test Chamber (New) is designed for testing the corrosion resistance of various materials and coatings, in order to evaluate the durability and quality of products. It is a necessary equipment for research and development, production, and quality control in industries such as electronics, automobiles, metal, and surface treatment.

This salt spray chamber is equipped with a fog collector, which can effectively collect and discharge the salt spray fog, ensuring a stable and uniform concentration of the salt spray in the chamber. The environmental salt spraying tester is made in China, meeting international standards and certified with CE and ISO.

Application:

The Salt Spray Corrosion Test Chamber is applicable to various tests, including salt spray corrosion test, humidity test, temperature test, and more. It is commonly used in industries such as electronics, automobiles, metal, and surface treatment, to evaluate the corrosion resistance of materials and coatings, and to improve the product quality and durability.

Key Features:
  • Equipped with a fog collector for stable and uniform concentration of salt spray
  • Easy to operate with user-friendly control panel
  • Accurate and precise control of temperature and humidity
  • Large test space with different size options
  • Long service life with high-quality materials and advanced technology
High Capacity Salt Spray Test Chamber 150L with Fast Cooling Rate and RT→ 85C≤40 Min 2
  • Product Description: The INFINITY Salt Spray Test Chamber (New) is designed for testing the corrosion resistance of various materials and coatings, in order to evaluate the durability and quality of products. It is a necessary equipment for research and development, production, and quality control in industries such as electronics, automobiles, metal, and surface treatment.
  • Application: The Salt Spray Corrosion Test Chamber is applicable to various tests, including salt spray corrosion test, humidity test, temperature test, and more. It is commonly used in industries such as electronics, automobiles, metal, and surface treatment, to evaluate the corrosion resistance of materials and coatings, and to improve the product quality and durability.
  • Key Features:
    • Equipped with a fog collector for stable and uniform concentration of salt spray
    • Easy to operate with user-friendly control panel
    • Accurate and precise control of temperature and humidity
    • Large test space with different size options
    • Long service life with high-quality materials and advanced technology
Packaging and Delivery:

The INFINITY Salt Spray Test Chamber (New) is packaged with clear sheet, sponge, and wood carton, ensuring the safety and protection of the equipment during transportation. The delivery time is 20-30 days after order confirmed, and the payment terms can be negotiated, including TT, PAYPAL, Moneygram, and more. We have a supply ability of 200 sets per month, ensuring timely delivery to our customers.

Conclusion:

The INFINITY Salt Spray Test Chamber (New) is a high-quality and reliable equipment for testing the corrosion resistance of materials and coatings. It is designed with advanced technology and meets international standards, making it suitable for various industries. With its user-friendly features, accurate control, and large test space, it is a necessary equipment for research, production, and quality control. Contact us today to learn more about this environmental salt spraying tester and improve the quality and durability of your products.



Customization:

Brand Name: INFINITY
Model Number: IE 41 Series
Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Humidity Range: 20~100%R.H

Tested Product Capacity: 150L 270L 576L 800L 1200L

Box Structure:

  • Test Chamber Box: Made of 10mm thick PP Polypropylene Board, with temperature resistance of approximately 100 degrees.
  • Laboratory Outer Box: Made of 10mm thick PP Polypropylene Board, with temperature resistance of approximately 100 degrees.
  • Laboratory Sealing Cover: Made of 10mm thick PP Polypropylene Plate, with one-button automatic open cover, transparent observation window, and defogging device for clear observation of the test. Temperature resistance of approximately 100 degrees.

Relative Humidity Fluctuation: ±2%R.H

Temperature Uniformity: ≦2.0℃

Key Words: Salt Spray Corrosion Test Chamber, Salt Fog Spray Test Chamber, Salt Spray Testing Machine, Salt Spray Test Equipment



Packing and Shipping:

Packaging and Shipping

Our salt spray test chamber is carefully packaged and shipped to ensure its safe delivery to your location. The packaging process consists of the following steps:

  • The chamber is securely wrapped in protective materials to prevent any damage during transportation.
  • It is then placed in a sturdy wooden crate to provide additional protection.
  • The crate is sealed and labeled with the necessary shipping information.
  • The chamber is then loaded onto a truck for transportation to the desired location.

We use reliable and trusted shipping companies to ensure timely and safe delivery of our products.

Upon arrival, the chamber can be easily unpacked and assembled with the help of our detailed instruction manual.

We take great care in packaging and shipping our products to guarantee their quality and integrity upon delivery.
