| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 42 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Equipped With A 7-inch LCD Touch Screen, Independently Developed Applications, With A P.I. D Automatic Calculus, Chinese, English Conversion, With Temperature Setting, Time Setting, Spray, Fog Removal And Other Functions. The Test Drug Supplement Is Hidd | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Pressure Barrel Temperature Range: | RT+5℃~70℃ | Temperature Range: | RT+5℃~60℃ |
| Box Structure: | ● Test Room And Outer Box: The Inner And Outer Box Of The Laboratory Adopts A Class PP Polyethylene Dilute Board, The Thickness Of The Whole Machine Is 10mm, Acid And Base Resistance And Temperature Resistance To 90℃. ● Laboratory Sealing Cover: Laboratory | Test Standards: | GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm |
| Spray Way: | Continuous Spray + Intermittent Spray | Power: | About 300 About 400 About 500 About 600 About 700 |

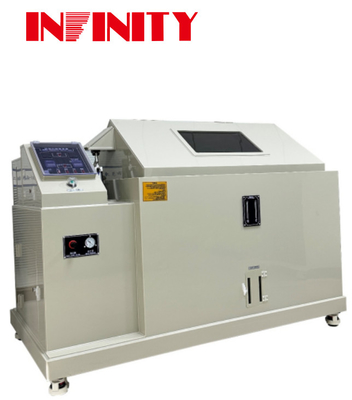

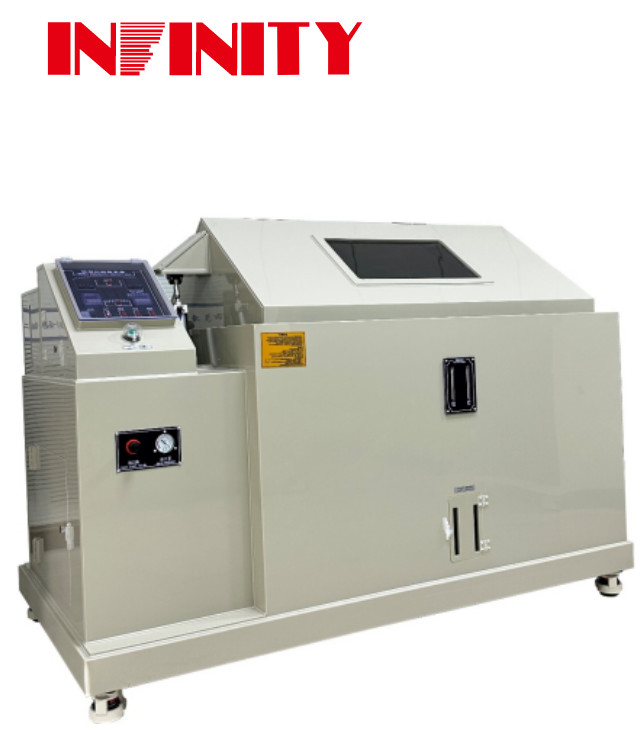

The Salt Spray Test Chamber (New) is a high-quality equipment designed to simulate the effects of salt spray corrosion on various products. It is widely used in industries such as electronics, electricians, automobiles, motorcycles, hardware, plastic, and FPC soft boards. This chamber is specifically designed to test the surface corrosion resistance of products after processes like electroplating, spray painting, anode treatment, and more.
Overall, the Salt Spray Test Chamber (New) is a highly efficient and reliable equipment for conducting corrosion resistance tests. With its advanced design and features, it is a valuable tool for industries looking to ensure the quality and durability of their products.
Specification parameters:
| Model | I E4260L | I E4290L | I E42120L | I E42160L | I E42200L | |
| Laboratory Temperature Range | RT+5℃~60℃ | |||||
| Pressure Barrel Temperature Range | RT+5℃~70℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Temperature Uniformity | ≦1.0℃ | |||||
| Salt Mist Settlement | 1～3ml/h.80cm2 | |||||
| Spray Pressure | 1.00±0.01kgf/cm² | |||||
| Spray Way | Continuous spray + intermittent spray | |||||
| Valid Capacity for Testing | 150L | 270L | 576L | 800L | 1200L | |
|
WxHxD(mm ) |
600*450*400 | 900*600*500 | 1200*800*600 | 1600*1000*500 | 2000*1000*600 | |
|
Out box size: WxHxD(mm ) |
1050*700*950 | 1400*850*1100 | 2080*1050*1300 | 2430*1250*1400 | 2830*1250*1400 | |
| Box structure |
● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃ |
|||||
| Open cover way | Manual open cover | One-click automatic open-cover | ||||
| Water filling methods | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | |||||

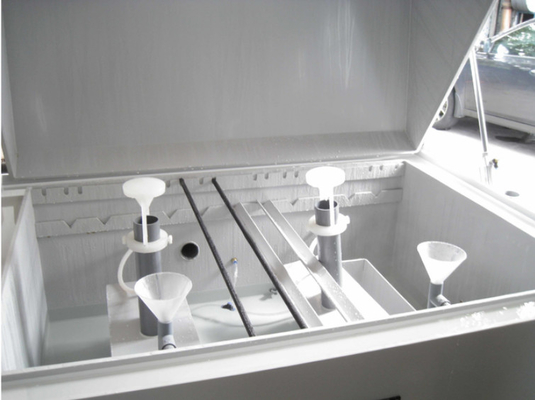

| Specimen holder | In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. | |||||
| Safety protection devices |
● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply. |
|||||
| Power | AC220V;50Hz;1.5KW | AC 220;V50Hz;2.5KW | AC 220;V50Hz;3.5KW | AC 220;V50Hz;4.5KW | AC 380;V50Hz;5KW | |
Applications:The Salt Spray Test Chamber (New), also known as the Salt Spray Corrosion Testing Equipment, is designed and manufactured by INFINITY, a leading brand in the industry. This testing machine is perfect for corrosion testing and meets international standards of CE and ISO certification. Made in China, this high-quality equipment guarantees accurate results and reliable performance.
This series of equipment is designed to simulate the atmosphere salt droplets diffusion system and is widely used in electronics, electrical, automobile, motorcycle, hardware, plastic, FPC soft board, and other industries. It is used for salt spray corrosion test after electroplating, spray painting, paint, and anode treatment to evaluate the surface corrosion resistance.
Our salt spray test chamber (new) is carefully packaged and shipped to ensure its safe arrival. The packaging material used is sturdy and able to withstand rough handling during transportation.
Each chamber is first wrapped in a layer of protective film to prevent any scratches or damage to the surface. It is then placed in a customized foam box to provide additional protection and prevent any movement during transit.
The foam box is then placed in a corrugated cardboard box, which is sealed with strong packing tape. This outer box is labeled with the product name, model number, and shipping information for easy identification.
For international orders, the chamber is packed and shipped in compliance with all necessary regulations and requirements. We work closely with our shipping partners to ensure that the product reaches its destination on time and in perfect condition.
Customers can also choose to add additional shipping insurance for extra peace of mind.
Once the package is ready, it is loaded onto a secure and reliable carrier and shipped to the designated address. Tracking information will be provided to the customer so they can monitor the delivery status of their order.
At our company, we take great care in packaging and shipping our products to ensure their safe arrival and customer satisfaction.
