Product Overview

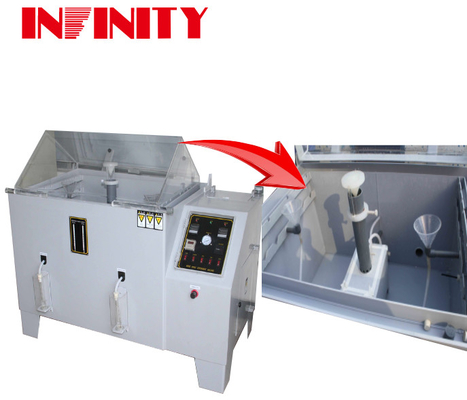

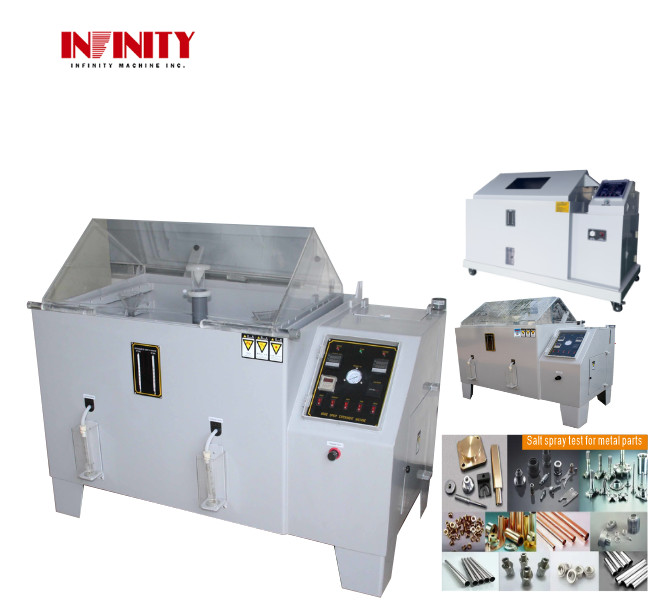

Salt spray test chamber (new) is a state-of-the-art equipment designed for testing the corrosion resistance of various materials and coatings under harsh salt spray conditions. It is an essential tool for quality control and research and development in industries such as automotive, aerospace, marine, and electronics.

The test drug supplement in this chamber is hidden, eliminating the need for opening the cover and filling the chamber manually. Additionally, the side of the chamber has a water level observation window, making it convenient for cleaning. The chamber uses a special glass nozzle and saline filter in the spray water pipe, ensuring that there is no crystalline salt obstruction even after 4000 hours of continuous use.

The control components of this chamber are carefully selected from well-known brands to ensure reliable and accurate performance. The unique design of upper and lower water and electricity separation reduces safety risks and prevents circuit corrosion and aging, thereby prolonging the service life of electrical components and making maintenance more convenient.

The new version of the chamber has a hydropower up and down independent separation system, which offers flexibility in installation locations. It also has the option for manual or automatic water filling, making it easy to use. The chamber allows for quick and easy switching between continuous spray and intermittent spray modes, providing convenience and ease of operation.

The temperature fluctuation in this chamber is kept within ±0.5℃, ensuring accurate and reliable test results. It has both manual and automatic water filling modes, with the automatic mode equipped with a water purifier for better water quality.

The chamber is made of high-quality materials, with the test room and outer boxes constructed from grade PVC polyethylene board. The thickness of the entire machine is 8mm, making it resistant to acid, base, and temperatures up to 78℃. The laboratory sealing cover is made of PVC plate with a thickness of 8mm and reinforced with a 13mm surround, making it highly resistant to acid, alkali, and temperatures up to 78℃.

The chamber also comes with various safety protection devices, including automatic cut-off of the heater power supply when low brine or over-temperature is detected, and automatic cut-off when the laboratory is at low water level.

This salt spray corrosion testing equipment is also known as a salt spray corrosion test chamber, salt spray chamber with fog collector, salt spray corrosion test machine, and salt spray corrosion resistance testing equipment. It is a reliable and efficient tool for testing the corrosion resistance of materials and coatings, ensuring the highest quality standards in various industries.

Applications:

The INFINITY IE 44 Series Salt Spray Test Chamber is a state-of-the-art environmental test chamber designed for corrosion resistance testing. It is widely used in the electronics, electrician, automobile, motorcycle, hardware, plastic, and FPC soft board industries for evaluating the surface corrosion resistance of products after processes such as electroplating, spray painting, and anode treatment.

• Brand Name: INFINITY
• Model Number: IE 44 Series
• Place of Origin: MADE IN CHINA
• Certification: CE, ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet + sponge + wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT, PAYPAL, Moneygram, and more
• Supply Ability: 200 sets / month
• Valid Test Capacity: 150L, 270L, 576L, 800L, 1200L

The IE 44 Series Salt Spray Test Chamber is used for conducting salt fog spray corrosion tests to evaluate the corrosion resistance of various products. It can be used for testing products from different industries such as electronics, electrician, automobile, motorcycle, hardware, plastic, and FPC soft board industries. It is particularly useful for testing products after processes such as electroplating, spray painting, and anode treatment.

The IE 44 Series Salt Spray Test Chamber follows various GB/T standards for testing, including:

• GB/T242317-2008 - Basic Procedure Test Ka for Electrical and Electronic Products
• GB/T242318-2000 - Basic Procedure Test Ka for Electrical and Electronic Products
• GB/T10125-1997 - Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions
• GB/T10587-2006 - Salt Spray Test Box
• GB105932-1990 - Environmental Parameter Measurement Method of Electrical and Electronic Products
• GB/T1765-1979 - Test of Damp Heat Resistance, Salt Spray Resistance, and Hou Resistance (Artificial Acceleration)
• GB/T242317-1993 - Basic Environmental Test Procedures for Electronic and Electrical Products Test Ka: Test Methods for Salt Fog
• GB/T1771-2007 - Determination of Paint and Varnish Resistance for Neutral Salt Spray Test (NSS Test)
• GB5938-86 - Test Method for Metal Plating and Chemical Treatment of Light Industry Products
• GB/T1771-91 - Measurement of Paint and Varnish Acetate Fog Test (AASS Test)

The pressure barrel temperature range for the IE 44 Series Salt Spray Test Chamber is RT+5℃ to 70℃, making it suitable for a wide range of test conditions.

The IE 44 Series Salt Spray Test Chamber is available in the following models:

• IE4460L
• IE4490L
• IE44120L
• IE44160L
• IE44200L

Customization:

INFINITY Salt Spray Test Chamber (New) Customization Services

Brand Name: INFINITY

Model Number: IE 44 Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and more

Supply Ability: 200 sets / month

This series of equipment is designed to simulate the atmosphere salt droplets diffusion system. It is widely used in industries such as electronics, electrical engineering, automobile, motorcycle, hardware, plastic, FPC soft board, and more. It is used for salt spray corrosion testing after processes like electroplating, spray painting, paint, anode treatment to evaluate the surface corrosion resistance.

• Test Room and Outer Boxes: The inner and outer boxes of the laboratory use grade PVC polyethylene board with a thickness of 8mm. It is resistant to acid, base, and can withstand temperatures up to 78℃.
• Laboratory Sealing Cover: The laboratory sealing cover is made of class PVC plate with a thickness of 8mm and surrounded by reinforcement of 13mm. It is resistant to acid, alkali, and can withstand temperatures up to 78℃.

The equipment offers both automatic and manual dual water supply modes. It comes with an automatic water inlet and a water purifier for automatic water filling.

• The test drug supplement is hidden, eliminating the need to open the cover and refill the solution. It also has a water level observation window on the side for easy cleaning.
• The equipment uses special glass nozzles and saline filters on the spray water pipe, ensuring no crystalline salt obstruction for up to 4000 hours.
• The control components are from well-known brands and use an upper and lower water and electricity separation structure to avoid safety risks. It also prevents circuit corrosion and aging, maximizing the service life of electrical components and making maintenance more convenient.
• The new version of the equipment features independent separation of hydropower, allowing for different manual and automatic water filling options depending on the customer's installation place.
• The equipment can switch between continuous spray and intermittent spray quickly and easily, making it easy to operate.

• GB/T242317-2008 GB/T242318-2000 Basic Procedure Test Ka for Electrical and Electronic Products
• GB/T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions
• GB/T10587-2006 Salt Spray Test Box
• GB105932-1990 Environmental Parameter Measurement Method of Electrical and Electronic Products
• GB/T1765-1979 Test of Damp Heat Resistance, Salt Spray Resistance and Hou Resistance (Artificial Acceleration)
• GB/T242317-1993 Basic Environmental Test Procedures for Electronic and Electrical Products Test Ka: Test Methods for Salt Fog
• GB/T1771-2007 Determination of Paint and Varnish Resistance for Neutral Salt Spray Test (NSS Test)
• GB5938-86 Test Method for Metal Plating and Chemical Treatment of Light Industry Products
• GB/T1771-91 Measurement of Paint and Varnish Acetate Fog Test (AASS Test)

Salt spray corrosion testing equipment, Salt spray corrosion test chamber, Salt spray corrosion testing equipment manufacturer

Packing and Shipping:

The salt spray test chamber (new) is carefully packed to ensure its safe delivery to our customers. Below are the details of the packaging and shipping process.

• The salt spray test chamber (new) is first wrapped with protective materials to prevent any damage during transportation.
• It is then placed in a sturdy wooden case to provide additional protection.
• The case is sealed and labeled with the necessary information, including the product name and model number.
• For international shipments, the necessary export documents will be included in the package.
• The package will be delivered to the designated address via a reliable shipping service.

At [company name], we take great care in packaging and shipping our products to ensure they arrive in perfect condition. If you have any concerns or special requests regarding the packaging and shipping of your salt spray test chamber (new), please do not hesitate to contact us.
