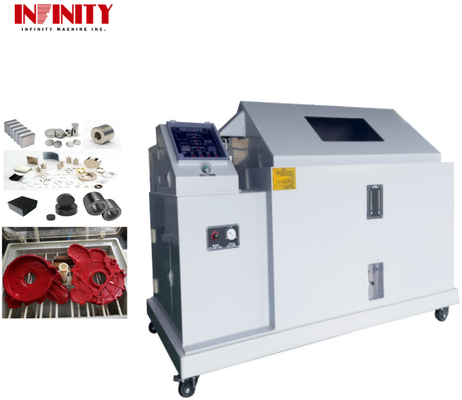

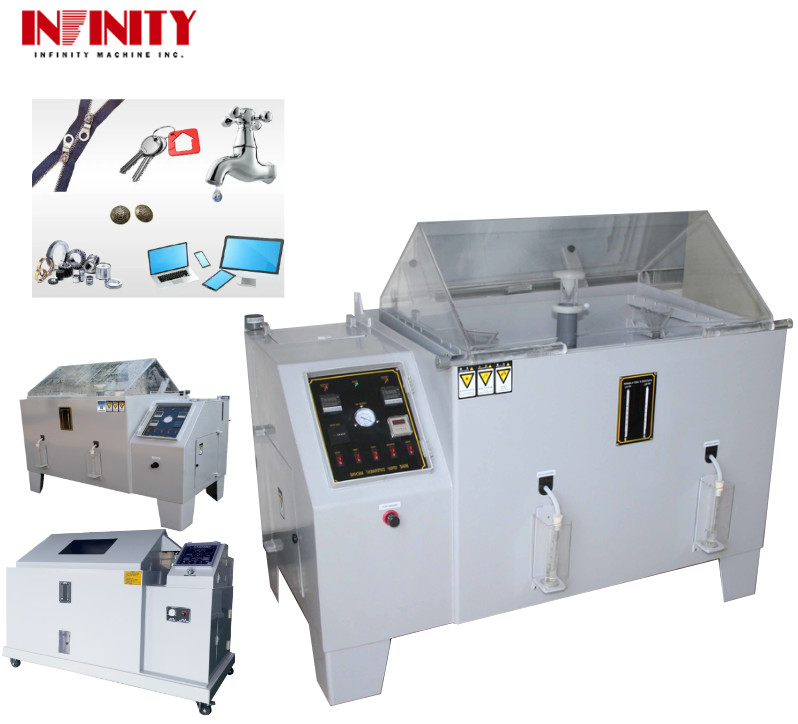

Spray Water Pipe With Saline Filter Salt Spray Test Chamber High Accurate 1.5KW

Model	I E4460L	I E4490L		I E44120L	I E44160L	I E44200L
Laboratory temperature range	RT+5℃~60℃
Pressure barrel temperature range	RT+5℃~70℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
Salt mist settlement	1～3ml/h.80cm2
Spray pressure	1.00±0.01kgf/cm²
Spray way	Continuous spray + intermittent spray
Valid test capacity	150L	270L		576L	800L	1200L
Internal box size:WxHxD(mm )	600*450*400	900*600*500		1200*800*600	1600*1000*500	2000*1000*600
Out box size:WxHxD(mm )	1050*700*950	1400*850*1100		2080*1050*1300	2430*1250*1400	2730*1250*1400
Box structure	● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃
Open cover way	Manual open cover		One-click automatic open-cover
Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
Specimen holder	The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent.
Safety protection device	● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply.
Power	AC220V;50Hz;1.5KW	AC 220;V50Hz;2.5KW		AC 220;V50Hz;3.5KW	AC 220;V50Hz;4.5KW	AC 380;V50Hz;5KW

The Salt Spray Test Chamber (New) is designed based on the principle of simulating the atmosphere salt droplets diffusion system. It is widely used in industries such as electronics, electrician, automobile, motorcycle, hardware, plastic, FPC soft board, and more. This equipment is used for testing the corrosion resistance of products after electroplating, spray painting, painting, and anode treatment through salt spray corrosion test, in order to evaluate the surface corrosion resistance of the products.

Applications:
Salt Spray Test Chamber
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month

Product Description:
The Salt Spray Test Chamber (New) from INFINITY is a highly efficient and reliable environmental salt spraying tester. It is designed to simulate and test the corrosive effects of salt spray on various materials and products, making it an essential tool for quality control and research purposes in industries such as automotive, electronics, and aerospace.

Application:
The Salt Spray Test Chamber is suitable for a wide range of applications, including but not limited to:

Corrosion resistance testing of metal materials
Quality control of automotive components
Evaluation of electronic products for outdoor use
Testing of protective coatings and surface treatments
Research and development of new materials

Features:
Salt spray chamber with fog collector for accurate and efficient testing
Environmental salt spraying tester for realistic simulation of harsh conditions
Salt spray corrosion tester for evaluating the durability of materials
Continuous Spray + Intermittent Spray for versatile testing options
Integrated hydropower system for safe and reliable operation
Automatic safety protection devices to prevent accidents
Special glass nozzle and saline filter for long-term use without obstruction
Upper and lower water and electricity separation for maximum safety and prolonged lifespan of components
Easy to use with manual and automatic water addition options
Quick and easy switch between continuous and intermittent spray
Specimen Holder:
The Salt Spray Test Chamber comes with a basket holder featuring a plane dividing frame and adjustable placement angle of 15 or 30 degrees. This ensures consistent fog distribution and direction on all sides of the specimen, allowing for accurate and reliable testing results.

Customization:
Brand Name: INFINITY
Model Number: IE 44 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature fluctuation: ±0.5℃
Features:
The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling. At The Same Time, The Side Has The Water Level Observation Window For Convenient Cleaning. Using Special Glass Nozzle, Spray Water Pipe With Saline Filter, Can Be Used For 4000 Hours To Ensure No Crystalline Salt Obstruction. Control Components Choose Well-known Brands, Using The Structure Of Upper And Lower Water And Electricity Separation, To Avoid Safety Risks, But Also To Prevent Circuit Corrosion And Aging, Maximize The Service Life Of Electrical Components, Maintenance Is More Convenient.

According To The Customer Installation Place Can Be Different Manually And Automatically Add Water, Easy To Use. Continuous Spray And Intermittent Spray Can Be Quickly And Freely Switched, Easy To Operate.

Spray Way: Continuous Spray + Intermittent Spray
Specimen holder: The Basket Holder Of The Laboratory Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent.
Test standards:
GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products

GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box

GB105932-1990 Environmental Parameter Measurement Method Of Electrical And Electronic Products
GB / T1765-1979 Test Of Damp Heat Resistance, Salt Spray Resistance And Hou Resistance (artificial Acceleration)

GB / T242317-1993 Basic Environmental Test Procedures For Electronic And Electrical Products Test Ka: Test Methods For Salt Fog

GB / T1771-2007 Determination Of Paint And Varnish Resistance For Neutral Salt Spray Test (NSS Test)

GB5938-86 Test Method For Metal Plating And Chemical Treatment Of Light Industry Products

GB / T1771-91 Measurement Of Paint And Varnish. Acetate Fog Test (AASS Test)

Keywords: Environmental salt spraying tester, Salt spray chamber with fog collector, salt spray Corrosion resistance testing chamber

Packing and Shipping:
Packaging and Shipping for salt spray test chamber
Our salt spray test chamber is carefully packaged to ensure safe and secure transportation to our customers. Each unit is packed in a sturdy wooden crate to protect it from any potential damage during shipping.

The dimensions and weight of the crate will vary depending on the size and model of the salt spray test chamber. Our team will carefully select the appropriate crate size to minimize shipping costs while still ensuring the safety of the product.

We work with trusted shipping companies to ensure timely and efficient delivery of our products. We offer both air and sea freight options, depending on the customer's preference and urgency of delivery.

For international shipments, we provide all necessary documentation, including customs clearance and export permits, to ensure a smooth delivery process.

Once the product has been carefully packaged and prepared for shipping, we will provide our customers with a tracking number so they can monitor the status of their shipment.

At salt spray test chamber(new), we strive to provide our customers with a hassle-free and reliable shipping experience. If you have any specific packaging or shipping requirements, please let us know and we will do our best to accommodate your needs.
