Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance

Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance

  • Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance
  • Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance
Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IE 44 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Features: The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling. At The Same Time, The Side Has The Water Level Observation Window For Convenient Cleaning. Using Special Glass Nozzle, Spray Water Pipe With Saline Filter, Can Be Used For 4000 Ho Temperature Fluctuation: ±0.5℃
Power: AC220V;50Hz;1.5KW AC 220;V50Hz;2.5KW AC 220;V50Hz;3.5KW AC 220;V50Hz;4.5KW AC 380;V50Hz;5KW Temperature Uniformity: ≦1.0℃
Specimen Holder: The Basket Holder Of The Laboratory Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent. Open Cover Way: Manual Open Cover & One-click Automatic Open-cover
Box Structure: ● Test Room And Outer Boxes: The Inner And Outer Boxes Of The Laboratory Adopt A Grade PVC Polyethylene Board, The Thickness Of The Whole Machine Is 8mm, Acid And Base Resistance And Temperature Resistance To 78℃. ● Laboratory Sealing Cover: Laboratory Sea Application: Widely Used In Electronics, Electrician And Automobile, Motorcycle, Hardware, Plastic, FPC Soft Board, And Other Industry Products After Electroplating, Spray Paint, Paint, Anode Treatment For Salt Spray Corrosion Test, To Evaluate Its Surface Corrosion Re

Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance   IE44Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance 0

Product Description:

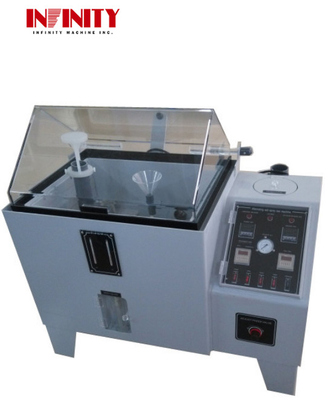

Salt Spray Test Chamber (New)

The Salt Spray Test Chamber is a highly efficient and reliable product designed for conducting salt spray corrosion resistance testing on various industry products. It is equipped with advanced features to provide accurate results and evaluate the surface corrosion resistance of the products.

Power

The chamber is available in various power options to meet the diverse needs of different industries. The power options include:

  • AC 220V; 50Hz; 1.5KW
  • AC 220V; 50Hz; 2.5KW
  • AC 220V; 50Hz; 3.5KW
  • AC 220V; 50Hz; 4.5KW
  • AC 380V; 50Hz; 5KW
Specimen Holder

The Salt Spray Test Chamber is equipped with a basket holder that adopts a plane dividing frame. The placement angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent. This ensures uniform exposure of the specimen to the salt spray, providing accurate and reliable results.

Open Cover Way

The chamber offers two options for opening the cover, manual open cover, and one-click automatic open-cover. The manual open cover provides convenience and ease of use, while the one-click automatic open-cover saves time and effort. Users can choose the option that best suits their needs.

Application

The Salt Spray Test Chamber is widely used in various industries such as electronics, electrician, automobile, motorcycle, hardware, plastic, FPC soft board, and more. It is used for conducting salt spray corrosion tests on products after electroplating, spray paint, paint, anode treatment, etc. to evaluate their surface corrosion resistance.

Pressure Barrel Temperature Range

The chamber offers a temperature range of RT+5℃~70℃ for the pressure barrel. This allows for accurate and precise control of temperature during the testing process, ensuring reliable results.

Conclusion

The Salt Spray Test Chamber is a must-have product for industries that require accurate and reliable salt spray corrosion resistance testing. It is equipped with advanced features and offers convenience, ease of use, and precise control of temperature. With the Salt Spray Test Chamber, you can ensure the quality and durability of your products, making it a valuable investment for your business.

Temperature Uniformity ≦1.0C Salt Mist Spray Test Chamber For Long-Lasting Performance 1

Applications:

Salt Spray Test Chamber – INFINITY IE 44 Series

Model I E4460L I E4490L I E44120L I E44160L I E44200L
Laboratory temperature range RT+5℃~60℃
Pressure barrel temperature range RT+5℃~70℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Salt mist settlement 1~3ml/h.80cm2
Spray pressure 1.00±0.01kgf/cm²
Spray way Continuous spray + intermittent spray
Valid test capacity 150L 270L 576L 800L 1200L
Internal box size:WxHxD(mm ) 600*450*400 900*600*500 1200*800*600 1600*1000*500 2000*1000*600
Out box size:WxHxD(mm ) 1050*700*950 1400*850*1100 2080*1050*1300 2430*1250*1400 2730*1250*1400
Box structure

● Test room and outer boxes: the inner and outer boxes of the laboratory adopt A grade PVC polyethylene board, the thickness of the whole machine is 8mm, acid and base resistance and temperature resistance to 78℃.

● Laboratory sealing cover: laboratory sealing cover adopts A class PVC plate, thickness of 8mm, surround reinforcement of 13mm, acid and alkali resistance and temperature resistance of 78℃

Open cover way Manual open cover One-click automatic open-cover
Water filling method Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
Specimen holder The basket holder of the laboratory adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent.
Safety protection device

● When low brine, automatically cut off the heater power supply.

● Over-temperature, automatically cut off the heater power supply.

● When the laboratory is at low water level, automatically cut off the heater power supply.

Power AC220V;50Hz;1.5KW AC 220;V50Hz;2.5KW AC 220;V50Hz;3.5KW AC 220;V50Hz;4.5KW AC 380;V50Hz;5KW


Key Features: Salt Spray Corrosion Resistance Testing Chamber, Salt Spray Fog Test Chamber, Salt Spray Fog Test Chamber, Salt Spray Test Equipment



Customization:

Salt Spray Test Chamber (New) Customization Service

Brand Name: INFINITY

Model Number: IE 44 Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and more

Supply Ability: 200 sets / month

Water Filling Methods: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier

Features:

  • The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling.
  • Side Water Level Observation Window for Convenient Cleaning.
  • Special Glass Nozzle for 4000 Hours of Use Without Crystalline Salt Obstruction.
  • Control Components from Well-known Brands.
  • Upper and Lower Water and Electricity Separation Structure to Avoid Safety Risks and Circuit Corrosion.
  • Maximize the Service Life of Electrical Components.
  • Maintenance is More Convenient.
  • Hydropower Up & Down Independent Separation for Different Installation Places.
  • Manually and Automatically Add Water for Easy Use.
  • Quickly and Freely Switch Between Continuous and Intermittent Spray.

Valid Test Capacity: 150L, 270L, 576L, 800L, 1200L

Temperature Uniformity: ≦1.0℃

Open Cover Way: Manual Open Cover & One-click Automatic Open-cover

Key Words: Salt Fog Spray Corrosion Test Chamber, Salt Spray Test Chamber, INFINITY, IE 44 Series, MADE IN CHINA, CE, ISO, Customization, Minimum Order Quantity, Negotiate, Packaging Details, Delivery Time, Payment Terms, Supply Ability, Water Filling Methods, Automatic, Manual, Dual Water Supply Mode, Water Purifier, Hidden Test Drug Supplement, Water Level Observation Window, Special Glass Nozzle, Saline Filter, 4000 Hours, Control Components, Upper and Lower Water and Electricity Separation, Safety Risks, Circuit Corrosion, Aging, Service Life, Electrical Components, Maintenance, Hydropower Up & Down Independent Separation, Installation Place, Manually, Automatically, Continuous Spray, Intermittent Spray, Switching, Valid Test Capacity, Temperature Uniformity, Open Cover Way, Manual Open Cover, One-click Automatic Open-cover.



Packing and Shipping:

Packaging and Shipping

The salt spray test chamber (new) is carefully packaged to ensure safe delivery to our customers. We use high-quality materials and secure packaging methods to protect the product from damage during transit.

The chamber is first wrapped in a layer of protective foam and then placed in a sturdy cardboard box. The box is sealed with strong tape and labeled with appropriate handling instructions and product information.

For international shipments, the chamber is also securely strapped to a pallet to prevent any movement during transportation. The pallet is then wrapped in plastic and labeled with all necessary shipping information and customs documentation.

We work with trusted shipping partners to ensure timely and efficient delivery of our products. Customers can choose from a variety of shipping options, including air, sea, and ground transportation, depending on their location and delivery preferences.

Upon delivery, our customers can expect to receive the salt spray test chamber (new) in perfect condition, ready to be used for their testing needs.
