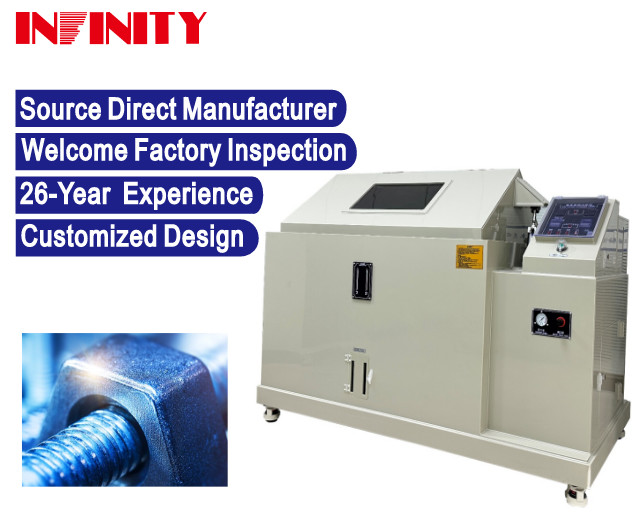

IE42 160L Salt Spray Test Chamber Advanced for Paint Equipment Design Principle

Product Description:

The salt spray test chamber is a state-of-the-art equipment designed for conducting corrosion resistance tests on various materials and coatings. It is specifically designed to simulate harsh environmental conditions, such as salt spray and fog, to evaluate the corrosion resistance of products.

• Equipped with a 7-inch LCD touch screen for easy operation and monitoring
• Independently developed applications with precise control and accurate results
• Integrated with P.I.D automatic calculus for efficient testing
• Supports Chinese and English conversion for global usage
• Temperature and time setting functions for precise testing conditions
• Allows for spray, fog removal, and other functions for versatile testing
• Hidden test drug supplement without the need to open the cover for filling
• Water level observation window on the side for convenient cleaning
• Special glass nozzle and saline filter for 4000 hours of continuous use without salt obstruction
• Control components from well-known brands for reliable performance
• Upper and lower water and electricity separation structure for safety and protection against circuit corrosion and aging

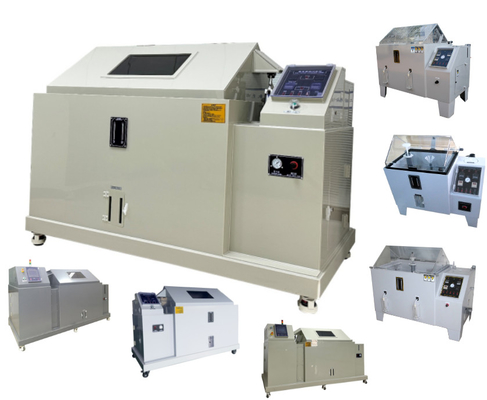

• Multiple models available for different testing needs: IE4260L, IE4290L, IE42120L, IE42160L, IE42200L

The salt spray test chamber offers both automatic and manual water filling modes. The automatic mode comes with a built-in water purifier for convenient and clean water supply.

• Automatic cut-off of heater power supply when low brine is detected
• Automatic cut-off of heater power supply in case of over-temperature
• Automatic cut-off of heater power supply when the water level in the laboratory is low

The placement frame in the laboratory is designed with a plane dividing frame, allowing for optional placement angles of 15 and 30 degrees. This ensures consistent fog on all sides and direction for accurate testing results.

• Environmental salt spraying tester
• Salt spray fog test chamber
• Salt fog spray corrosion test chamber
• Salt corrosion tester
• Salt spray test machine

Applications:

• GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products
• GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box
• GB105932-1990 Environmental Parameter Measurement Method Of Electrical And Electronic Products
• GB / T1765-1979 Test Of Damp Heat Resistance, Salt Spray Resistance And Hou Resistance (artificial Acceleration)
• GB / T242317-1993 Basic Environmental Test Procedures For Electronic And Electrical Products Test Ka: Test Methods For Salt Fog
• GB / T1771-2007 Determination Of Paint And Varnish Resistance For Neutral Salt Spray Test (NSS Test)
• GB5938-86 Test Method For Metal Plating And Chemical Treatment Of Light Industry Products
• GB / T1771-91 Measurement Of Paint And Varnish. Acetate Fog Test (AASS Test)

The Salt Spray Test Chamber from INFINITY is the ideal solution for conducting salt spray corrosion tests on a wide range of products. This new and advanced chamber, model IE 42 Series, is designed and manufactured in China with a CE and ISO certification, ensuring high quality and performance.

The chamber has a minimum order quantity of 1 and the price can be negotiated according to the customer's requirements. The packaging is done using clear sheets, sponge, and a wooden carton to ensure safe transportation. The delivery time is 20-30 days after the order is confirmed, and the payment terms include TT, PAYPAL, Moneygram, and other options.

The chamber has a power range of 300-700, providing flexibility to the user. It has a temperature range of RT+5℃~60℃ and a spray pressure of 1.00±0.01kgf/cm², meeting the industry standards. The temperature uniformity is less than 1.0℃, ensuring accurate test results.

The Salt Spray Test Chamber is designed to meet various test standards, including GB / T242317-2008, GB / T242318-2000, GB / T10125-1997, GB105932-1990, GB / T1765-1979, GB / T242317-1993, GB / T1771-2007, GB5938-86, and GB / T1771-91. These standards cover basic procedures, technical conditions, environmental parameters, and test methods for salt spray corrosion tests.

The chamber is suitable for testing the corrosion resistance of various products, including electrical and electronic products, metal plating and chemical treatment products, and light industry products. It is widely used in industries such as electronics, automotive, aerospace, and metal finishing.

Overall, the Salt Spray Test Chamber from INFINITY is a reliable and efficient solution for conducting salt spray corrosion tests, helping businesses ensure the quality and durability of their products. With a monthly supply capacity of 200 sets, INFINITY is committed to providing timely and high-quality services to its customers.

Model	I E4260L	I E4290L	I E42120L		I E42160L	I E42200L
Laboratory Temperature Range	RT+5℃~60℃
Pressure Barrel Temperature Range	RT+5℃~70℃
Temperature Fluctuation	±0.5℃
Temperature Uniformity	≦1.0℃
Salt Mist Settlement	1～3ml/h.80cm2
Spray Pressure	1.00±0.01kgf/cm²
Spray Way	Continuous spray + intermittent spray
Valid Capacity for Testing	150L	270L	576L		800L	1200L
Internal box size: WxHxD(mm )	600*450*400	900*600*500	1200*800*600		1600*1000*500	2000*1000*600
Out box size: WxHxD(mm )	1050*700*950	1400*850*1100	2080*1050*1300		2430*1250*1400	2830*1250*1400
Box structure	● Test room and outer box: the inner and outer box of the laboratory adopts A class PP polyethylene dilute board, the thickness of the whole machine is 10mm, acid and base resistance and temperature resistance to 90℃. ● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃
Open cover way	Manual open cover			One-click automatic open-cover
Water filling methods	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
Specimen holder	In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent.
Safety protection devices	● When low brine, automatically cut off the heater power supply. ● Over-temperature, automatically cut off the heater power supply. ● When the laboratory is at low water level, automatically cut off the heater power supply.
Power	AC220V;50Hz;1.5KW	AC 220;V50Hz;2.5KW	AC 220;V50Hz;3.5KW		AC 220;V50Hz;4.5KW	AC 380;V50Hz;5KW

Customization:

The INFINITY IE 42 Series Salt Spray Test Chamber is the perfect solution for conducting salt spray corrosion testing. This chamber features a fog collector to ensure accurate test results and is equipped with advanced technology to provide precise and reliable testing.

Our salt spray chamber is designed with a fog collector, which collects and maintains a consistent level of salt spray in the chamber for accurate testing. This feature ensures that the test results are reliable and can be used for quality control and product development purposes.

The IE 42 Series is a top-of-the-line salt spray corrosion testing equipment designed for various industries such as automotive, aerospace, and electronics. It is capable of replicating harsh environmental conditions to test the durability and corrosion resistance of materials and products.

Our salt spray fog test chamber is designed to create a controlled and consistent salt spray environment to simulate real-world conditions. This chamber is equipped with advanced technology to ensure accurate and reliable testing results, making it the ideal choice for salt spray corrosion testing.

At INFINITY, we understand that different industries have different testing requirements. That's why we offer customization services for our IE 42 Series Salt Spray Test Chamber to meet your specific needs. Our experienced engineers will work closely with you to design and build a chamber that meets your unique testing requirements.

The salt mist settlement rate is an essential factor in salt spray corrosion testing. We offer customization options for the salt mist settlement rate to ensure accurate and consistent testing results for your specific needs.

Our IE 42 Series Salt Spray Test Chamber can be customized with different water filling methods to meet your specific testing requirements. We offer both automatic and manual dual water supply modes, as well as an automatic water inlet with a set of water purifier for added convenience and accuracy.

We understand that ease of use is important when it comes to testing equipment. That's why we offer customization options for the open cover way of our salt spray chamber. You can choose between a manual open cover or a one-click automatic open-cover for added convenience and efficiency.

Temperature uniformity is crucial in salt spray corrosion testing to ensure accurate and consistent results. Our IE 42 Series Salt Spray Test Chamber can be customized to achieve a temperature uniformity of ≦1.0℃, ensuring precise and reliable testing results.

Choose INFINITY for your salt spray testing needs, and let us customize a chamber that meets your specific requirements. Contact us now to learn more about our customization services.



Packing and Shipping:

The salt spray test chamber (new) is packaged and shipped in a secure and sturdy wooden crate to ensure its safe arrival to the customer. The packaging includes foam padding and other protective materials to prevent any damage during transportation. Package Contents:

• Salt spray test chamber (new)
• User manual
• Power cord
• Optional accessories (if included in the order)

Our experienced team will carefully handle the packaging process to ensure the chamber is securely packed and labeled for shipping. The crate is then loaded onto a truck for transportation to the customer's designated location.

We offer various shipping options to meet our customers' needs, including air, sea, and ground transportation. The shipping cost will be calculated based on the weight and dimensions of the package, as well as the customer's location.

Upon arrival, the customer is responsible for inspecting the package for any visible damage. If any damage is found, please contact our customer service team immediately for assistance.

We strive to provide a smooth and efficient packaging and shipping process to ensure our customers receive their salt spray test chamber (new) in perfect condition.
