Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IE 42 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Features: Equipped With A 7-inch LCD Touch Screen, Independently Developed Applications, With A P.I. D Automatic Calculus, Chinese, English Conversion, With Temperature Setting, Time Setting, Spray, Fog Removal And Other Functions. The Test Drug Supplement Is Hidd Models: I E4260L I E4290L, I E42120L, I E42160L, I E42200L
Temperature Fluctuation: ±0.5℃ Spray Way: Continuous Spray + Intermittent Spray
Safety Protection Devices: ● When Low Brine, Automatically Cut Off The Heater Power Supply. ● Over-temperature, Automatically Cut Off The Heater Power Supply. ● When The Laboratory Is At Low Water Level, Automatically Cut Off The Heater Power Supply. Specimen Holder: In The Laboratory, The Placement Frame Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent.
Test Standards: GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box GB105932-1990 Environm Temperature Range: RT+5℃~60℃

Test Salt Mist Spray Test Chamber GB / T242317-2008 GB / T242318-2000 Basic Procedure  IE42Test Salt Mist Spray Test Chamber GB / T242317-2008 GB / T242318-2000 Basic Procedure 0

Product Description:

Salt Spray Test Chamber (New)

The Salt Spray Test Chamber (New) is a state-of-the-art testing equipment used for conducting corrosion tests on various types of materials. It is designed to meet the requirements of several international and national test standards, including:

  • GB / T242317-2008 GB / T242318-2000 Basic Procedure Test Ka For Electrical And Electronic Products
  • GB / T10125-1997 Artificial Atmosphere Corrosion Test Salt Spray Test Technical Conditions Of The GB / T10587-2006 Salt Spray Test Box
  • GB105932-1990 Environmental Parameter Measurement Method Of Electrical And Electronic Products
  • GB / T1765-1979 Test Of Damp Heat Resistance, Salt Spray Resistance And Hou Resistance (artificial Acceleration)
  • GB / T242317-1993 Basic Environmental Test Procedures For Electronic And Electrical Products Test Ka: Test Methods For Salt Fog
  • GB / T1771-2007 Determination Of Paint And Varnish Resistance For Neutral Salt Spray Test (NSS Test)
  • GB5938-86 Test Method For Metal Plating And Chemical Treatment Of Light Industry Products
  • GB / T1771-91 Measurement Of Paint And Varnish. Acetate Fog Test (AASS Test)

The Salt Spray Test Chamber (New) is also suitable for conducting accelerated corrosion tests on a wide range of materials, including metals and their alloys, metal overlays (anodic and cathodic), conversion overlays, anodic overlays, and organic overlays on metal materials.

Key Features:
  • Salt fog spray corrosion test chamber
  • Salt spray corrosion test chamber
  • Salt mist spray test chamber
  • Salt spray test chamber
  • Salt spray testing equipment
  • Salt spray testing machine
  • Salt spray test equipment
  • Salt spray test machine
  • Salt spray corrosion tester
  • Salt mist tester
  • Salt fog tester
  • Corrosion test chamber
  • Salt spray cabinet
Technical Specifications:
  • Water filling methods: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
  • Temperature fluctuation: ±0.5℃
  • Spray Pressure: 1.00±0.01kgf/cm²
Test Salt Mist Spray Test Chamber GB / T242317-2008 GB / T242318-2000 Basic Procedure 1
Model I E4260L I E4290L I E42120L I E42160L I E42200L
Laboratory Temperature Range RT+5℃~60℃
Pressure Barrel Temperature Range RT+5℃~70℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ≦1.0℃
Salt Mist Settlement 1~3ml/h.80cm2
Spray Pressure 1.00±0.01kgf/cm²
Spray Way Continuous spray + intermittent spray
Valid Capacity for Testing 150L 270L 576L 800L 1200L

Internal box size:

WxHxD(mm )

600*450*400 900*600*500 1200*800*600 1600*1000*500 2000*1000*600

Out box size:

WxHxD(mm )

1050*700*950 1400*850*1100 2080*1050*1300 2430*1250*1400 2830*1250*1400
Box structure

● Test room and outer box: the inner and outer box of the laboratory adopts A class PP polyethylene dilute board, the thickness of the whole machine is 10mm, acid and base resistance and temperature resistance to 90℃.

● Laboratory sealing cover: laboratory sealing cover adopts A class PP plate, thickness of 10mm, surround reinforcement of 15mm, acid and base resistance and temperature resistance of 90℃

Open cover way Manual open cover One-click automatic open-cover
Water filling methods Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier

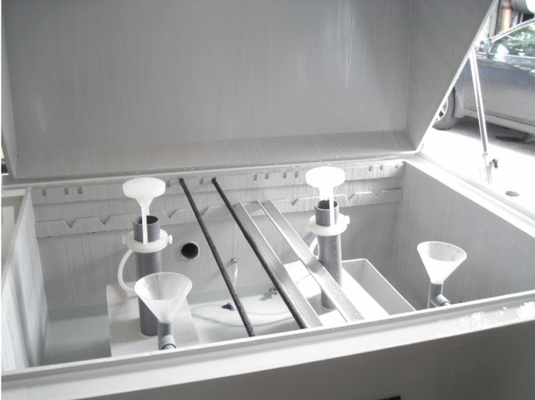

Specimen holder In the laboratory, the placement frame adopts the plane dividing frame, the placement Angle of 15 degrees and 30 degrees is optional, and the fog on all sides and the fog direction is completely consistent.
Safety protection devices

● When low brine, automatically cut off the heater power supply.

● Over-temperature, automatically cut off the heater power supply.

● When the laboratory is at low water level, automatically cut off the heater power supply.

Power AC220V;50Hz;1.5KW AC 220;V50Hz;2.5KW AC 220;V50Hz;3.5KW AC 220;V50Hz;4.5KW AC 380;V50Hz;5KW


Applications:

INFINITY IE 42 Series Salt Spray Test Chamber
Brand Name: INFINITY
Model Number: IE 42 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature fluctuation: ±0.5℃
Features:

The INFINITY IE 42 Series Salt Spray Test Chamber is equipped with a 7-inch LCD touch screen, independently developed applications, with a P.I.D automatic calculus. It also has the function of Chinese, English conversion, temperature setting, time setting, spray, fog removal and other functions. The test drug supplement is hidden, without opening the cover and filling. At the same time, the side has the water level observation window for convenient cleaning.

The chamber uses special glass nozzle and spray water pipe with saline filter, which can be used for 4000 hours to ensure no crystalline salt obstruction. The control components are chosen from well-known brands and the structure is designed with upper and lower water and electricity separation to avoid safety risks. This also prevents circuit corrosion and aging, maximizing the service life of electrical components and making maintenance more convenient.

Application:

The INFINITY IE 42 Series Salt Spray Test Chamber is specifically designed for salt fog spray corrosion testing. It is suitable for accelerated corrosion tests of various materials, including metals and their alloys, metal overlays (anodic and cathodic), conversion overlays, anodic overlays, organic overlays on metal materials, and more.

Spray Pressure: 1.00±0.01kgf/cm²
Pressure Barrel Temperature Range: RT+5℃~70℃
Advantages:
  • Equipped with a 7-inch LCD touch screen for easy operation.
  • Independently developed applications with temperature setting, time setting, spray, fog removal and other functions.
  • Hidden test drug supplement for convenient use.
  • Water level observation window for easy cleaning.
  • Special glass nozzle and saline filter for long-term use without salt obstruction.
  • Well-known brand control components for safety and long service life.

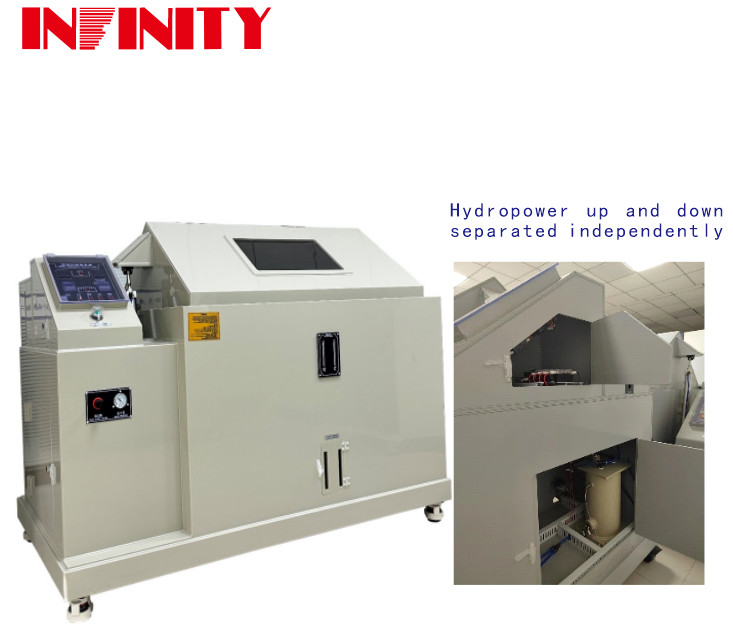

  • Upper and lower water and electricity separation structure for safety and easy maintenance.
  • Suitable for a wide range of materials and accelerated corrosion tests.
Price:

The price of the INFINITY IE 42 Series Salt Spray Test Chamber is negotiable and depends on the quantity and specific requirements of the customer. Please contact us for a detailed quotation.

Delivery Time:

The delivery time for the INFINITY IE 42 Series Salt Spray Test Chamber is 20-30 days after order confirmation.

Payment Terms:

We accept various payment methods such as TT, PayPal, Moneygram, etc. Please contact us for more details.

Supply Ability:

Our company has a monthly supply ability of 200 sets of the INFINITY IE 42 Series Salt Spray Test Chamber.



Customization:

Brand Name: INFINITY
Model Number: IE 42 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Specimen holder: In The Laboratory, The Placement Frame Adopts The Plane Dividing Frame, The Placement Angle Of 15 Degrees And 30 Degrees Is Optional, And The Fog On All Sides And The Fog Direction Is Completely Consistent.
Open cover way: Manual Open Cover & One-click Automatic Open-cover
Pressure Barrel Temperature Range: RT+5℃~70℃
Features: Equipped With A 7-inch LCD Touch Screen, Independently Developed Applications, With A P.I. D Automatic Calculus, Chinese, English Conversion, With Temperature Setting, Time Setting, Spray, Fog Removal And Other Functions. The Test Drug Supplement Is Hidden, Without Opening The Cover And Filling. At The Same Time, The Side Has The Water Level Observation Window For Convenient Cleaning. Using Special Glass Nozzle, Spray Water Pipe With Saline Filter, Can Be Used For 4000 Hours To Ensure No Crystalline Salt Obstruction. Control Components Choose Well-known Brands, Using The Structure Of Upper And Lower Water And Electricity Separation, To Avoid Safety Risks, But Also To Prevent Circuit Corrosion And Aging, Maximize The Service Life Of Electrical Components, Maintenance Is More Convenient.
Models:
  • IE4260L
  • IE4290L
  • IE42120L
  • IE42160L
  • IE42200L

For more information on our customized services for salt spray test chambers, please contact us at info@infinity.com or visit our website at www.infinity.com.

Keywords: Salt mist spray test chamber, Salt spray testing machine, Environmental salt spraying tester



Packing and Shipping:

Packaging and Shipping

1. The salt spray test chamber is packaged with polyfoam and protective film to avoid scratches and damage during transportation.

2. The packaged product is then placed in a strong wooden case to ensure safe delivery.

3. The shipping method can be chosen by the customer, either by sea or air.

4. The delivery time will vary depending on the shipping method and destination, but we will do our best to ensure prompt and efficient delivery.

5. We also offer customized packaging and shipping options according to the customer's requirements.



FAQ:

  • Q: What is the brand name of this product?
    • A: The brand name of this product is INFINITY.
  • Q: What is the model number of this product?
    • A: The model number of this product is IE 42 Series.
  • Q: Where is this product made in?
    • A: This product is made in China.
  • Q: Does this product have any certification?
    • A: Yes, this product is CE and ISO certified.
  • Q: What is the minimum order quantity for this product?
    • A: The minimum order quantity for this product is 1 set.
