270L Salt Spray Test Chamber For Testing Metals And Alloys With Advanced Features

Product Description:

The Salt Spray Test Chamber (New) is a state-of-the-art testing machine designed for conducting salt spray tests on various materials and products. It is equipped with advanced features and specifications to ensure accurate and efficient testing results. With its user-friendly design and high-performance capabilities, this machine is the ideal choice for salt spray testing needs.

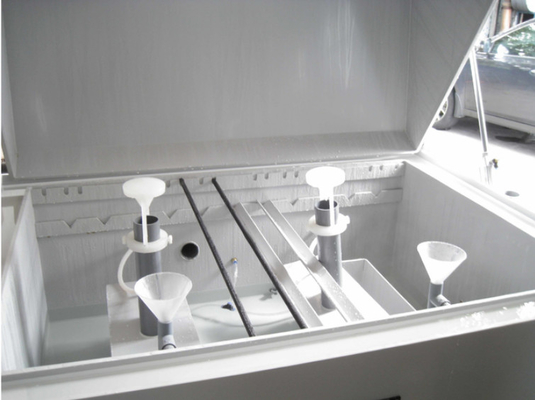

The Salt Spray Test Chamber (New) is equipped with a specimen holder that allows for easy placement of test products. The holder is made of PVC polyethylene material and has a dilute triangular tank box design. It features an adjustable angle for the test product and ensures consistent placement of test pieces on all sides. The bottom of the test box is equipped with a PP plate punching sample placement platform. The platform has uniform openings that quickly discharge the spray liquid, allowing for large samples to be placed for testing.

Specimen Holder:

• The inner wall of PVC polyethylene dilute triangular tank box is used for placing the dividing frame.
• The angle of the test product can be adjusted at will.
• The number of test pieces on all sides is completely consistent.

Temperature Range: 5℃ ～ +85℃

Water Filling Method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet with a Set of Water Purifier

Box Structure:

• Test Chamber Box: Made of PP polypropylene board, with a thickness of 10mm and temperature resistance of approximately 100 degrees.
• Laboratory Outer Box: Made of PP polypropylene board, with a thickness of 10mm and temperature resistance of approximately 100 degrees.
• Laboratory Sealing Cover: Made of PP polypropylene plate, with a thickness of 10mm, featuring a one-button automatic open cover, transparent observation window, and a defogging device for convenient and clear observation of the test. It has a temperature resistance of approximately 100 degrees.

Test Standards:

• GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
• GB-T5170.8-2008_ Inspection Method of Electrical and Electronic Products Environmental Test Equipment _ Salt Spray Test Equipment
• GJB150.11A-2009 Environmental Test Method of Military Equipment Laboratory Salt Spray Test
• GBT2424.17-2008 Test Method for Salt Spray
• GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
• GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
• GBT2423_4-2008 Test Method for Humid Heat Mixing
• IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (Sodium Chloride Solution)
• IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

• Highly efficient and accurate salt spray testing
• User-friendly design for easy operation
• Adjustable angle for test products
• Consistent placement of test pieces on all sides
• Automatic/manual dual water supply mode
• Transparent observation window for clear observation of test
• Temperature resistance of approximately 100 degrees

With its advanced features, high-performance capabilities, and adherence to industry standards, the Salt Spray Test Chamber (New) is the perfect choice for all your salt spray testing needs. Contact us today to learn more about this state-of-the-art product.

Applications:

The INFINITY IE 41 Series Salt Spray Test Chamber is a highly efficient and reliable equipment designed to simulate and accelerate the impact of salt pollution on metal materials. It is widely used in various industries, including:

• Automotive industry - to test the corrosion resistance of car parts and components
• Electronics industry - to test the durability of electronic devices in salty environments
• Marine industry - to test the corrosion resistance of ship components and coatings
• Aerospace industry - to test the durability of aircraft parts and materials
• Coating industry - to test the corrosion resistance of various coating materials
• Research and development institutions - to study the corrosion resistance of new materials

The test chamber can accurately simulate harsh environmental conditions, making it an essential tool for evaluating the corrosion resistance of materials and products. It can also be used for research and development purposes, helping companies improve the quality and durability of their products.

The INFINITY IE 41 Series Salt Spray Test Chamber has the following attributes:

• model	I E4160L	I E4190L	I E41120L	I E41160L	I E41200L
  Temperature range	5℃ ～ +85℃
  Temperature departure	±1℃
  Temperature fluctuation	±0.5℃
  Temperature uniformity	≦2.0℃
  Humidity range	20~100%R.H
  Humidity deviation	±2%R.H
  Relative humidity fluctuation	±2%R.H
  Humidity uniformity	±3%R.H
  Rising and cooling rate	RT →+85℃≤40 min RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).
  Effective inner capacity	150L	270L	576L	800L	1200L
  Internal box size: WxHxD(mm )	600*500*500	900*600*600	1200*1000*600	1600*1000*600	2000*1000*600
  Out box size: WxHxD(mm )	1780*950*1300	2080*1050*1350	2380*1450*1450	2780*1450*1450	3180*1450*1450
  Box structure	● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient clear observation of the test, temperature resistance of about 100 degrees.
  Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
  specimen holder	● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing.
  refrigeration compressor	France taikang fully closed compressor
  cooling medium	Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
  Condenser mode	air-cooled
  Safety protection device	refrigeration system	Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection
  	test box	Adjustable overtemperature protection Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection
  	heating system	Heating pipe dry burning protection alarm Abnormal water supply alarm Abnormal drainage alarm
  	other	earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function
  weight (Kg)	About 300	About 400	About 500	About 600	About 700
  Power	AC380V;50Hz;7KW	AC380;V50Hz;9KW	AC380;V50Hz;11KW	AC 380;V50Hz;13KW	AC 380;V50Hz;15KW


• Rising and Cooling Rate: RT → +85℃ ≤ 40 Min, RT → +0℃ ≤ 30 Min, Salt Spray (35℃) Dry (60℃, 20-30%RH) ≤ 30 Min, Dry (60℃, 20-30% RH) And Wet (50℃, 95% ± 5% RH) For 15 Min, Moistet (50℃, 95% ± 5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching).
• Equipment Design Principle: The INFINITY IE 41 Series Salt Spray Test Chamber is designed to simulate and increase the impact of the environment on metal materials exposed to salt pollution, and accelerate corrosion. It includes a test method for exposing samples to salt spray, dry, wet and humid environments. This test is a comparative test and the results cannot predict the long-term corrosion resistance of the same metal material used in this environmental condition. However, it provides valuable information on the properties of materials exposed to salt-contaminated environments similar to the test conditions. Compared to traditional accelerated corrosion tests, such as Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), Copper Accelerated Acetate Salt Spray Test (CASS), the INFINITY IE 41 Series Salt Spray Test Chamber is more efficient and accurate.
• Refrigeration Compressor: The equipment uses a France Taikang fully closed compressor, ensuring stable and efficient cooling performance.
• Temperature Departure: ±1℃
• Box Structure: The test chamber box is made of PP polypropylene board with a thickness of 10mm and a temperature resistance of about 100 degrees. The laboratory outer box is also made of PP polypropylene board with a thickness of 10mm and a temperature resistance of about 100 degrees. The laboratory sealing cover is made of PP polypropylene plate with a thickness of 10mm, equipped with a one-button automatic open cover and a transparent observation window. It also has a defogging device for convenient and clear observation of the test. The temperature resistance is about 100 degrees.

With its superior design and advanced technology, the INFINITY IE 41 Series Salt Spray Test Chamber is a reliable and efficient solution for salt spray corrosion resistance testing. Contact us now to learn more and negotiate the price for your order!

Customization:

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Temperature fluctuation: ±0.5℃

Humidity deviation: ±2%R.H

Rising and cooling rate: RT →+85℃≤40 Min RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min. Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min. Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching).

Temperature range: 5℃ ～ +85℃

Humidity range: 20~100%R.H

Introducing the Salt Spray Test Chamber (New) from INFINITY – the leading manufacturer of salt spray corrosion testing equipment. Our salt fog spray test chamber is designed to test the corrosion resistance of various materials and coatings under extreme conditions. With our cutting-edge technology and superior craftsmanship, our salt spray corrosion resistance testing chamber guarantees accurate and reliable results.

At INFINITY, we understand that every customer has unique testing requirements. That's why we offer customized service to ensure that our salt spray corrosion resistance test chamber meets your specific needs. We work closely with our clients to provide tailor-made solutions that are efficient, cost-effective, and of the highest quality.

Our Salt Spray Test Chamber (New) is proudly made in China and is certified with CE and ISO standards. With a minimum order quantity of 1 and flexible pricing options, we are committed to meeting our customers' budget and timeline. We also offer a packaging option of clear sheet+sponge+wood carton to ensure the safety of our product during delivery.

We guarantee a delivery time of 20-30 days after order confirmation, and we accept various payment methods such as TT, PayPal, and Moneygram. Our supply ability of 200 sets per month ensures that we can meet your demand efficiently.

Our Salt Spray Test Chamber (New) maintains a temperature fluctuation of ±0.5℃ and a humidity deviation of ±2%R.H. The rising and cooling rates of RT →+85℃≤40 Min and RT→+0℃≤30 Min ensure quick and accurate testing results. The chamber also has a temperature range of 5℃ ～ +85℃ and a humidity range of 20~100%R.H, making it suitable for a wide range of testing requirements.

Experience the exceptional performance and reliability of the Salt Spray Test Chamber (New) from INFINITY. Contact us today for more information about our product and customized service. Trust us to be your partner in corrosion resistance testing.

Packing and Shipping:

After the salt spray test chamber (new) is manufactured and tested, it will be carefully packaged to ensure safe transportation. The packaging process includes the following steps:

• Step 1: The chamber will be cleaned and inspected to ensure that there are no damages or defects.
• Step 2: The chamber will be wrapped in a protective material, such as foam or bubble wrap.
• Step 3: The wrapped chamber will be placed in a sturdy cardboard box.
• Step 4: The box will be sealed and labeled with the product name, model number, and shipping information.
• Step 5: The box will be loaded onto a pallet and secured with straps.
• Step 6: The pallet will be shrink-wrapped to provide additional protection during transit.

The salt spray test chamber (new) will be shipped via a reputable freight company, and the shipping method will depend on the destination and customer's preference. Customers can also arrange for their own shipping if preferred.

Upon arrival, customers are advised to carefully inspect the packaging for any damages. If any damages are found, please contact us immediately for assistance.
