| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 41 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Equipment Design Principle: | The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum | Power: | AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW |
|---|---|---|---|
| Condenser Mode: | Air-cooled | Temperature Uniformity: | ≦2.0℃ |
| Application: | It Is Also Suitable For Accelerated Corrosion Tests, Such As Metals And Their Alloys, Metal Overlays (anodic And Cathodic), Conversion Overlays, Anodic Overlays, Organic Overlays On Metal Materials, Etc. | Weight (Kg): | About 300 About 400 About 500 About 600 About 700 |
| Test Standards: | GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment _ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Labor | Relative Humidity Fluctuation: | ±2%R.H |

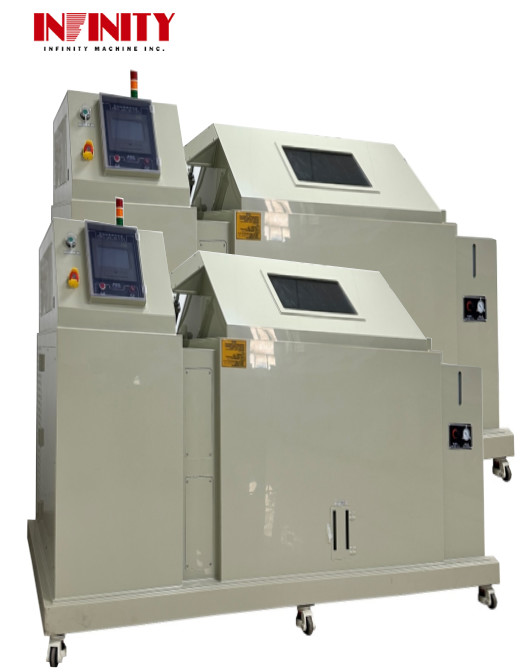

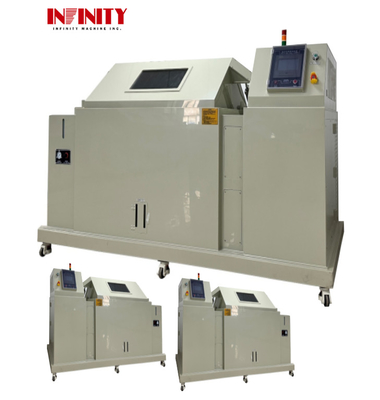

IE4160L Salt Spray Test Chamber With Safety Protection Device Other Models IE4160L
Product Description:The Salt Spray Test Chamber is a state-of-the-art equipment designed for conducting salt spray testing, also known as environmental salt spraying test. This machine is commonly used in various industries such as automotive, electronics, and aerospace to test the corrosion resistance of materials and coatings.
Our Salt Spray Test Chamber is designed to comply with environmental regulations, making it a safe and non-toxic option for conducting tests. It uses non-fluorinated Refrigerant R404A as its cooling medium, ensuring the safety of both the operator and the environment.
The Salt Spray Test Chamber (New) comes with five different models to meet the diverse testing needs of our customers. These models are: I E4160L, I E4190L, I E41120L, I E41160L, and I E41200L. Each model is equipped with advanced features and technology to provide accurate and reliable results.
The temperature range of our Salt Spray Test Chamber is 5℃ to +85℃, allowing for a wide range of testing conditions. It is suitable for conducting tests at various temperatures to simulate real-life conditions and determine the resistance of materials to corrosion.
The refrigeration compressor used in our Salt Spray Test Chamber is the top-of-the-line France Taikang Fully Closed Compressor. This ensures efficient and stable cooling performance, enabling the chamber to maintain the desired temperature range throughout the testing process.
In addition to temperature, our Salt Spray Test Chamber also allows for precise control of humidity levels. The humidity range of the chamber is 20~100%R.H, providing a suitable environment for conducting tests on a variety of materials and coatings.
Key Features:
With its advanced features, reliable performance, and compliance with environmental regulations, our Salt Spray Test Chamber (New) is the perfect solution for conducting salt spray testing. Contact us today to learn more about this product and how it can benefit your business.
Specification parameters:
| model | I E4160L | I E4190L | I E41120L | I E41160L | I E41200L |
| Temperature range | 5℃ ～ +85℃ | ||||
| Temperature departure | ±1℃ | ||||
| Temperature fluctuation | ±0.5℃ | ||||
| Temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| Relative humidity fluctuation | ±2%R.H | ||||
| Humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+85℃≤40 min RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching). |
||||
| Effective inner capacity | 150L | 270L | 576L | 800L | 1200L |
|
Internal box size: WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
Out box size: WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient clear observation of the test, temperature resistance of about 100 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe dry burning protection alarm Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
Test standards:
Refrigeration compressor: France Taikang Fully Closed Compressor
Equipment design principle: The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Humid Environment. This Equipment Test Is A Comparative Test, And The Test Results Cannot Predict The Long-term Results Of The Corrosion Resistance Of The Same Metal Material Used In This Environmental Condition. However, This Method Still Provides Valuable Information On The Properties Of Materials Exposed To Salt-contaminated Environments Similar To The Test Conditions. Compared With Traditional Accelerated Corrosion Test, Such As Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), Copper Accelerated Acetate Salt Spray Test (CASS)
Humidity deviation: ±2%R.H
Models:
Application Scene:
The Infinity IE 41 Series Salt Spray Test Chamber is specifically designed for testing the corrosion resistance of metal materials in salt-contaminated environments. It is widely used in industries such as electronics, automotive, aerospace, and military for quality control and product development purposes.
Features and Benefits:
Ordering Information:
To order the Infinity IE 41 Series Salt Spray Test Chamber, please provide the following information:
About INFINITY:
INFINITY is a professional manufacturer and supplier of environmental testing equipment in China. With years of experience and expertise, we are committed to providing high-quality and reliable products to our customers. Our product range includes salt spray test chambers, temperature and humidity test chambers, UV aging test chambers, and more. We also offer customization services to meet specific testing needs. Contact us today for more information!
1. Standard export wooden case packaging.
2. Foam and plastic wrapping to protect the product during transportation.
3. Customized packaging and labeling options available upon request.
4. Delivery time: 7-10 days after receiving payment.
5. Shipping options: By air, sea, or land.
6. We work with reputable shipping companies to ensure timely and safe delivery of our products.
