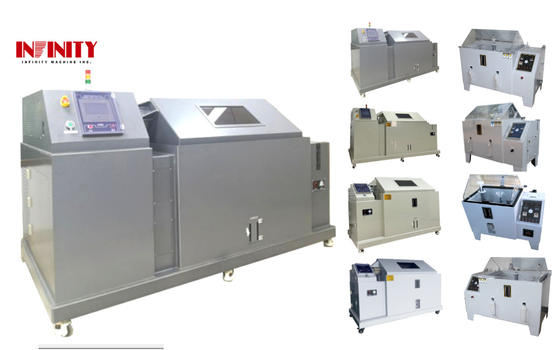

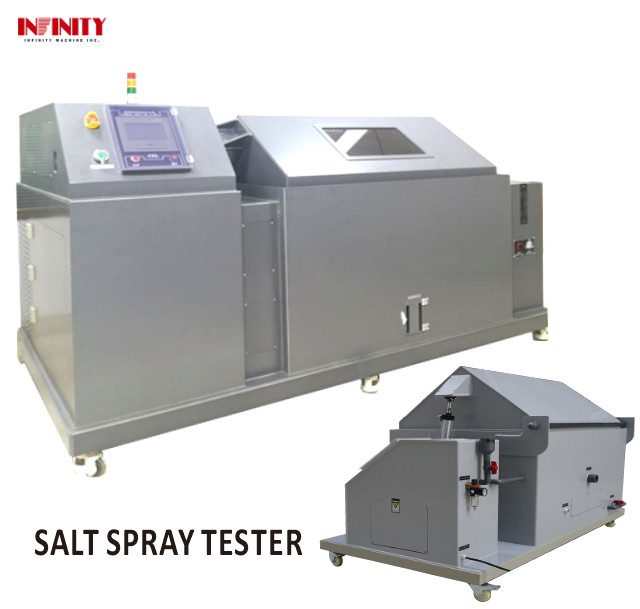

Salt Spray Test Chamber For Metals And Alloys With Automatic/Manual Water Filling

Product Description:

The Salt Spray Test Chamber (New) is a highly advanced and efficient testing equipment designed for conducting various corrosion resistance tests. It is also known as the Environmental Salt Spraying Tester or Salt Fog Spray Test Chamber.

Our Salt Spray Test Chamber (New) can be customized according to the specific needs of our customers. We understand that every testing requirement is unique and we are committed to providing the best solution for our clients.

The Salt Spray Test Chamber (New) is equipped with a PT 100 temperature sensor, ensuring high precision and low maintenance. This advanced sensor allows for accurate and reliable temperature control throughout the testing process.

The installation of our Salt Spray Test Chamber (New) can be done manually or automatically, depending on the customer's preference. The chamber is designed with easy water adding mechanisms, making it user-friendly and hassle-free.

The Salt Spray Test Chamber (New) offers the convenience of independent adjustment of greenhouse and laboratory. The air door control connection in the middle ensures a perfect structure and easy maintenance.

Our Salt Spray Test Chamber (New) is designed with energy-efficiency in mind. It can be controlled separately according to the test, ensuring minimal energy consumption.

The Salt Spray Test Chamber (New) is equipped with advanced automatic control features. It can perform various tests such as salt spray neutral test, corrosion resistance test, drying test, moisture test, static test, and salt spray, dry and wet, static mixing test.

The Salt Spray Test Chamber (New) offers a wide range of test options such as automatically cycling spray, continuous spray, and timing spray. It eliminates the need for moving products during testing, making it a convenient and efficient choice.

The Salt Spray Test Chamber (New) ensures precise temperature and humidity control with a temperature uniformity of ≦2.0℃, temperature departure of ±1℃, temperature fluctuation of ±0.5℃, and humidity uniformity of ±3%R.H.

With its special features and advanced design, the Salt Spray Test Chamber (New) is the ideal choice for conducting efficient and accurate corrosion resistance tests. Contact us now to learn more about this product and how it can meet your testing needs.

Applications:

Salt spray corrosion test is an essential procedure for determining the corrosion resistance of materials and coatings. INFINITY IE 40 Series Salt Spray Test Chamber is a high-quality corrosion testing equipment designed and produced by INFINITY in China. With its advanced technology and reliable performance, this salt spray test chamber is widely used in various industries for testing the corrosion resistance of different materials and coatings.

INFINITY is a leading manufacturer and supplier of corrosion testing equipment, known for its high-quality products and excellent customer service. With years of experience in the industry, we are committed to providing our customers with the best testing solutions to meet their specific needs.

The IE 40 Series is the latest model of INFINITY's salt spray test chambers, featuring advanced technology and improved performance. It is a reliable and efficient tool for testing the corrosion resistance of materials and coatings.

INFINITY IE 40 Series Salt Spray Test Chamber is designed and produced in China, with strict quality control measures to ensure its excellent performance and durability. We are proud to offer this high-quality product to customers all over the world.

Our salt spray test chamber has obtained CE and ISO certification, meeting international standards for quality and safety. This ensures that our customers can use our products with confidence and peace of mind.

We understand that every customer's needs are different, so we have no minimum order quantity for our products. Whether you need one salt spray test chamber or multiple units, we are happy to provide you with our best service.

The price of our salt spray test chamber is negotiable, depending on the quantity ordered and the specific requirements of customers. We always strive to offer competitive prices without compromising on the quality of our products.

For safe transportation, our salt spray test chamber is carefully packaged with clear sheet, sponge, and wood carton to protect it from damage. This packaging method also ensures that the product arrives at its destination in perfect condition.

After receiving your order, we will start the production process immediately. The delivery time of our salt spray test chamber is usually 20-30 days, depending on the quantity ordered. We will inform you of the estimated delivery time when we confirm your order.

We accept various payment methods, including TT, PayPal, and Moneygram. Customers can choose the most convenient and secure payment method for their orders.

With our advanced production equipment and skilled workers, we have the ability to produce 200 sets of salt spray test chambers per month. This ensures that we can meet the needs of our customers in a timely manner.

• RT → +95℃ ≤ 50 Min
• RT → +0℃ ≤ 30 Min
• Salt Spray (35℃) Dry (60℃, 20-30% RH) ≤ 30 Min
• Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min
• Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (Immediate Spray Required After Switching)

Our salt spray test chamber has a fast rising and cooling rate, ensuring efficient and accurate testing of the corrosion resistance of materials and coatings.

The temperature range of our salt spray test chamber is from 0℃ to +90℃, suitable for testing various materials and coatings in different temperature conditions.

Our salt spray test chamber requires different power input depending on the model, ranging from 7KW to 15KW. Please consult us for the specific power requirements for your chosen model.

• ● The Inner Wall Of C PVC Polyethylene Dilute Triangular Tank Box Is Used To Place The Dividing Frame, The Angle Of The Test Product Can Be Adjusted At Will, And The Number Of Test Pieces On All Sides Is Completely Consistent.
• ● The Bottom Of The Test Box. Uniuniform Opening On The Platform Surface Will Discharge The Spray Liquid Quickly, And Large Samples Can Be Placed On The Platform For Testing.

Our salt spray test chamber is designed with a special specimen holder that allows for easy adjustment of the angle of the test product and ensures consistency in the number of test pieces on all sides. The platform surface is also designed to quickly discharge the spray liquid and accommodate large samples for testing.

Our salt spray test chamber has a humidity uniformity of ±3%R.H, ensuring accurate and reliable testing results for the corrosion resistance of materials and coatings.

"INFINITY IE 40 Series Salt Spray Test Chamber - your trusted partner in corrosion testing."

Customization:

Specification parameters:

model	I E4060L	I E4090L	I E40120L	I E40160L	I E40200L
temperature range	0℃ ～ +90℃
temperature departure	±1℃
temperature fluctuation	±0.5℃
temperature uniformity	≦2.0℃
Humidity range	20~100%R.H
Humidity deviation	±2%R.H
relative humidity fluctuation	±2%R.H
humidity uniformity	±3%R.H
Temperature and humidity range
Rising and cooling rate	RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).
Test the valid content product	150L	270L	576L	800L	1200L
Internal box size: WxHxD(mm )	600*500*500	900*600*600	1200*1000*600	1600*1000*600	2000*1000*600
carton size: WxHxD(mm )	1780*950*1300	2080*1050*1350	2380*1450*1450	2780*1450*1450	3180*1450*1450
Box structure	● Test chamber box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees.
Water filling method	Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
specimen holder	● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing.
refrigeration compressor	France taikang fully closed compressor
cooling medium	Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
Condenser mode	air-cooled
Safety protection device	refrigeration system	Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection
	test box	Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection
	heating system	Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm
	other	earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function
weight (Kg)	About 300	About 400	About 500	About 600	About 700
source	AC380V;50Hz;7KW	AC 380;V50Hz;9KW	AC 380;V50Hz;11KW	AC 380;V50Hz;13KW	AC 380;V50Hz;15KW

Equipment design principle:

The Equipment is designed to simulate and increase the impact of the environment on metal materials exposed to salt pollution and can accelerate corrosion. The equipment includes the test method for exposing the sample cycle to salt spray, dry, wet and humid environment. This equipment test is a comparative test, and the test results cannot predict the long-term results of the corrosion resistance of the same metal material used in this environmental condition. However, this method still provides valuable information on the properties of materials exposed to salt-contaminated environments similar to the test conditions. Compared with traditional accelerated corrosion test, such as neutral salt spray test (NSS), acetate salt spray test (AASS), copper accelerated acetate salt spray test (CASS).

Humidity range: 20~100%R.H

Rising and cooling rate: RT →+95℃≤50 Min . RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min. Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching).

Refrigeration compressor: France Taikang Fully Closed Compressor

Features:

• Special designs can be made according to customer needs.
• PT 100 temperature sensor, with high precision and low maintenance.
• According to the customer installation place, water can be manually and automatically added for easy use.
• Adjustment greenhouse and laboratory independently, with air door control connection in the middle for perfect structure and easy maintenance.
• Energy-saving design, with separate control for testing.
• Can perform salt spray neutral test, corrosion resistance test, drying test, moisture test, and static test. Can also perform salt spray, dry and wet, and static mixing test with automatic control.
• Can automatically cycle spray, continuous spray, and timed spray without the need to move products, making salt spray, wet heat, and drying automatic circulation testing easy to use.

Key Features: Salt spray corrosion resistance testing chamber, Salt fog spray test chamber, Salt spray fog test chamber, Corrosion test chamber, Salt spray testing equipment, Corrosion testing equipment, Environmental testing equipment, Customization, High precision, Energy-saving design, Automatic control, Multiple test functions, Easy to use.

Packing and Shipping:

The salt spray test chamber (new) will be packaged in a sturdy wooden crate to ensure safe transportation. The crate will be lined with foam and bubble wrap to provide extra protection during shipping.

The dimensions of the crate will be customized according to the size of the chamber to minimize excess space and prevent any damage due to movement during transit.

The shipping method used will depend on the customer's location and preference. We have a reliable network of shipping partners that offer both air and sea freight options.

Once the chamber is ready for shipment, it will be securely strapped onto a pallet to prevent any movement during transportation. The pallet will also be wrapped with plastic film to protect against moisture and dust.

Our team will carefully handle the packaging and loading process to ensure that the chamber arrives at its destination in perfect condition.
