| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 40 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Special Designs Can Be Made According To Customer Needs. PT 100 Temperature Sensor, With High Precision And Low Maintenance. According To The Customer Installation Place Can Be Different Manually And Automatically Add Water, Easy To Use. Adjustment Gre | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Application: | It Is Also Suitable For Accelerated Corrosion Tests, Such As Metals And Their Alloys, Metal Overlays (anodic And Cathodic), Conversion Overlays, Anodic Overlays, Organic Overlays On Metal Materials, Etc. | Power: | AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW |
| Application Standards: | GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment ___ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Lab | Cooling Medium: | Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic |
| Specimen Holder: | ● The Inner Wall Of C PVC Polyethylene Dilute Triangular Tank Box Is Used To Place The Dividing Frame, The Angle Of The Test Product Can Be Adjusted At Will, And The Number Of Test Pieces On All Sides Is Completely Consistent. ● The Bottom Of The Test Box. | Box Structure: | ● Test Chamber Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Laboratory Outer Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Labo |

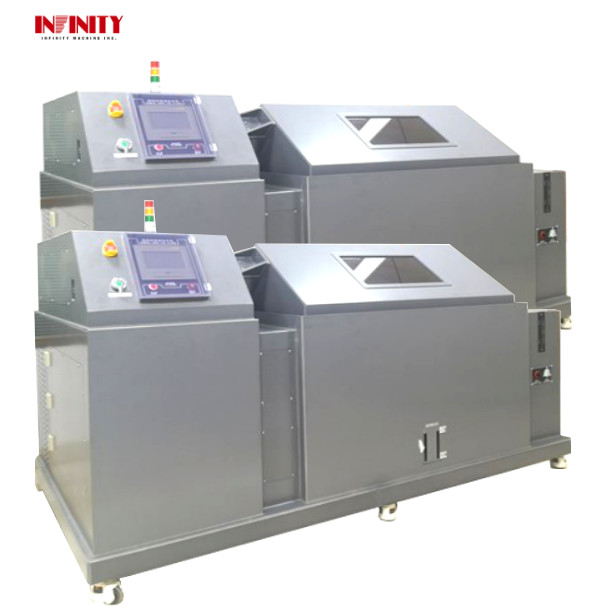

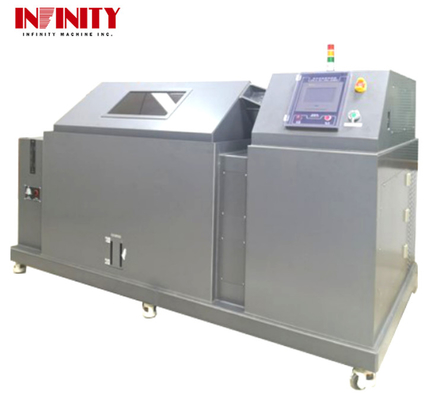

Salt Fog Spraying Test Chamber For Accurate Corrosion Simulation Testing IE 40 Series
Salt Spray Test Chamber (New) is a highly efficient and advanced testing equipment for corrosion resistance and durability of various materials. It is widely used in industries such as electronics, coatings, and automotive to test the performance of products under harsh environmental conditions.
The inner wall of the C PVC polyethylene dilute triangular tank box is used to place the dividing frame, allowing for adjustable angles for the test product. The number of test pieces on all sides is consistent, ensuring accurate and reliable results. The bottom of the test box has a uniform opening on the platform surface, allowing for quick discharge of the spray liquid. The platform can also accommodate large samples for testing.
With a humidity deviation of only ±2%R.H, Salt Spray Test Chamber (New) provides accurate and precise testing results.
The refrigeration compressor of Salt Spray Test Chamber (New) is manufactured by France Taikang, a renowned and trusted brand known for its high-quality and reliable products.
Salt Spray Test Chamber (New) ensures precise and stable temperature control with a temperature fluctuation of only ±0.5℃.
The humidity range of Salt Spray Test Chamber (New) is 20~100%R.H, providing a wide range of testing capabilities.
Don't miss out on this advanced and efficient Salt Spray Test Chamber (New) for all your corrosion testing needs. Contact us now for more information and to get your hands on this top-of-the-line testing equipment.
Are you looking for a reliable and high-performing environmental salt spraying tester? Look no further than INFINITY's IE 40 Series Salt Spray Test Chamber. This state-of-the-art equipment is perfect for testing the corrosion resistance of various materials in salt pollution environments.
Rest assured that our product is made with the highest quality materials and advanced technology in our manufacturing facility in China. We take pride in providing our customers with products that meet the highest standards of quality and efficiency.
Our Salt Spray Test Chamber has been certified by CE and ISO, ensuring its compliance with international standards of quality and safety. You can trust in the reliability and accuracy of our product for all your corrosion resistance testing needs.
We understand that every customer has different needs and requirements. That's why we offer a minimum order quantity of 1 for our Salt Spray Test Chamber. Whether you are a small business or a large corporation, we have the perfect solution for you.
We believe in providing our customers with the best value for their money. That's why we offer competitive prices for our Salt Spray Test Chamber. Contact us today to negotiate the price and get the best deal for your business.
Our Salt Spray Test Chamber is carefully packaged for safe transportation and delivery. It is wrapped in clear sheet and cushioned with sponge for protection, and then packed in a sturdy wood carton. This ensures that your product arrives in perfect condition.
We understand that time is of the essence for our customers. That's why we strive to deliver our products within 20-30 days after the order is confirmed. This allows you to start using our Salt Spray Test Chamber as soon as possible and keep your operations running smoothly.
We offer flexible payment options for our customers, including TT, PayPal, and Moneygram. You can choose the payment method that is most convenient for you and your business.
With a monthly supply of 200 sets, we can meet the demands of our customers in a timely manner. You can rely on us to provide you with the necessary equipment for your corrosion resistance testing needs.
Our Salt Spray Test Chamber is equipped with a high-quality refrigeration compressor from France Taikang. This fully closed compressor ensures efficient cooling and reliable performance for accurate testing results.
The humidity range of our Salt Spray Test Chamber is 20~100%R.H, making it suitable for a wide range of corrosion resistance testing applications. You can adjust the humidity according to your specific testing needs.
Our Salt Spray Test Chamber is designed to accurately reproduce the corrosion that occurs in outdoor salt pollution environments. This allows you to effectively test the corrosion resistance of your materials and products, ensuring their quality and durability.
Choose INFINITY's IE 40 Series Salt Spray Test Chamber for all your corrosion resistance testing needs. With our top-of-the-line equipment and reliable performance, you can trust in the accuracy and quality of our product. Contact us today to learn more and place your order!
Specification parameters:
| model | I E4060L | I E4090L | I E40120L | I E40160L | I E40200L |
| temperature range | 0℃ ～ +90℃ | ||||
| temperature departure | ±1℃ | ||||
| temperature fluctuation | ±0.5℃ | ||||
| temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| relative humidity fluctuation | ±2%R.H | ||||
| humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. |
||||
| Test the valid content product | 150L | 270L | 576L | 800L | 1200L |
|
WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC 380;V50Hz;9KW | AC 380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
RT →+95℃≤50 Min
RT→+0℃≤30 Min
Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min
Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.
Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching).
The salt spray test chamber (new) will be carefully packaged to ensure its safe delivery. It will be wrapped in protective materials and placed in a sturdy wooden crate to prevent any damage during transport.
For international shipping, the chamber will be shipped via air or sea freight depending on the customer's preference and delivery time frame. Our team will handle all necessary customs paperwork to ensure a smooth and efficient delivery process.
We also offer the option of express shipping for urgent orders, but additional fees may apply. Please contact us for more information on express shipping options.
Once the chamber is ready for shipment, we will provide the customer with a tracking number so they can monitor the delivery status. Upon arrival, please carefully inspect the package and notify us immediately of any damage or concerns.
For local delivery, the chamber will be transported by a trusted shipping company. Our team will coordinate the delivery schedule with the customer to ensure a convenient and timely delivery.
