| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 40 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Special Designs Can Be Made According To Customer Needs. PT 100 Temperature Sensor, With High Precision And Low Maintenance. According To The Customer Installation Place Can Be Different Manually And Automatically Add Water, Easy To Use. Adjustment Gre | Box Structure: | ● Test Chamber Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Laboratory Outer Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Labo |
|---|---|---|---|
| Application Standards: | GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment ___ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Lab | Humidity Deviation: | ±2%R.H |
| Weight (Kg): | About 300 About 400 About 500 About 600 About 700 | Water Filling Method: | Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier |
| Advantage: | It Can Better Reproduce The Corrosion Occurring In Outdoor Salt Pollution Environment | Condenser Mode: | Air-cooled |

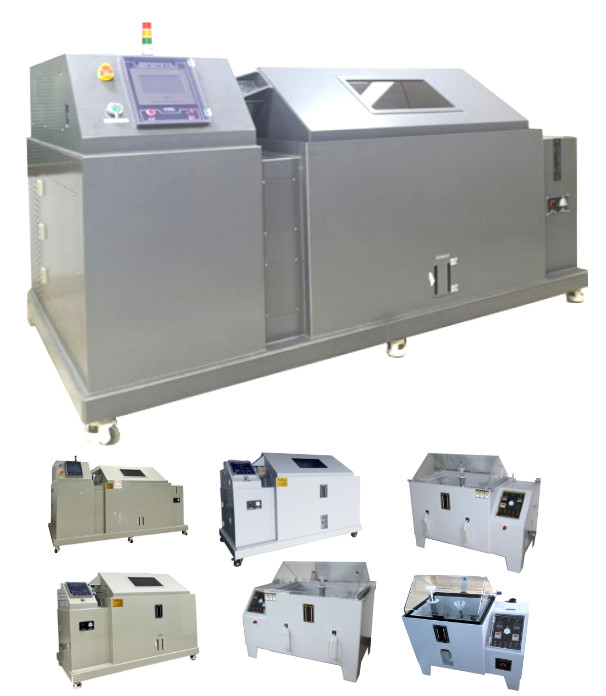

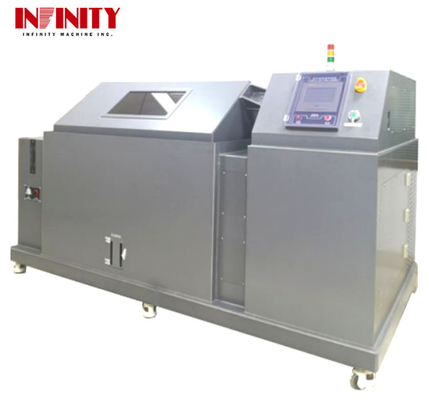

The Salt Spray Test Chamber (New) is a high-quality testing equipment that is used to simulate and evaluate the resistance of materials and coatings to salt fog corrosion. It is widely used in various industries such as electronics, automotive, aerospace, and military for quality control and product development purposes.
The Salt Spray Test Chamber (New) is made with high-quality imported CPVC polyethylene board with a thickness of 8mm. The material is resistant to high temperatures of up to 120 degrees, ensuring the safety and durability of the chamber. The laboratory outer box and sealing cover also use the same material, providing a sturdy and reliable structure for the chamber.
Specification parameters:
| model | I E4060L | I E4090L | I E40120L | I E40160L | I E40200L |
| temperature range | 0℃ ～ +90℃ | ||||
| temperature departure | ±1℃ | ||||
| temperature fluctuation | ±0.5℃ | ||||
| temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| relative humidity fluctuation | ±2%R.H | ||||
| humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. |
||||
| Test the valid content product | 150L | 270L | 576L | 800L | 1200L |
|
WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC 380;V50Hz;9KW | AC 380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |

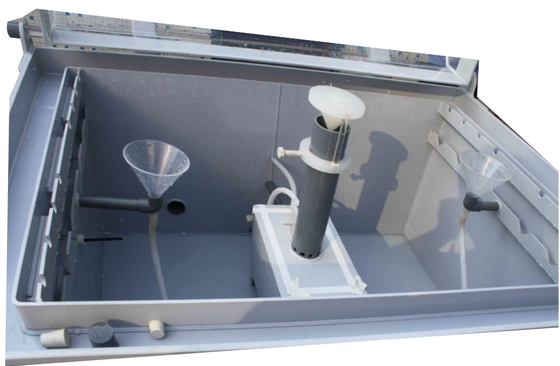

The Salt Spray Test Chamber (New) is designed with a unique specimen holder that allows for flexible and accurate testing. The inner wall of the CPVC polyethylene dilute triangular tank box is used to place the dividing frame, which can adjust the angle of the test product as needed. This holder ensures that the number of test pieces on all sides is consistent. The bottom of the test box also features a uniform opening on the platform surface that quickly discharges the spray liquid, making it suitable for testing large samples.
The Salt Spray Test Chamber (New) complies with the following application standards:
The Salt Spray Test Chamber (New) uses a non-fluorinated refrigerant R404A that complies with environmental regulations. This cooling medium is safe and non-toxic, ensuring the safety of both the environment and the operator.
The INFINITY IE 40 Series Salt Spray Test Chamber is a high-quality testing equipment used to simulate the effects of salt mist spray on various materials and products. It is ideal for testing the corrosion resistance and durability of products such as metal coatings, electronic components, and automotive parts.
With its advanced features and precise control, the IE 40 Series is the preferred choice for various industries such as automotive, electronics, and aerospace. It is designed and manufactured in China, meeting the highest quality standards and certified with CE and ISO.
The INFINITY IE 40 Series Salt Spray Test Chamber is used in various industries and applications, including:
The INFINITY IE 40 Series Salt Spray Test Chamber boasts the following features:
The salt spray test chamber (new) will be packaged in a sturdy wooden case to ensure safe transportation. Inside the case, the chamber will be wrapped in protective materials to prevent any damage during transit.
For shipping, we offer both air and sea freight options to meet our customers' needs. Our experienced logistics team will carefully handle all necessary documentation and logistics arrangements to ensure timely delivery of the chamber.
Once the chamber arrives at its destination, our team will provide installation and training services to ensure proper set-up and operation of the chamber. We also offer after-sales support and maintenance services to keep the chamber running smoothly.
