| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 40 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Cooling Medium: | Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic | Weight (Kg): | About 300 About 400 About 500 About 600 About 700 |
|---|---|---|---|
| Rising And Cooling Rate: | RT →+95℃≤50 Min 。 RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min。 Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching). | Humidity Uniformity: | ±3%R.H |
| Condenser Mode: | Air-cooled | Water Filling Method: | Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier |
| Advantage: | It Can Better Reproduce The Corrosion Occurring In Outdoor Salt Pollution Environment | Power: | AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW |

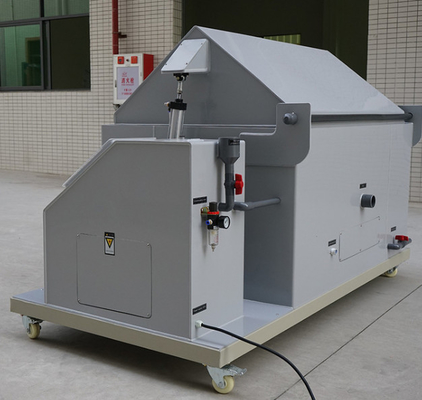

The salt spray test chamber is an advanced testing equipment used to evaluate the corrosion resistance of materials and coatings. It is widely used in industries such as automotive, aerospace, and electronics to ensure the quality and durability of products.
The salt spray test chamber (new) is a highly efficient and environmentally friendly corrosion testing equipment designed to simulate harsh natural conditions. It can provide a controlled and consistent environment for testing and evaluating the corrosion resistance of various materials and coatings.
Specification parameters:
| model | I E4060L | I E4090L | I E40120L | I E40160L | I E40200L |
| temperature range | 0℃ ～ +90℃ | ||||
| temperature departure | ±1℃ | ||||
| temperature fluctuation | ±0.5℃ | ||||
| temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| relative humidity fluctuation | ±2%R.H | ||||
| humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. |
||||
| Test the valid content product | 150L | 270L | 576L | 800L | 1200L |
|
WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC 380;V50Hz;9KW | AC 380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
Brand Name: INFINITY
Model Number: IE 40 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Water filling method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
Relative Humidity Fluctuation: ±2%R.H

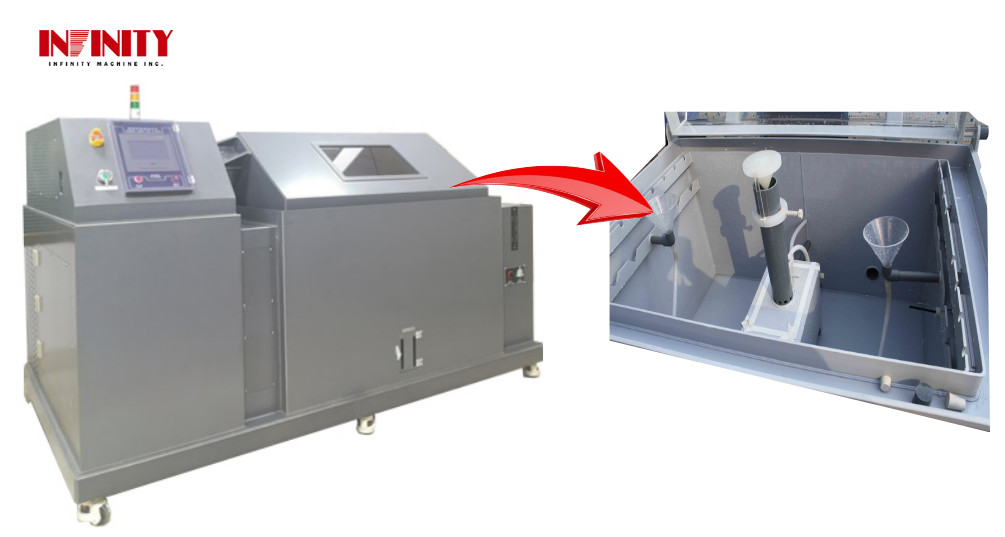

The INFINITY IE 40 Series Salt Spray Test Chamber is a state-of-the-art environmental testing equipment designed to simulate and evaluate the corrosion resistance of materials and coatings in a salt pollution environment. It is widely used in industries such as automotive, aerospace, electronics, and coatings.
The chamber is ideal for testing the durability and quality of products that are intended to be used in outdoor environments, where exposure to salt spray and fog can cause corrosion and damage. It can also be used for research and development purposes to improve the corrosion resistance of materials and coatings.
The following are some common applications and scenarios where the INFINITY IE 40 Series Salt Spray Test Chamber can be used:
The INFINITY IE 40 Series Salt Spray Test Chamber offers the following features:
The INFINITY Salt Spray Test Chamber (New) is designed to simulate and increase the impact of the environment on metal materials exposed to salt pollution, accelerating corrosion. This equipment includes a test method for exposing the sample cycle to salt spray, dry, wet and humid environment. It is a comparative test and the results cannot predict the long-term corrosion resistance of the same metal material used in this environmental condition. However, it provides valuable information on the properties of materials exposed to salt-contaminated environments similar to the test conditions.
Compared to traditional accelerated corrosion tests such as Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), and Copper Accelerated Acetate Salt Spray Test (CASS), our Salt Spray Chamber with Fog Collector offers a more efficient and accurate way of testing. The fog collector helps to collect and circulate the salt fog, ensuring a stable and uniform distribution throughout the chamber.
Equipment Design Principle: The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Humid Environment. This Equipment Test Is A Comparative Test, And The Test Results Cannot Predict The Long-term Results Of The Corrosion Resistance Of The Same Metal Material Used In This Environmental Condition. However, This Method Still Provides Valuable Information On The Properties Of Materials Exposed To Salt-contaminated Environments Similar To The Test Conditions. Compared With Traditional Accelerated Corrosion Test, Such As Neutral Salt Spray Test (NSS), Acetate Salt Spray Test (AASS), Copper Accelerated Acetate Salt Spray Test (CASS)
Power: AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW
Temperature Range: 0℃ ～ +90℃
Humidity Uniformity: ±3%R.H
Water Filling Method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
Keywords: Salt spray chamber, Salt fog spray test chamber, Salt spray chamber with fog collector, Salt spray chamber with fog collector price
Our Salt Spray Test Chamber (New) is carefully packaged and shipped to ensure it arrives at your facility in perfect condition. We understand the importance of proper packaging to protect delicate equipment during transit. Therefore, we follow industry-standard procedures to ensure your product is delivered safely and securely.
The Salt Spray Test Chamber (New) is first wrapped in a layer of protective film to prevent any scratches or damage during handling. It is then placed in a sturdy and durable wooden crate, which is specifically designed for shipping sensitive equipment. The crate is lined with foam padding to provide additional cushioning and shock absorption during transportation.
Additionally, all delicate components and accessories are individually wrapped and secured in the crate to prevent any movement or damage while in transit. The crate is then sealed and clearly labeled with handling instructions and product information for easy identification upon arrival.
We offer both domestic and international shipping options for our Salt Spray Test Chamber (New). For domestic shipments, we use reliable and reputable freight carriers to ensure timely delivery. For international shipments, we work with trusted logistics partners to handle all necessary customs and paperwork for a smooth and hassle-free delivery process.
Upon shipment, we will provide you with a tracking number so you can easily track the progress of your order. Our goal is to deliver your Salt Spray Test Chamber (New) to you in a timely and efficient manner.
Thank you for choosing our Salt Spray Test Chamber (New). We are confident that our careful packaging and shipping methods will ensure your product arrives safely and ready for use.
