| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 40 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Departure: | ±1℃ | Test The Valid Content Product: | 150L 270L 576L 800L 1200L |
|---|---|---|---|
| Humidity Uniformity: | ±3%R.H | Cooling Medium: | Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic |
| Humidity Deviation: | ±2%R.H | Rising And Cooling Rate: | RT →+95℃≤50 Min 。 RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min。 Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching). |
| Humidity Range: | 20~100%R.H | Equipment Design Principle: | The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum |

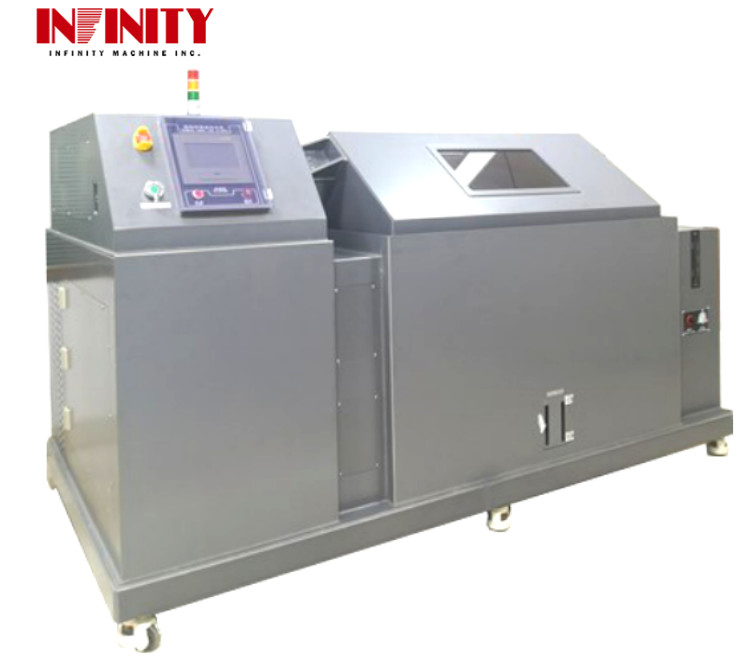

New 576L Salt Spray Test Chamber for Accelerated Corrosion Testing of Metal Materials
This is a high-quality, advanced salt spray test chamber designed for testing the corrosion resistance of various materials. It is perfect for industries such as automotive, electronics, and coatings.
The Salt Spray Test Chamber (New) is equipped with the latest technology and features to provide accurate and reliable results. It has a humidity deviation of ±2%R.H, ensuring precise testing. The box structure is made with imported CPVC polyethylene board with a thickness of 8mm, making it highly durable and temperature resistant up to 120 degrees.

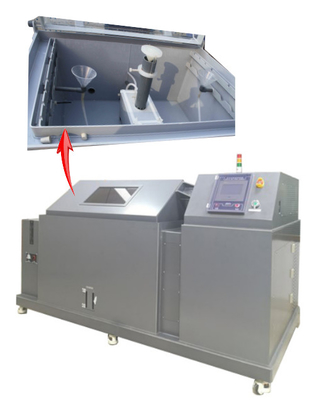

The test chamber box, laboratory outer box, and sealing cover are all made with imported CPVC polyethylene board with a thickness of 8mm. The laboratory sealing cover is equipped with a one-button automatic open cover and a transparent observation window. It also has a defogging device, allowing for easy observation of the test. The cover is also temperature resistant up to 120 degrees.
The temperature departure of the Salt Spray Test Chamber (New) is ±1℃, ensuring precise and accurate testing results.
The chamber offers an automatic/manual dual water supply mode, with automatic water inlet equipped with a water purifier. This ensures clean and pure water for testing purposes.
The Salt Spray Test Chamber (New) is specifically designed for salt spray fog testing, with a fog collector to collect the salt spray. It is also an environmental salt spraying tester, making it a highly versatile and efficient testing equipment.
Specification parameters:
| model | I E4060L | I E4090L | I E40120L | I E40160L | I E40200L |
| temperature range | 0℃ ～ +90℃ | ||||
| temperature departure | ±1℃ | ||||
| temperature fluctuation | ±0.5℃ | ||||
| temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| relative humidity fluctuation | ±2%R.H | ||||
| humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. |
||||
| Test the valid content product | 150L | 270L | 576L | 800L | 1200L |
|
WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC 380;V50Hz;9KW | AC 380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
Key Words: Environmental salt spraying tester, Salt spray corrosion testing equipment, Salt spray testing machine, Salt spray test chamber, Salt spray test box, Salt spray tester, Salt spray tester equipment, Salt spray test machine, Salt spray testing chamber, Salt spray testing box, Corrosion resistance tester, Corrosion testing equipment, Corrosion test machine, Corrosion test chamber, Salt fog tester, Salt spray fog testing machine, Salt spray corrosion resistance tester
Application standards: GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment ___ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test GBT2424.17-2008 Test Method For Salt Spray GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method GBT2423_4-2008 Test Method For Humid Heat Mixing IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution) IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray
Keywords: Salt fog spray test chamber, Salt spray chamber with fog collector, Salt spray fog test chamber, Salt spray corrosion test chamber, Salt spray test equipment, Salt spray test machine, Salt spray test cabinet, Salt spray testing chamber
The salt spray test chamber (new) is carefully packaged to ensure safe and secure delivery to our customers. Each unit is first wrapped in a layer of protective film to prevent scratches and damage during transportation. It is then placed in a sturdy wooden crate and securely fastened to prevent any movement or damage during transit.
For international shipments, the salt spray test chamber (new) is packed in compliance with all applicable regulations and standards. This includes proper labeling and documentation for customs clearance.
Once packaged, the salt spray test chamber (new) is then shipped via a trusted and reliable shipping company to ensure timely and efficient delivery to our customers. We also offer expedited shipping options for urgent orders.
Upon arrival, customers are advised to carefully inspect the unit for any damage during transit. In the unlikely event of any damage, please contact our customer service team immediately for assistance.
We take great pride in our packaging and shipping process to ensure that our customers receive their salt spray test chamber (new) in perfect condition. Thank you for choosing our product.
