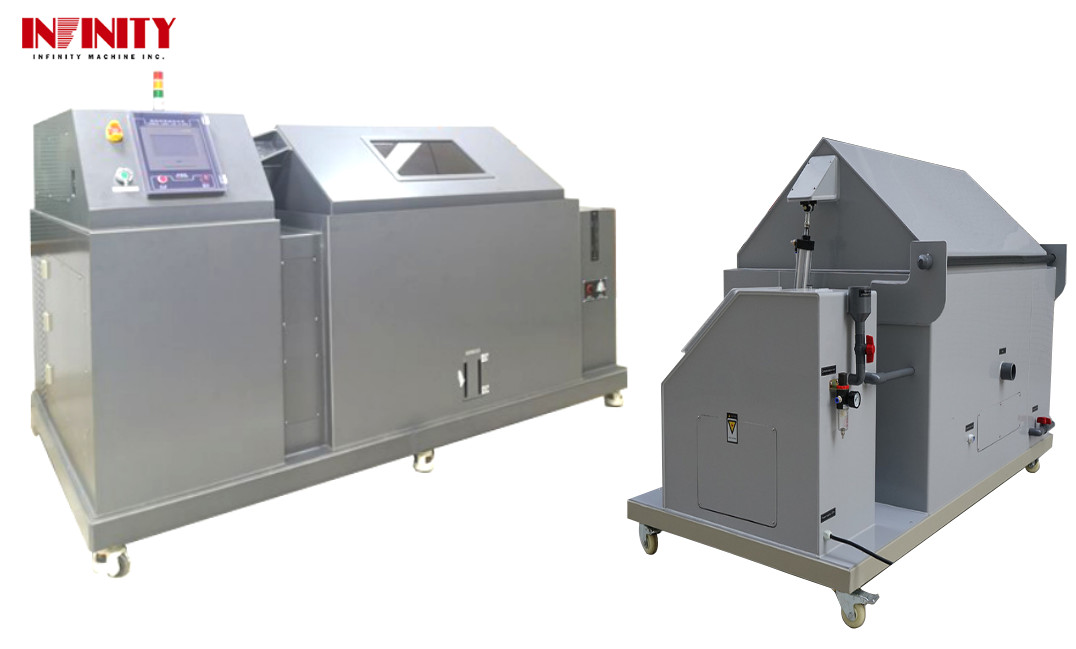

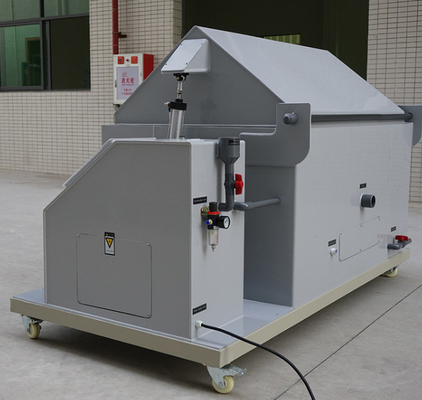

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply
Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply
Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IE 40 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Condenser Mode: Air-cooled Temperature Range: 0℃ ~ +90℃
Temperature Uniformity: ≦2.0℃ Rising And Cooling Rate: RT →+95℃≤50 Min 。 RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min。 Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching).
Water Filling Method: Automatic / Manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier Humidity Uniformity: ±3%R.H
Equipment Design Principle: The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum Temperature Fluctuation: ±0.5℃

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply 0

Product Description:

Salt Spray Test Chamber (New)

The Salt Spray Test Chamber is a state-of-the-art testing equipment designed to meet the most stringent industry standards. It is widely used for testing the corrosion resistance of materials and coatings in various industries, including electronics, military, and environmental research. This product has been developed in accordance with the following application standards:

  • GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test
  • GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment
  • GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test
  • GBT2424.17-2008 Test Method For Salt Spray
  • GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method
  • GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method
  • GBT2423_4-2008 Test Method For Humid Heat Mixing
  • IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (Sodium Chloride Solution)
  • IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray

The Salt Spray Test Chamber adopts an air-cooled condenser mode, which ensures efficient and stable performance. Its box structure is designed for maximum durability and convenience. The key features include:

  • Test Chamber Box: Made with imported CPVC polyethylene board, with a thickness of 8mm, and a temperature resistance of approximately 120 degrees. This material ensures the chamber's long-term resistance to corrosion and high temperatures.
  • Laboratory Outer Box: Also made with imported CPVC polyethylene board, with a thickness of 8mm, and a temperature resistance of approximately 120 degrees. This material provides additional protection to the chamber and ensures its stability during testing.
  • Laboratory Sealing Cover: Made with imported CPVC polyethylene board, with a thickness of 8mm, and equipped with a one-button automatic open cover. It also has a transparent observation window and a defogging device, making it easy to observe the test. The material has a temperature resistance of approximately 120 degrees.

The Salt Spray Chamber also comes with a fog collector, which helps in accurate testing of corrosion resistance. The specimen holder is designed for maximum convenience and efficiency. Some of its notable features are:

  • Dividing Frame: The inner wall of the CPVC polyethylene dilute triangular tank box is used for placing the dividing frame. This allows the angle of the test product to be adjusted easily, and ensures that the number of test pieces on all sides is consistent.
  • Test Box Platform: The bottom of the test box has a uniform opening on its platform surface, which allows for quick discharge of spray liquid. It also has enough space to accommodate large samples for testing.

Advantages: The Salt Spray Test Chamber (New) is designed to accurately reproduce the corrosion that occurs in outdoor salt pollution environments. Its advanced features and high-quality materials make it the ideal choice for conducting salt fog spray corrosion tests and other environmental testing procedures. With its reliable performance and adherence to industry standards, this product is a must-have for any laboratory or testing facility.

Keywords: Salt Spray Chamber with Fog Collector, Salt Fog Spray Corrosion Test Chamber, Environmental Salt Spraying Tester.

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply 1

Applications:

INFINITY IE 40 Series Salt Spray Test Chamber

Specification parameters:

model I E4060L I E4090L I E40120L I E40160L I E40200L
temperature range 0℃ ~ +90℃
temperature departure ±1℃
temperature fluctuation ±0.5℃
temperature uniformity ≦2.0℃
Humidity range 20~100%R.H
Humidity deviation ±2%R.H
relative humidity fluctuation ±2%R.H
humidity uniformity ±3%R.H

Rising and cooling rate

RT →+95℃≤50 min .

RT→+0℃≤30 min

Salt spray (35℃) dry (60℃.20~30%RH)≤30 min.

Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min.

Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching).

Test the valid content product 150L 270L 576L 800L 1200L

Internal box size:

WxHxD(mm )

600*500*500 900*600*600 1200*1000*600 1600*1000*600 2000*1000*600

carton size:

WxHxD(mm )

1780*950*1300 2080*1050*1350 2380*1450*1450 2780*1450*1450 3180*1450*1450
Box structure

● Test chamber box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees.

● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees.

● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device,

Convenient to observe the test, temperature resistance of about 120 degrees.

Water filling method Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier
specimen holder

● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent.

● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing.

refrigeration compressor France taikang fully closed compressor
cooling medium Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic
Condenser mode air-cooled
Safety protection device refrigeration system

Compressor overheating protection

Compressor overcurrent protection

Over pressure and low pressure protection

Condensate fan overheating protection

test box

Adjustable overtemperature protection alarm

Extreme overtemperature protection of the air conditioning channel

Fan, motor superheater relay protection

heating system

Heating pipe with dry burning protection

Abnormal water supply alarm

Abnormal drainage alarm

other

earth leakage protection

Overload and short-circuit protection

The power supply lacks the reverse phase protection function

weight (Kg) About 300 About 400 About 500 About 600 About 700
source AC380V;50Hz;7KW AC 380;V50Hz;9KW AC 380;V50Hz;11KW AC 380;V50Hz;13KW AC 380;V50Hz;15KW

Introduction

The INFINITY IE 40 Series Salt Spray Test Chamber is a top-of-the-line corrosion testing equipment that is designed to accurately replicate the harsh outdoor salt pollution environment. It is a must-have for industries that require durability and resistance to corrosion, such as automotive, electronics, and aerospace industries.

Application

The Salt Spray Test Chamber is used for testing the corrosion resistance of various materials, coatings, and products. It is commonly used for quality control and research and development purposes in industries such as automotive, electronics, marine, and aerospace.

Features and Benefits

The IE 40 Series Salt Spray Test Chamber offers the following features and benefits:

  • Accurate Reproduction of Salt Pollution Environment: It can better reproduce the corrosion occurring in outdoor salt pollution environment, providing reliable and precise test results.
  • Temperature and Humidity Control: The chamber has a temperature deviation of ±1℃ and humidity deviation of ±2%R.H, ensuring consistent and accurate testing conditions.
  • Durable Construction: Made with high-quality materials, the chamber is built to withstand harsh conditions and last for years.
  • Easy to Use: The user-friendly interface and simple operation make it easy for anyone to use the chamber.
  • Customizable Options: The chamber can be customized according to specific testing needs and requirements.
Scenario

Imagine you are a manufacturer of electronic components. Your products are used in outdoor environments and are constantly exposed to salt pollution. To ensure the durability and corrosion resistance of your products, you need to perform salt spray testing. You decide to invest in the INFINITY IE 40 Series Salt Spray Test Chamber to accurately replicate the harsh conditions and ensure the quality of your products.

You place an order for the chamber with a minimum quantity of 1, and negotiate the price with the supplier. The chamber is delivered to your factory in a secure packaging of clear sheet, sponge, and wood carton within 20-30 days. You make the payment through TT, PAYPAL, or Moneygram, depending on your preference.

Upon receiving the chamber, you set the temperature and humidity levels to meet the testing requirements and start the test. The accurate temperature and humidity control of the chamber ensure consistent and reliable results. After the test is completed, you are satisfied with the performance of the chamber and the high-quality results it has provided.

The INFINITY IE 40 Series Salt Spray Test Chamber has become an essential tool in your quality control process, ensuring the durability and corrosion resistance of your products. And with a supply ability of 200 sets per month, you can easily meet the demands of your production process.

Salt Spray Test Chamber New with Water Filling Method of Automatic / Manual Dual Supply 2

Customization:

Brand Name: INFINITY
Model Number: IE 40 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature Range: 0℃ ~ +90℃
Condenser Mode: Air-cooled
Weight (Kg): About 300 About 400 About 500 About 600 About 700
Temperature Uniformity: ≦2.0℃
Box Structure:
  • Test Chamber Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees.
  • Laboratory Outer Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees.
  • Laboratory Sealing Cover: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, One-button Automatic Open Cover, With Transparent Observation Window, Combined With The Defogging Device, Convenient To Observe The Test, Temperature Resistance Of About 120 Degrees.
Key Features:
  • Salt spray chamber with fog collector
  • Salt fog spray corrosion test chamber
  • Salt spray chamber with fog collector
  • Salt spray test chamber with humidity control


Packing and Shipping:

Packaging and Shipping

The salt spray test chamber (new) is carefully packaged to ensure safe delivery to our customers. The following packaging materials and methods are used:

  • Polystyrene foam and bubble wrap are used to protect the chamber from impact and shock during transport.
  • The chamber is then placed in a sturdy wooden crate for added protection.
  • Each crate is securely strapped and labeled with handling instructions and product information.

For shipping, we use reliable and trusted carriers to ensure prompt and efficient delivery. Our team also carefully inspects each chamber before shipment to ensure its quality and functionality.

With our careful packaging and shipping methods, you can trust that your salt spray test chamber (new) will arrive in excellent condition and ready to use.
