| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE 40 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Equipment Design Principle: | The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum | Humidity Range: | 20~100%R.H |
|---|---|---|---|
| Specimen Holder: | ● The Inner Wall Of C PVC Polyethylene Dilute Triangular Tank Box Is Used To Place The Dividing Frame, The Angle Of The Test Product Can Be Adjusted At Will, And The Number Of Test Pieces On All Sides Is Completely Consistent. ● The Bottom Of The Test Box. | Cooling Medium: | Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic |
| Temperature Fluctuation: | ±0.5℃ | Box Structure: | ● Test Chamber Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Laboratory Outer Box: Using Imported CPVC Polyethylene Board, Thickness Of 8mm, Temperature Resistance Of About 120 Degrees. ● Labo |
| Rising And Cooling Rate: | RT →+95℃≤50 Min 。 RT→+0℃≤30 Min Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min。 Dry (60℃, 20-30% RH) And Wet (50℃, 95% + / -5% RH) For 15 Min.Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) For 30 Min (immediate Spray Required After Switching). | Temperature Departure: | ±1℃ |

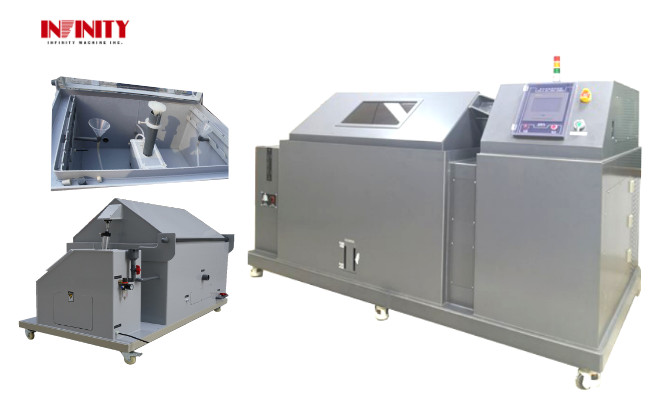

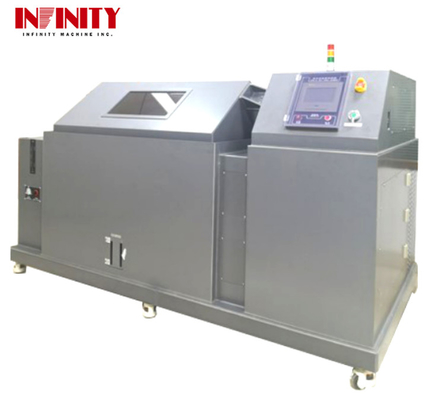

Salt Fog Spray Corrosion Test Chamber Simulate Salt Pollution with Precision
Our Salt Spray Test Chamber (New) is a state-of-the-art instrument designed for testing the corrosion resistance of materials under harsh environmental conditions. As an essential tool for quality control and product development, this chamber is widely used in industries such as automotive, aerospace, and electronics.
Our chamber uses a non-fluorinated refrigerant R404A, which complies with environmental regulations and is safe and non-toxic. This ensures the safety of both the operators and the environment.
The temperature inside the chamber can be controlled precisely, with a rising and cooling rate of RT →+95℃≤50 Min and RT→+0℃≤30 Min. This allows for accurate and efficient testing of materials under extreme temperatures.
In addition, the chamber also has the capability of conducting a Salt Spray (35℃) Dry (60℃, 20~30%RH) test in ≤30 Min, as well as a combination of Dry (60℃, 20-30% RH) and Wet (50℃, 95% + / -5% RH) for 15 Min, followed by a Moistet (50℃, 95% + / -5% RH) Salt Spray (35℃) test for 30 Min (immediate spray required after switching). This provides a comprehensive testing environment for various materials.
Our chamber has a ±2%R.H humidity fluctuation, ensuring the accuracy and consistency of the test results.
The chamber features an automatic/manual dual water supply mode, allowing for flexibility in water filling. The automatic water inlet comes with a set of water purifier, ensuring the purity of the water used in the test.
The humidity inside the chamber can be adjusted within a range of 20~100%R.H, providing a wide range of testing conditions for different materials.
Our Salt Spray Test Chamber (New) is a reliable and efficient instrument for testing the corrosion resistance of materials. With its advanced technology and precise control, it is an essential tool for any quality control and product development process. Don't hesitate to contact us for more information or to request a quote.
Specification parameters:
| model | I E4060L | I E4090L | I E40120L | I E40160L | I E40200L |
| temperature range | 0℃ ～ +90℃ | ||||
| temperature departure | ±1℃ | ||||
| temperature fluctuation | ±0.5℃ | ||||
| temperature uniformity | ≦2.0℃ | ||||
| Humidity range | 20~100%R.H | ||||
| Humidity deviation | ±2%R.H | ||||
| relative humidity fluctuation | ±2%R.H | ||||
| humidity uniformity | ±3%R.H | ||||
| Rising and cooling rate |
RT →+95℃≤50 min . RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. |
||||
| Test the valid content product | 150L | 270L | 576L | 800L | 1200L |
|
WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
|
WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
| Box structure |
● Laboratory outer box: using imported CPVC polyethylene board, thickness of 8mm, temperature resistance of about 120 degrees. ● Laboratory sealing cover: using imported CPVC polyethylene board, thickness of 8mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient to observe the test, temperature resistance of about 120 degrees. |
||||
| Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
| specimen holder |
● The inner wall of C PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● The bottom of the test box. Uniuniform opening on the platform surface will discharge the spray liquid quickly, and large samples can be placed on the platform for testing. |
||||
| refrigeration compressor | France taikang fully closed compressor | ||||
| cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
| Condenser mode | air-cooled | ||||
| Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
| test box |
Adjustable overtemperature protection alarm Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
| heating system |
Heating pipe with dry burning protection Abnormal water supply alarm Abnormal drainage alarm |
||||
| other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
| weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
| source | AC380V;50Hz;7KW | AC 380;V50Hz;9KW | AC 380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
The INFINITY IE 40 Series Salt Spray Test Chamber is specifically designed for conducting accelerated corrosion tests on metals and their alloys, metal overlays (anodic and cathodic), conversion overlays, anodic overlays, organic overlays on metal materials, etc. It is also suitable for other tests such as salt fog spray test, salt spray corrosion resistance testing, and salt spray chamber with fog collector.
The salt spray test chamber (new) is carefully packaged to ensure safe delivery to our customers. It is packed in a sturdy wooden crate, with proper cushioning materials to protect against any damage during transportation.
The dimensions of the crate are 120cm x 80cm x 160cm, and the weight is approximately 300kg.
We offer both air and sea shipment options, depending on the customer's preference and location. For air shipment, the chamber is packaged and loaded onto a pallet, and then securely strapped and wrapped in protective materials.
For sea shipment, the chamber is loaded onto a shipping container and secured with proper bracing and tie-downs to prevent any movement during transit.
Upon arrival at the destination, our customers can expect their salt spray test chamber (new) to be in perfect condition, ready for immediate use.
