| Place of Origin: | China |
| Brand Name: | Infinity |
| Certification: | CE,ISO |
| Model Number: | IE52 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1000~100000 PC |
| Packaging Details: | WOOD PACK |
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T,D/P,L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET PER MONTH |
| Product Name: | IPX5 IPX6 Strong Water Spray Environmental Test Chamber | Outter Size:: | 1220*4040*1820mm(Including Water Pipe) |
|---|---|---|---|
| Inner Box Size:: | 1000* 1000* 1000mm | Water Tank Capacity: | About 58L |
| Sample Turntable Size: | DIA 600MM | IPX5 Water Spray Aperture:: | DIA 6.3MM |
| IPX6 Water Spray Aperture:: | DIA 12.5MM | Control System:: | Touch Type,7-inch Touch Screen + PLC |
| High Light: | IPX6 Strong Water Spray Test Chamber,WaterproofWater Spray Test Chamber,Touch Screen Water Spray Test Chamber |
||

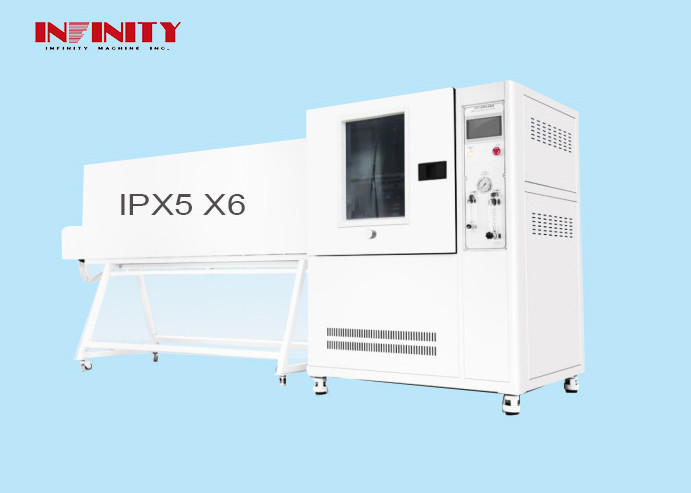

Strong Water Spray Test Chamber is a specialized testing perfomance of waterproof designed for utdoor lamps, household appliances, auto parts and other electronic and electrical products.
The main function of waterproof tester IP56 is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated water spray climate conditions. . After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.
Key feature:
8.here is a sample power socket (AC220V, 10A) installed in the equipment box. The power on and off time of the sample power can be controlled by the program: power outage (0-999min) - power on (0 -999min) - power outage (0-999min), which is suitable for samples in Power needs to be turned on and off during the test.
9.The core control system uses a 7-inch touch screen + Panasonic PLC. The electrical components use imported brands such as LS and Omron. The wiring technology meets the national standards. The electrical board layout is reasonable, the wiring is firm, and the markings are clear.
10.LED waterproof lighting is installed in the test chamber to facilitate observation of test samples.
The equipment comes with its own water tank and circulates water, so there is no need to build a professional waterproof test room. There are high and low water level alarm monitors in the water tank, which can effectively prevent the water pump from drying out due to lack of water and causing damage.

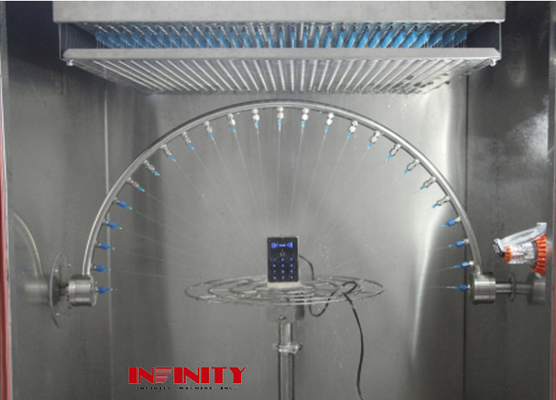

11.The spray gun can swing up and down, and coupled with the rotation of the turntable, it can basically achieve full spraying on the sample surface.
| Parameter | Value |
| Equipment external dimensions:(W*D*H) | 1220*4040*1820mm(contain water pipe) |
| Inner box size:(W*D*H) | 1000* 1000* 1000mm |
| Capacity for water can: | about58L |
| Sample platform turning size: | Dia 600mm |
| IPX5 Spray aperture: | Dia 6.3mm |
| IPX6Spray aperture: | Dia 12.5mm |
| Function parameter | |
| IPX5 squirt flow: | 12.5±0.625(L/min) |
| IPX6 squit flow: | 100±5(L/min) |
| Flow control way: | Manual adjustment (rotameter) |
| Spray distance: | About 2.7m (The distance between the nozzle and the center of the turntable) |
| How to fix the spray gun: | Mechanical fixing (programming, adjusting spray gun angle) |
| Turntable max load: | 50KG |
| Turntable lifting range: | Not liftable (fixed) |
| Water spray method | Circular water spray |
| Water, electricity and gas parameters | |
| Control system: | (Touch type) 7-inch touch screen + PLC |
| Power supply for test samples: | 220V |
| Equipment power supply: | 380V 50Hz 3.0KW(or specify) |
| Security protection functions: | Leakage protection, water shortage protection, short circuit protection |
| Water source requirements: | Users are required to configure a water source for the equipment at the installation site, with the water pressure not less than 0.2Mpa, and install a 4-point faucet. The faucet should be no more than 2 meters away from the equipment. |
Our Infinity IPX5 IPX6 Strong Water Spray Test Chamber offers a range of customized services to meet your specific needs.
Whether you require an environmental climatic cabinet, a water spray test chamber for metal parts, or a temperature and humidity test chamber for car spare parts, we have you covered.
Support and Services:
At Strong Water Spray Test Chamber Climate Test Corporation, we are committed to providing exceptional technical support and services for our Strong Water Spray Test Chamber Climate Test Chamber product. We understand the importance of reliable and accurate testing equipment for our customers, and we strive to ensure that our products meet the highest quality standards.
For technical support or services, please don't hesitate to contact us. Our team is dedicated to providing timely and effective solutions to meet your needs. Thank you for choosing Climate Test Corporation for your testing equipment needs.
To ensure safe and secure delivery of our Climate Test Chamber Strong Water Spray Test Chamber , we have implemented a thorough packaging and shipping process.
Our Strong Water Spray Test Chamber is carefully packaged to protect it from any potential damage during transportation. The following steps are taken to ensure its safe arrival:
