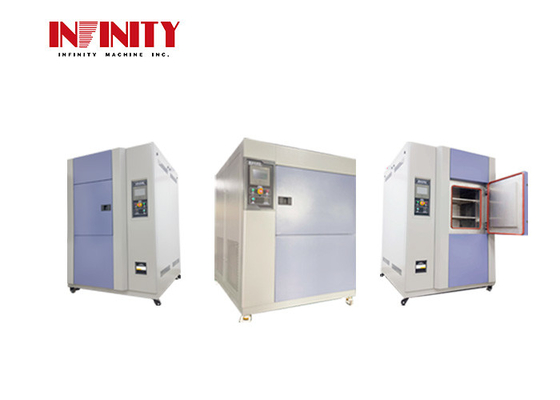

250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃

250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃

  • 250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃
  • 250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃
250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE31408L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100USD~5000USD
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T,D/P,L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Thermal Recovery Time: Within 5Minc Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
Warm Box: ●External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Wall Material :SUS304# Stainless Steel Plate ● Insulation Material: Hard Polyurethane Foam In Carton Size : WxHxD(mm): 1800x2000x2500
Product Name: Programmable Thermal Shock Test Chamber Sample Stand: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Cooling Rate (Cold Storage Area): It Takes About 55min For RT To Drop To -40℃ Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Programmable Thermal Shock Test Chamber

,

250L Thermal Shock Test Chamber

Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃

Programmable Thermal Shock Test Chamber



Model Number: IE31408L

250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃ 0

Product Description:

For users of the product machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.

Features:

  • Product Name: Environmental Test Chamber
  • Product name: Programmable Thermal Shock Test Chamber
  • Refrigeration compressor: German Bitzer Semi-compact Compressor
  • Thermal recovery time: Within 5Minc
  • Carton size : WxHxD(mm): 1800x2000x2500
  • Temperature fluctuation: ±1℃
  • Climate Test Chamber: Environmental Test Systems, Environmental Testing Equipment


Technical Parameters:

Model Number IE31408L
Temperature range -40℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃

Thermal recovery time

Within 5Minc

Heating rate(thermal reserve zone)

It takes about 40 minutes for RT to rise to +150℃

Cooling Rate(Cold storage area)

It takes about 60min for RT to drop to -40℃

Interior dimension :WxHxD(mm)

600×850×800

Carton size :WxHxD(mm)

1800x2000x2500
Warm Box

●External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate

● Insulation material: hard polyurethane foam insulation layer + glass fiber

Box Door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation
Sample Stand Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.

Refrigeration compressor



German Bitzer semi-compact compressor

Coolants



Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system



Water-cooled



Safety protection device Heater anti-burning protection; Heater overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection
Power Supply AC380;V50Hz;25KW


Support and Services:



Our Programmable Thermal Shock Test Chamber provides technical support and service to ensure our products operate efficiently and reliably. Our experienced technicians are available to answer your questions and provide assistance in setting up and maintaining your equipment.

We offer a comprehensive range of technical support and service, including:

  • Installation and setup services
  • On-site troubleshooting and maintenance
  • Telephone and email support
  • Remote monitoring of equipment
  • Software updates and upgrades
  • Replacement parts and consumables

Our team of experts is available to help you with any questions or problems you may have. We are committed to providing the highest level of support and service for your Programmable Thermal Shock Test Chamber.



Packing and Shipping:



Packaging and Shipping for Programmable Thermal Shock Test Chamber:

  • Programmable Thermal Shock Test Chamber is packaged with professional foam and shock-proof material.
  • It is shipped in a wooden box of appropriate size.
  • The wooden box is then placed in a sealed container with a damping material.
  • The container is fixed with a rope to ensure its safety.



.
