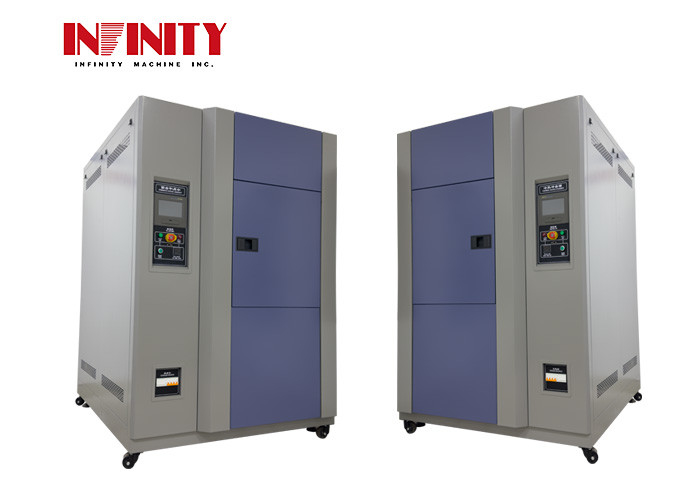

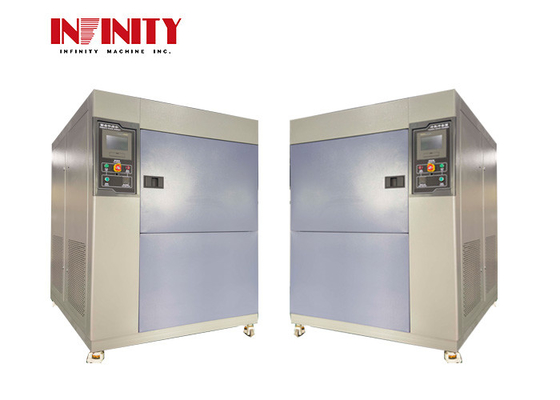

Programmable Thermal Shock Test Chamber Air cooled 250L

Programmable Thermal Shock Test Chamber Air cooled 250L

  • Programmable Thermal Shock Test Chamber Air cooled 250L
  • Programmable Thermal Shock Test Chamber Air cooled 250L
Programmable Thermal Shock Test Chamber Air cooled 250L
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE31100L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100USD~5000USD
Packaging Details: Master carton
Delivery Time: 200sets per monthes
Payment Terms: T/T,D/P,L/C
Contact Now
Detailed Product Description
Heating Rate (thermal Reserve Zone): It Takes About 35min For RT To Rise To +150℃ Carton Size : WxHxD(mm): 1480×1485×2050
Box Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature Cooling Rate (Cold Storage Area): It Takes About 55min For RT To Drop To -40℃
Temperature Uniformity: ≦2.0℃ Condenser System: Air-cooled
Warm Box: ●External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Wall Material :SUS304# Stainless Steel Plate ● Insulation Material: Hard Polyurethane Foam In Inspection Window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Thermal Shock Test Chamber Air cooled

,

250L Thermal Shock Test Chamber

Programmable Thermal Shock Test Chamber Model Number IE31100L Temperature Uniformity ≦2.0℃

Programmable Thermal Shock Test Chamber



Model Number: IE31100L

Programmable Thermal Shock Test Chamber Air cooled 250L 0

Product Description:

Programmable Thermal Shock Test Chamber for users of the product machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.



Features:

  • Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity
    Easy to operate: Programmable color LCD touch controller includes PID control; Experimental data recording and processing methods are flexible.
    High reliability: The key parts are imported parts to ensure service life and reliability.

Technical Parameters:

Model Number IE31100L
Temperature range -40℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃

Thermal

recovery time

Within 5Minc

Heating rate (thermal reserve zone)

It takes about 35min for RT to rise to +150℃

Cooling Rate (Cold storage area)

It takes about 55min for RT to drop to -40℃

Interior dimension :WxHxD(mm)

500x400x500

Carton size :WxHxD(mm)

1480×1485×2050
Warm Box

●External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate

● Insulation material: hard polyurethane foam insulation layer + glass fiber

Box Door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation
Sample Stand Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.

Refrigeration compressor



France Taikang fully closed compressor

Coolants



Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system







Air-cooled



Safety protection device Heater anti-burning protection; Heater overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection
Power Supply AC380;V50Hz;18KW


Applications:

Infinity Machine's IE31100L Programmable Thermal Shock Test Chamber is a universal environmental testing machine for aging test, widely used in Programmable Thermal Shock Test Chamber . This model of environmental test chamber is made in China and has a CE and ISO certification. It comes with a master carton and 1 minimum order quantity. The box door is for a single door and it has a heating wire in the door frame to prevent condensation at low temperature. The heating rate (thermal reserve zone) is 35 minutes for RT to rise to +150℃. The thermal recovery time is within 5 minutes. There are various safety protection devices such as heater anti-burning protection, heater overcurrent protection, circulating fan overcurrent overload protection, compressor high pressure protection, compressor overheat protection, compressor overcurrent protection, overvoltage underinverse-phase protection, circuit breaker, and leakage protection.
Infinity Machine's IE31100L Programmable Thermal Shock Test Chamber can be used for various temperature humidity tests, such as aging test, environmental test, temperature test, and humidity test. It is a reliable and efficient environmental testing machine with precise temperature and humidity control. It is ideal for testing products in extreme temperature and humidity conditions. The thermal shock test chamber is used to simulate a wide range of temperature and humidity conditions, so that products can be tested in different environments.
Infinity Machine's IE31100L Programmable Thermal Shock Test Chamber is the perfect environmental testing machine for those who need to test products in extreme temperature and humidity conditions. It is reliable, efficient and precise, and can be used for a variety of temperature and humidity tests. It is a must-have for any Programmable Thermal Shock Test Chamber.








Support and Services:

  • We provide technical support and services for Programmable Thermal Shock Test Chamber products, including:
  • Installation guidance and training
  • Maintenance and repair services
  • Calibration services
  • Software and firmware updates
  • Replacement parts and components
  • Troubleshooting and technical assistance



Packing and Shipping:

Packaging and Shipping the Programmable Thermal Shock Test Chamber:

  • Package the chamber in a wooden pallet box, lined with bubble wrap for shock absorption.
  • Secure the chamber to the pallet with stretch wrap and/or strapping.
  • Cover the chamber with a protective plastic sheeting.
  • Label the box with “Fragile” and “Handle with Care” stickers.
  • Ship the chamber via a reputable freight carrier.
