Programmable Thermal Shock Test Chamber Model Number IE3180L Energy Saving

Programmable Thermal Shock Test Chamber Model Number IE3180L Energy Saving

  • Programmable Thermal Shock Test Chamber  Model Number IE3180L Energy Saving
  • Programmable Thermal Shock Test Chamber  Model Number IE3180L Energy Saving

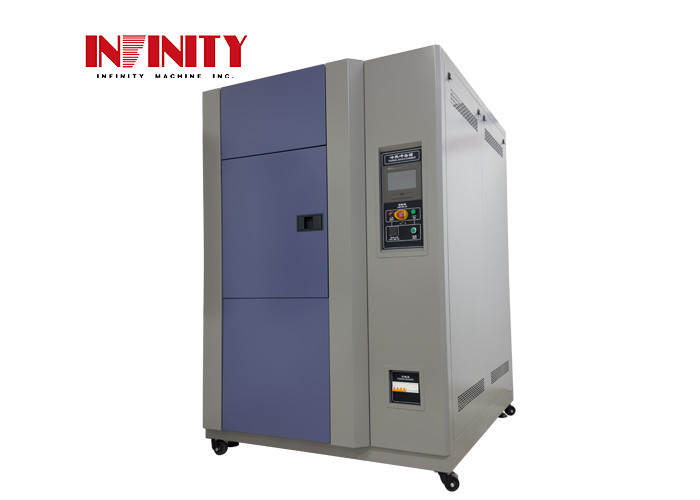

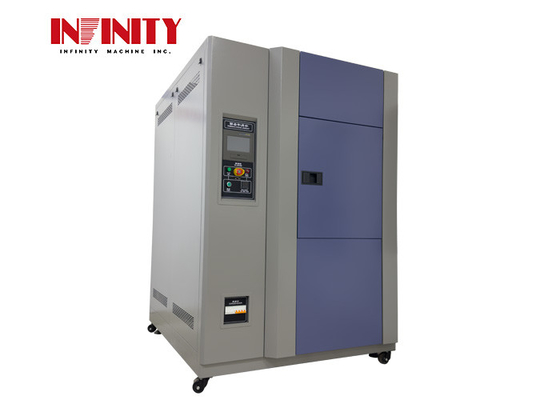

Programmable Thermal Shock Test Chamber  Model Number IE3180L Energy Saving
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE3180L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Contact Now
Detailed Product Description
Refrigeration Compressor: France Taikang Fully Closed Compressor Box Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature
Thermal Recovery Time: Within 5Minc Safety Protection Device: Heater Anti-burning Protection; Heater Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Overcurrent Protection; Overvoltage Underinverse-phase Protectio
Warm Box: ●External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Wall Material :SUS304# Stainless Steel Plate ● Insulation Material: Hard Polyurethane Foam In Temperature Range: ± 0.5℃
Product Name: Programmable Thermal Shock Test Chamber Capacity: 250L
Humidity: 85%~98%RH Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Programmable Thermal Shock Test Chamber

,

Thermal Shock Test Chamber Energy Saving



Programmable Thermal Shock Test Chamber



Model Number:IE3180L

Programmable Thermal Shock Test Chamber  Model Number IE3180L Energy Saving 0





Product Description:

Programmable Thermal Shock Test Chamber for users of the product machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.

Features:

  • Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity
  • Easy to operate: Programmable color LCD touch controller includes PID control; Experimental data recording and processing methods are flexible.
  • High reliability: The key parts are imported parts to ensure service life and reliability

Technical Parameters:

Model Number IE3180L
Temperature range -40℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃

Thermal recovery time

Within 5Minc

Heating rate

(thermal reserve zone)

It takes about 35min for RT to rise to +150℃

Cooling Rate (Cold storage area)

It takes about 55min for RT to drop to -40℃

Interior dimension :(WxHxD(mm)

500x400x400

Carton size :WxHxD(mm)

1480×1450 ×1950
Warm Box

●External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate

● Insulation material: hard polyurethane foam insulation layer + glass fiber

Box Door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation
Sample Stand Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.

Refrigeration compressor



France Taikang fully closed compressor

Coolants



Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system



Air-cooled



Safety protection device Heater anti-burning protection; Heater overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection
Power Supply AC380V;50Hz;18KW




Applicable Standards :



  • GB/T2423.1-2001 Low temperature test method;
  • GB/T2423.2-2001;
  • GB/T2423.22-1989 Temperature change test N;
  • Military standard GJB150.3-86;
  • Military standard GJB150.4-86;
  • Military standard GJB150.5-86;
  • GJB150.5-86 Temperature shock  test:
  • GJB360.7-87 Temperature shock test:
  • GJB367.2-87405 Temperature shock test;
  • J/T10187-91Y73 series temperature change test chamber - three chamber type
  • Meet the standard IEC68-2-14_ Test method N_ temperature change


Support and Services:

Programmable Thermal Shock Test Chamber Technical Support and Service

Infinity Machine understand that having reliable and up-to-date technical support and service for your Programmable Thermal Shock Test Chamber is essential. That's why we have a team of experienced and dedicated support professionals to help you with any questions or issues that may arise in the course of using your Programmable Thermal Shock Test Chamber. Our experts are available 24 hours a day, 7 days a week to provide answers to your questions or to help you troubleshoot any issues you may have with your Programmable Thermal Shock Test Chamber.

We also offer a wide range of services to help you get the most out of your Programmable Thermal Shock Test Chamber. Our services include:

  • Regular maintenance and calibration
  • On-site troubleshooting and repair
  • Software and firmware updates
  • Extended warranty options

For more information about our Programmable Thermal Shock Test Chamber technical support and service, please don't hesitate to contact us.



Packing and Shipping:

Packaging and Shipping for Programmable Thermal Shock Test Chamber.

Programmable Thermal Shock Test Chamber are carefully packaged and shipped to ensure their safe arrival.

  • Chambers are palletized and shrink-wrapped for protection.
  • Chambers are shipped via a freight carrier.
  • Chambers are loaded onto the freight truck with a powered lift gate.
  • Shipping and delivery are tracked to ensure arrival on time.
