Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE44200L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Effective Inner Volume Of The Test: 1200L The Amount Of Salt Spray Settling: 1~3ml/h.80cm2
Safety Protection Device: ●When The Salt Water Is Low, The Heater Power Is Automatically Cut Off ●When The Temperature Exceeds, The Heater Power Supply Is Automatically Cut Off ●When The Laboratory Water Level Is Low, The Heater Power Supply Is Automatically Cut Off Open Cover System: Manual Opening.One-click Automatic Cover Opening
Pressure Barrel Temperature Range: RT+5℃~70℃ Spray Method: Continuous Spray + Intermittent Spray
Carton Size: WxHxD(mm): 2730*1250*1400 Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

1200L Salt Spray Test Chamber

,

Salt Spray Test Chamber GB/T5170.8

Salt Spray Test Chamber



Model Number: IE44200L

Salt Spray Test Chamber Model Number IE44200L Temperature Uniformity of ≦1.0C



Product Description:

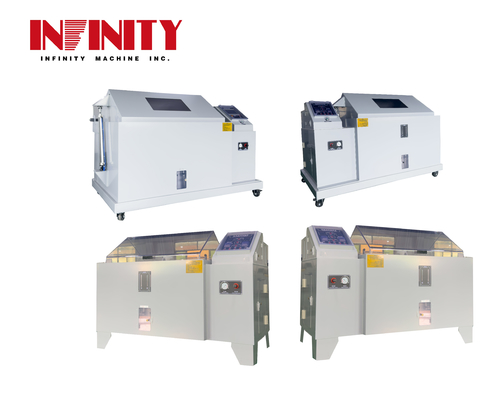

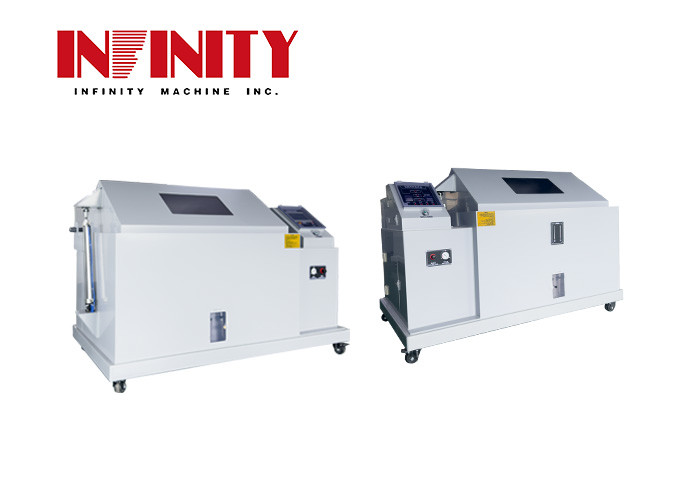

This Salt Spray Test Chamber is to simulate the dispersion system composed of tiny salt-containing droplets in the atmosphere, which is widely used in electronic, electrical and automobile, motorcycle, hardware, plastic, FPC soft board, and other industries after electroplating, painting, coating, anodic treatment of salt spray corrosion test to evaluate its surface corrosion resistance



Features:

  • The test supplement is hidden, no need to open the lid filling. At the same time, there is a water level observation window on the side, which is convenient for cleaning.
  • A special glass nozzle is used to spray the water pipe with a brine filter, which can be used for 4000 hours without crystalline salt blockage.
  • The control components are selected from well-known brands, and the structure of upper and lower water and electricity separation is adopted to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.1200L Salt Spray Test Chamber Temperature Uniformity of ≦1.0C GB/T5170.8 0Old model water and electricity1200L Salt Spray Test Chamber Temperature Uniformity of ≦1.0C GB/T5170.8 1The update water and electricity are separated from each other
  • According to the customer installation site can be manually and automatically add water, easy to use.
  • Continuous spray and intermittent spray can be quickly and freely switched, easy to operate

Technical Parameters:

Model number IE44200L
Laboratory temperature range RT+5℃~60℃
Pressure barrel temperature range RT+5℃~70℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
The amount of salt spray settling 1~3ml/h.80cm2
Spray pressure 1.00±0.01kgf/cm²
Spray method Continuous spray + intermittent spray
Effective inner volume of the test 1200L

Interior dimension:

WxHxD(mm)

2000*1000*600

Carton size:

WxHxD(mm)

2730*1250*1400
Box structure

●The inner and outer boxes of the laboratory: the inner and outer boxes of the laboratory are made of grade A PVC polyvinyl board, the thickness of the whole machine is 8mm, and the acid and alkali resistance and temperature resistance to 78℃.

●Laboratory seal cover: The seal cover of the laboratory is made of grade A PVC plate, the thickness is 8mm, the surrounding reinforcement is 13mm, and the acid and alkali resistance and temperature resistance are 78℃

Open cover system Manual opening One-click automatic cover opening
Water refill method Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier
Sample Stand The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and on all sides the direction of falling fog and receiving fog is completely the same.
Safety protection device

●When the salt water is low, the heater power is automatically cut off

●When the temperature exceeds, the heater power supply is automatically cut off

●When the laboratory water level is low, the heater power supply is automatically cut off

Power Supply AC380;V50Hz;5KW



Customization:

Looking for a reliable and high-performance Salt Spray Test Chamber? Look no further than Infinity Machine’s IE44200L series. These chambers feature a brand name of Infinity Machine, a model number of IE44200L, and have been made in China with CE and ISO certifications.

The IE44200L series also provides impressive results in salt spray settling, pressure, and temperature testing. The amount of salt spray settling ranges from 1 to 3ml/h.80cm2, the spray pressure is 1.00±0.01kgf/cm², and the pressure barrel temperature range is RT+5℃~70℃. The carton size of the chamber is WxHxD(mm): 2730*1250*1400 and the power supply is AC380;V50Hz;5KW.

These features make the IE44200L series the perfect Salt Spray Test Chamber. Don’t hesitate - get your Salt Spray Test Chamberr from Infinity Machine today!



Support and Services:

Salt Spray Test Chamber Technical Support and Service

We provide professional technical support and service for our Salt Spray Test Chamber. Our technical support staff is available to help diagnose and resolve any issues you may have with your Salt Spray Test Chamber. We will assist in troubleshooting, maintenance, and repair of the system, as well as provide guidance and advice on the proper use and care of the product.

We offer a variety of services and support, including:

  • 24/7 technical support
  • On-site service and repair
  • System upgrades and modifications
  • Preventative maintenance and calibration
  • Training and installation assistance
  • Warranty services and extended warranties

We are committed to providing our customers with the best possible product and service experience. If you have any questions or need assistance with your Salt Spray Test Chamber, please contact us.



Packing and Shipping:

Packaging and Shipping for Salt Spray Test Chamber:

  • The Salt Spray Test Chamber should be packaged with a durable and strong cardboard box.
  • The box should be filled with foam pieces to provide maximum protection against shocks.
  • All the parts of the Salt Spray Test Chamber should be shrink-wrapped to prevent them from dust and moisture.
  • The box should be labeled with the appropriate warning symbols and instructions.
  • The box should be securely sealed to ensure the safety of the product during shipping.


FAQ:

Q1: What is the brand name of this Salt Spray Test Chamber?
A1: The brand name of this Salt Spray Test Chamber is Infinity Machine.
Q2: What is the model number of this Salt Spray Test Chamber?
A2: The model number of this Salt Spray Test Chamberis IE44200L.
Q3: Where is this Salt Spray Test Chamber made?
A3: This environmental test chamber is made in China.
Q4: Does this Salt Spray Test Chamber have any certifications?
A4: Yes, this Salt Spray Test Chamber has CE and ISO certifications.
