| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE44160L |
| Model number: | IE44160L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Temperature Fluctuation: | ±0.5℃ | Power Supply: | AC220;V50Hz;4.5KW |
|---|---|---|---|
| Temperature Uniformity: | ≦1.0℃ | Box Structure: | ●The Inner And Outer Boxes Of The Laboratory: The Inner And Outer Boxes Of The Laboratory Are Made Of Grade A PVC Polyvinyl Board, The Thickness Of The Whole Machine Is 8mm, And The Acid And Alkali Resistance And Temperature Resistance To 78℃. ●Laboratory |
| Water Refill Method: | Automatic/manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier | The Amount Of Salt Spray Settling: | 1～3ml/h.80cm2 |
| Spray Pressure: | 1.00±0.01kgf/cm² | Capacity: | 250L |
| Humidity: | 85%~98%RH | Temperature Range: | ± 0.5℃ |
| Salt Spray Subside: | 1.0~2.0ml/80cm2/h | Test Room Size: | 900x600x450mm |
| Machine Size: | 1460x910x1280mm | Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Power Supply: | AC220V 15A Or Specified By User |
| Water Way: | Atered By Itself While Lack Of Water | Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. |
| Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability | Spray Material: | Transparent PVC |
| SSR: | Precisely Digital Thermal Controller With Spray Protection System. | Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 |
| Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. | ||
| High Light: | GB/T2423.17 Salt Spray Test Chamber,Salt Spray Test Chamber 80cm2/h |
||

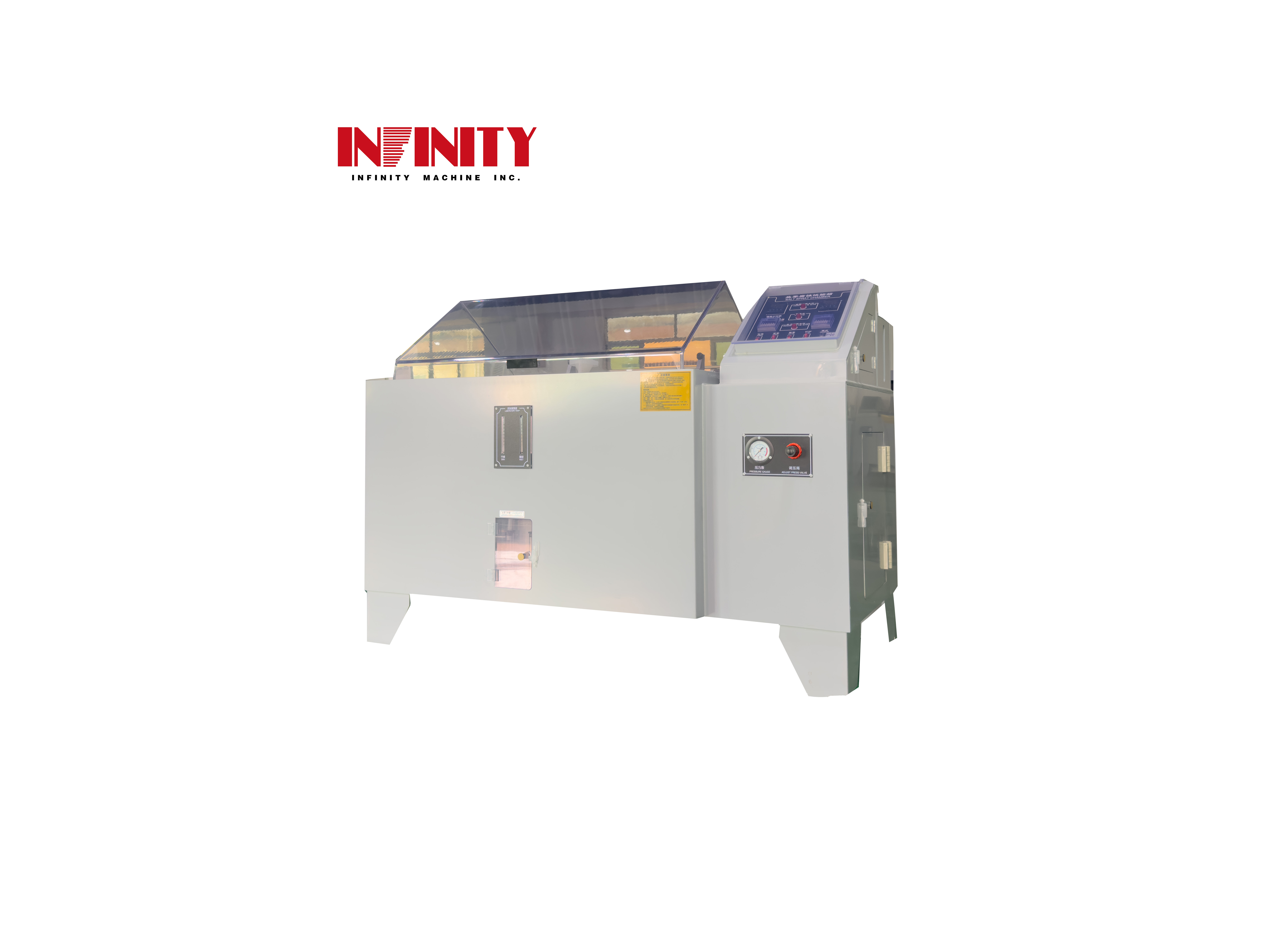

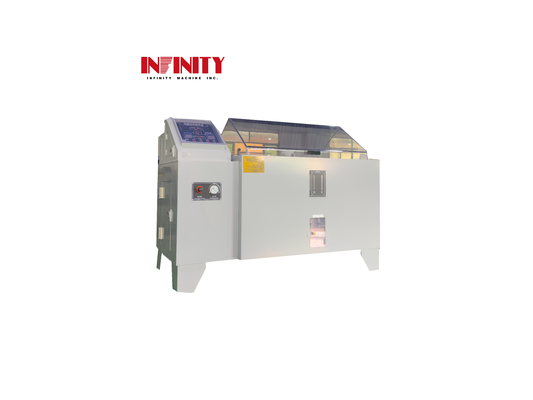

Salt Spray Test Chamber Model Number IE44160L Temperature Uniformity Of ≦1.0C
This Salt Spray Test Chamber is to simulate the dispersion system composed of tiny salt-containing droplets in the atmosphere, which is widely used in electronic, electrical and automobile, motorcycle, hardware, plastic, FPC soft board, and other industries after electroplating, painting, coating, anodic treatment of salt spray corrosion test to evaluate its surface corrosion resistance
| Model number | IE44160L | |
| Laboratory temperature range | RT+5℃~60℃ | |
| Pressure barrel temperature range | RT+5℃~70℃ | |
| Temperature fluctuation | ±0.5℃ | |
| Temperature uniformity | ≦1.0℃ | |
| The amount of salt spray settling | 1～3ml/h.80cm2 | |
| Spray pressure | 1.00±0.01kgf/cm² | |
| Spray method | Continuous spray + intermittent spray | |
| Effective inner volume of the test | 800L | |
|
Interior dimension: WxHxD(mm) |
1600*1000*500 | |
|
Carton size: WxHxD(mm) |
2430*1250*1400 | |
| Box structure |
●The inner and outer boxes of the laboratory: the inner and outer boxes of the laboratory are made of grade A PVC polyvinyl board, the thickness of the whole machine is 8mm, and the acid and alkali resistance and temperature resistance to 78℃. ●Laboratory seal cover: The seal cover of the laboratory is made of grade A PVC plate, the thickness is 8mm, the surrounding reinforcement is 13mm, and the acid and alkali resistance and temperature resistance are 78℃ |
|
| Open cover system | Manual opening | One-click automatic cover opening |
| Water refill method | Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier | |
| Sample Stand | The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and on all sides the direction of falling fog and receiving fog is completely the same. | |
| Safety protection device |
●When the salt water is low, the heater power is automatically cut off ●When the temperature exceeds, the heater power supply is automatically cut off ●When the laboratory water level is low, the heater power supply is automatically cut off |
|
| Power Supply | AC220;V50Hz;4.5KW | |
We provide technical support and service for Salt Spray Test Chamber. Our team of expert technicians is available to help with installation, maintenance, and troubleshooting of test chambers, as well as general advice on how to optimize their performance.
We offer technical support via phone and email, as well as on-site visits for installation and maintenance. Our technicians have a wealth of experience in dealing with environmental test chambers and can provide tailored advice to suit your specific needs.
We also offer a comprehensive range of maintenance and repair services, from simple repairs and replacements to complex system overhauls. We can help with software updates, calibration, and other necessary adjustments, ensuring that your test chamber remains in optimal working order.
If you have any questions about our technical support and service for Salt Spray Test Chambers, please don't hesitate to contact us. We look forward to hearing from you.
Salt Spray Test Chamber Packaging and Shipping:
The Salt Spray Test Chamber should be packaged in a sturdy, protective container to ensure that no damage occurs during transit.
