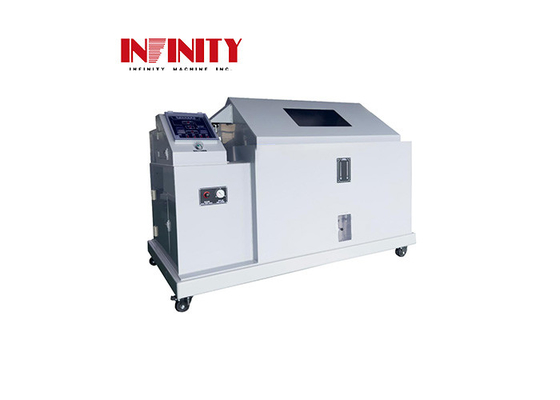

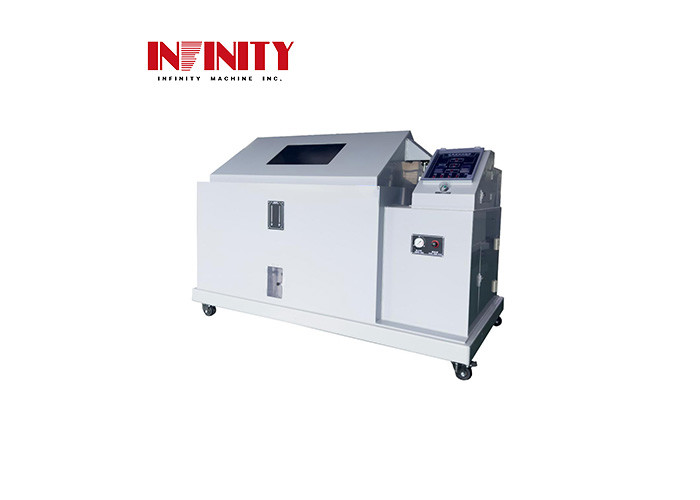

3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range RT 5C-60C

3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range RT 5C-60C

3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range  RT 5C-60C
3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range  RT 5C-60C
3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range  RT 5C-60C
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE,ISO
Model Number: IE44120L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Contact Now
Detailed Product Description
Effective Inner Volume Of The Test: 576L Safety Protection Device: ●When The Salt Water Is Low, The Heater Power Is Automatically Cut Off ●When The Temperature Exceeds, The Heater Power Supply Is Automatically Cut Off ●When The Laboratory Water Level Is Low, The Heater Power Supply Is Automatically Cut Off
Laboratory Temperature Range: RT+5℃~60℃ Product Name: Salt Spray Test Chamber
Power Supply: AC220;V50Hz;3.5KW Interior Dimension: WxHxD(mm): 1200*800*600
Temperature Fluctuation: ±0.5℃ Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Highlight:

576L Salt Spray Test Chamber

,

Laboratory Salt Spray Test Chamber

Salt Spray Test Chamber



Model Number: IE44120L

Salt Spray Test Chamber Model Number: IE44120L Laboratory Temperature Range RT 5C-60C

3.5KW 576L Salt Spray Test Chamber Laboratory Temperature Range  RT 5C-60C 0

Product Description:

This Salt Spray Test Chamber is to simulate the dispersion system composed of tiny salt-containing droplets in the atmosphere, which is widely used in electronic, electrical and automobile, motorcycle, hardware, plastic, FPC soft board, and other industries after electroplating, painting, coating, anodic treatment of salt spray corrosion test to evaluate its surface corrosion resistance

Features:

  • The test supplement is hidden, no need to open the lid filling. At the same time, there is a water level observation window on the side, which is convenient for cleaning.
  • A special glass nozzle is used to spray the water pipe with a brine filter, which can be used for 4000 hours without crystalline salt blockage.
  • The control components are selected from well-known brands, and the structure of upper and lower water and electricity separation is adopted to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.
  • According to the customer installation site can be manually and automatically add water, easy to use.
  • Continuous spray and intermittent spray can be quickly and freely switched, easy to operate


Technical Parameters:

Model number IE44120L
Laboratory temperature range RT+5℃~60℃
Pressure barrel temperature range RT+5℃~70℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
The amount of salt spray settling 1~3ml/h.80cm2
Spray pressure 1.00±0.01kgf/cm²
Spray method Continuous spray + intermittent spray
Effective inner volume of the test 576L

Interior dimension:

WxHxD(mm)

1200*800*600

Carton size:

WxHxD(mm)

2080*1050*1300
Box structure

●The inner and outer boxes of the laboratory: the inner and outer boxes of the laboratory are made of grade A PVC polyvinyl board, the thickness of the whole machine is 8mm, and the acid and alkali resistance and temperature resistance to 78℃.

●Laboratory seal cover: The seal cover of the laboratory is made of grade A PVC plate, the thickness is 8mm, the surrounding reinforcement is 13mm, and the acid and alkali resistance and temperature resistance are 78℃

Open cover system Manual opening One-click automatic cover opening
Water refill method Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier
Sample Stand The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and on all sides the direction of falling fog and receiving fog is completely the same.
Safety protection device

●When the salt water is low, the heater power is automatically cut off

●When the temperature exceeds, the heater power supply is automatically cut off

●When the laboratory water level is low, the heater power supply is automatically cut off

Power Supply AC220;V50Hz;3.5KW



Applications:

The Salt Spray Test Chamber from Infinity Machine is ideal for a wide range of environmental testing. With the model number IE44120L, it is made in China and is certified with CE and ISO. The interior dimension is WxHxD (mm): 1200*800*600, and the spray pressure is 1.00±0.01kgf/cm². It also features two modes of water refill, automatic and manual, with an automatic water inlet and a set of water purifier. This Salt Spray Test Chamber also comes with safety protection devices such as automatic power cut-off when the salt water is low, the temperature exceeds, or the laboratory water level is low. As a leading Salt Spray Test Chamber and Salt Spray Test Chamber Manufacturer, Infinity Machine seeks to provide the best quality environmental testing solutions for customers.



Customization:

We provide custom services for Salt Spray Test Chamber with the following attributes:

  • Brand Name: Infinity Machine
  • Model Number: IE44120L
  • Place of Origin: Made In China
  • Certification: CE,ISO
  • Product name: Salt Spray Test Chamber
  • Water refill method: Automatic/manual Dual Water Supply Mode, Automatic Water Inlet With A Set Of Water Purifier
  • Effective inner volume of the test: 576L
  • Sample Stand: The Laboratory Basket Frame Adopts A Plane Indexing Frame, The Placing Angle Is 15 Degrees And 30 Degrees, And On All Sides The Direction Of Falling Fog And Receiving Fog Is Completely The Same.
  • Temperature fluctuation: ±0.5℃

We guarantee Salt Spray Test Chamber with high-quality and efficient performance.



Support and Services:

Salt Spray Test Chamber Technical Support & Services

Infinity company understand that our customers require reliable, durable and accurate Salt Spray Test Chamber solutions. We are committed to providing our customers with the highest quality of technical support and services to ensure they are satisfied with their purchase. Our team of experienced engineers are available to provide the following services:

  • Installation and commissioning of Salt Spray Test Chamber
  • Troubleshooting and repair of Salt Spray Test Chamber
  • Calibration of Salt Spray Test Chamber
  • Maintenance and replacement of parts for Salt Spray Test Chamber
  • Providing technical advice on Salt Spray Test Chamber
  • Providing training on the use of Salt Spray Test Chamber





Packing and Shipping:

The Salt Spray Test Chamber is packaged and shipped with the following steps:

  • Place the chamber in the original packaging material.
  • Secure the chamber in the packaging material with foam, bubble wrap, or other protective material.
  • Label the box with “Fragile” stickers.
  • Seal the box with heavy-duty packaging tape.
  • Ship the package via a reliable carrier.
