Salt Spray Test Chamber Model Number: IE4460L With Automatic Water Inlet 1.5KW Power Supply

Salt Spray Test Chamber Model Number: IE4460L With Automatic Water Inlet 1.5KW Power Supply

Salt Spray Test Chamber Model Number:  IE4460L With Automatic Water Inlet  1.5KW Power Supply
Salt Spray Test Chamber Model Number:  IE4460L With Automatic Water Inlet  1.5KW Power Supply
Salt Spray Test Chamber Model Number:  IE4460L With Automatic Water Inlet  1.5KW Power Supply
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE4460L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Laboratory Temperature Range: RT+5℃~60℃ The Amount Of Salt Spray Settling: 1~3ml/h.80cm2
Safety Protection Device: ●When The Salt Water Is Low, The Heater Power Is Automatically Cut Off ●When The Temperature Exceeds, The Heater Power Supply Is Automatically Cut Off ●When The Laboratory Water Level Is Low, The Heater Power Supply Is Automatically Cut Off Power Supply: AC220V;50Hz;1.5KW
Spray Pressure: 1.00±0.01kgf/cm² Sample Stand: The Laboratory Basket Frame Adopts A Plane Indexing Frame, The Placing Angle Is 15 Degrees And 30 Degrees, And On All Sides The Direction Of Falling Fog And Receiving Fog Is Completely The Same.
Temperature Fluctuation: ±0.5℃ Carton Size: WxHxD(mm): 1050*700*950
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

High And Low Temperature Test Chamber

,

Automatic Water Inlet Temperature Test Chamber

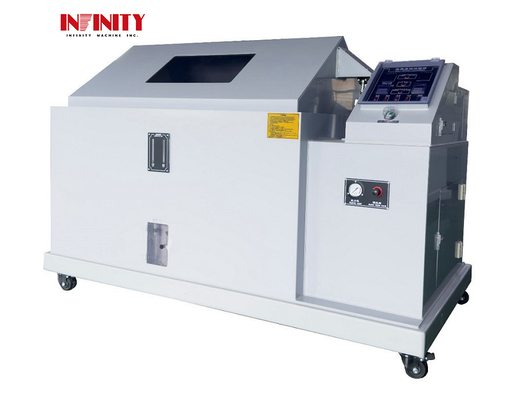

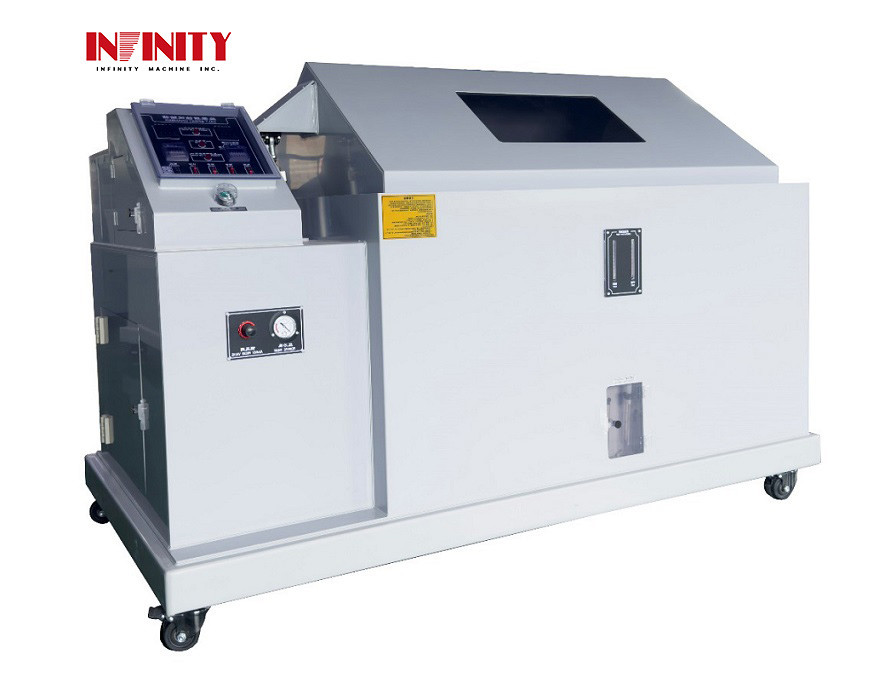

Salt Spray Test Chamber  (IE4460L)

Salt Spray Test Chamber Model Number:  IE4460L With Automatic Water Inlet  1.5KW Power Supply 0

Product Description and Applications:

The Salt Spray Test Chamber is to simulate the dispersion system composed of tiny salt-containing droplets in the atmosphere, which is widely used in electronic, electrical and automobile, motorcycle, hardware, plastic, FPC soft board, and other industries after electroplating, painting, coating, anodic treatment of salt spray corrosion test to evaluate its surface corrosion resistance

Features:

  • The test supplement is hidden, no need to open the lid filling. At the same time, there is a water level observation window on the side, which is convenient for cleaning.
  • A special glass nozzle is used to spray the water pipe with a brine filter, which can be used for 4000 hours without crystalline salt blockage.
  • The control components are selected from well-known brands, and the structure of upper and lower water and electricity separation is adopted to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.
  • According to the customer installation site can be manually and automatically add water, easy to use.
  • Continuous spray and intermittent spray can be quickly and freely switched, easy to operate

Technical Parameters:

Model number IE4460L
Laboratory temperature range RT+5℃~60℃
Pressure barrel temperature range RT+5℃~70℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
The amount of salt spray settling 1~3ml/h.80cm2
Spray pressure 1.00±0.01kgf/cm²
Spray method Continuous spray + intermittent spray
Effective inner volume of the test 150L

Interior dimension:WxHxD(mm)

600*450*400

Carton size:WxHxD(mm)

1050*700*950
Box structure

●The inner and outer boxes of the laboratory: the inner and outer boxes of the laboratory are made of grade A PVC polyvinyl board, the thickness of the whole machine is 8mm, and the acid and alkali resistance and temperature resistance to 78℃.
●Laboratory seal cover: The seal cover of the laboratory is made of grade A PVC plate, the thickness is 8mm, the surrounding reinforcement is 13mm, and the acid and alkali resistance and temperature resistance are 78℃

Open cover system Manual opening One-click automatic cover opening
Water refill method Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier
Sample Stand The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and on all sides the direction of falling fog and receiving fog is completely the same.
Safety protection device

●When the salt water is low, the heater power is automatically cut off
●When the temperature exceeds, the heater power supply is automatically cut off
●When the laboratory water level is low, the heater power supply is automatically cut off

Power Supply AC220V;50Hz;1.5KW





Applicable Standard:



  • GB/T242317-2008 salt spray test method
  • GB/T242318-2000 "Basic Regulations of Electrical and Electronic products Test Ka"
  • GB / T10125-1997 Artificial atmosphere corrosion test salt spray test
  • GB/T10587-2006 Technical conditions for salt spray test chamber
  • GB105932-1990 Method for measuring environmental parameters of electrical and electronic products
  • GB / T1765-1979 Paint film test for determination of resistance to heat, moisture, salt spray and weather (artificially accelerated)
  • GB/T242317-1993 "Electronic and electrical products basic environmental test procedures Test Ka: salt spray test method"
  • GB/T1771-2007 Paints and varnishes -- Determination of resistance to neutral salt spray -- Neutral salt spray test (NSS test)
  • GB5938-86 "Test method for Corrosion resistance of metal coatings and chemical treatment layers of Light industrial products"
  • GB/T1771-91 "Color paints and varnishes - determination of resistance to neutral salt spray". Acetate spray test (AASS test)

Support and Services:

Salt Spray Test Chamber Technical Support and Service
Infinity company offer a range of technical support and service options for ourSalt Spray Test Chamber products. Our experienced team of engineers and technicians provide customer-centric services to ensure that our customers get the most out of their products.
We provide installation and setup services, as well as regular maintenance plans and preventative maintenance services. We also offer a comprehensive range of repair and troubleshooting services, whether it be a minor issue or a major problem. We can also help with system upgrades and modifications to keep your system running at its best.
Our team of experts are available 24/7 to offer assistance and advice when you need it. We are dedicated to ensuring customer satisfaction, and we are committed to providing timely and reliable technical support. We are here to help you get the most out of your Environmental Test Chamber products.

Packing and Shipping:

Packaging and Shipping for Salt Spray Test Chamber

For packaging, the Salt Spray Test Chamber will be securely packed in wooden cases or cartons with foam.
For shipping, Express, Air, and Sea freight are available for customers to choose from.
Our professional staffs will work closely with the customers to arrange the most suitable and cost-effective shipping.
