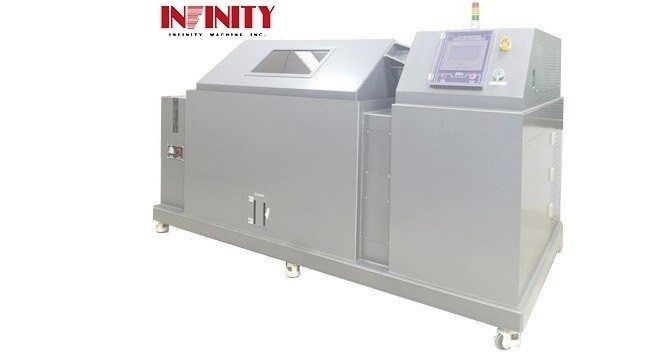

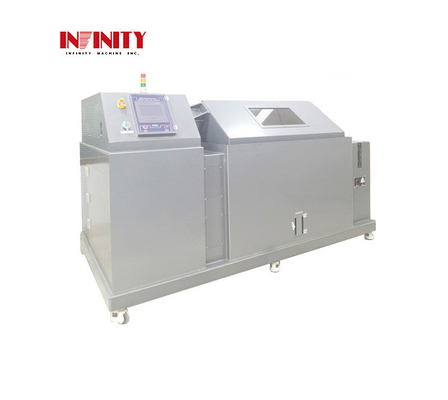

Programmable Composite Salt Spray Test Chamber

Model Number:IE4060L​

Product Description and Applications:

The Programmable Composite Salt Spray Test Chamber is designed to simulate and increase the environmental effects on metal materials exposed to outdoor atmosphere with salt contamination and accelerated corrosion. The equipment includes test methods for cyclic exposure of samples to salt spray, dry, humid and hot environments. The test of this equipment is a comparative test, and the test results cannot predict the long-term corrosion resistance of the same metal materials used in this environmental condition. However, this method can still provide valuable information about the properties of materials exposed to salt contamination under conditions similar to those tested. Compared with the traditional accelerated corrosion test, such as neutral salt spray test (NSS), acetic acid salt spray test (AASS), copper accelerated acetic acid salt spray test (CASS), the biggest advantage of this device test is that it can better reproduce the corrosion occurring in outdoor salt pollution environment.

At the same time, it is suitable for accelerated corrosion tests, such as metals and their alloys, metal coatings (anodic and negative polarity), conversion coatings, anodic oxidation coatings, organic coatings on metal materials, etc.

Features:

• It can be specially designed according to different customer needs.
• PT100 temperature sensor with high accuracy and low maintenance.
• According to the customer installation site can be manually and automatically add water, easy to use.
• The greenhouse and the laboratory are independent, and the middle is connected through the damper control, which has perfect structure and easier maintenance.
• Energy-saving design, separate control according to different tests.
• It can do neutral salt spray test, corrosion resistance test, dry test, wet test, static test, but also can do salt spray, dry and wet, static mixing test, automatic control.
• Automatic periodic spray, continuous spray, timed spray.
• No need to move the product, you can realize the salt spray, wet heat, dry automatic cycle test, easy to use

Technical Parameters:

Parameter	Details
Model number	IE4060L
Temperature range	0℃ ～ +90℃
Temperature deviation	±1℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦2.0℃
Humidity range	20~100%R.H
Humidity deviation	±2%R.H
Humidity fluctuation	±2%R.H
Humidity uniformity	±3%R.H
Temperature and humidity range
Rate of heating and cooling	RT→+95℃≤50 min. RT→+0℃≤30 min. Salt spray (35℃)→ drying (60℃.20~30%RH)≤30 min. Drying (60℃,20~30%RH)→ wetting (50℃,95%+/-5%RH)≤15 min. Wetting (50℃,95%+/-5%RH)→ salt spray (35℃)≤30 min(immediately spray after switching).
Test effective inner volume	150L
Interior dimension:WxHxD(mm)	600*500*500
Carton size:WxHxD(mm)	1780*950*1300
Box structure	Test chamber: imported CPVC polyethylene plate, thickness 8mm, temperature resistance of about 120 degrees. Outdoor test box: imported CPVC polyethylene plate, thickness 8mm, temperature resistance of about 120 degrees. Laboratory seal cover: imported CPVC polyethylene plate, thickness 8mm, one-button automatic opening cover, with transparent observation window, combined with fog removal device, Convenient for clear observation of the test during the test, temperature resistance of about 120 degrees.
Water refill method	Automatic/manual dual water supply mode, automatic water inlet with a set of water purifier
Sample Stand	The inner wall of the CPVC polyvinyl triangle box is placed on the index frame, and the Angle of the test product can be adjusted arbitrarily, and the number of test pieces is completely consistent in the four sides falling fog and receiving fog. CPVC plate punching sample placement platform is set at the bottom of the test chamber. The uniform opening on the surface of the platform will quickly discharge the spray liquid, and large samples can be placed on the table for testing.
Refrigeration compressor	France Taikang fully closed compressor
Coolants	Non-fluorine environmental refrigerant R404A complies with environmental regulations and is safe and non-toxic
Condenser system	Air-cooled
Safety protection device	Refrigeration System	Compressor overheat protection Compressor overcurrent protection Compressor overpressure, low pressure protection Condensate fan overheat protection
	Test Chamber	Adjustable overtemperature protection alarm Air conditioning channel limit overtemperature protection Fan, motor overheat relay protection
	Heating System	Heating tube dry burning protection Abnormal water supply alarm Abnormal drainage alarm
	Other	Earth leakage protection Overload and short circuit protection The power supply lacks reverse phase protection function
Weight(Kg)	About 300
Power supply	AC380V;50Hz;7KW

Applicable Standard:

• GB/T20854-2007/ISO14993-2001 Wet and dry salt spray test.
• GB-T5170.8-2008_test method for environmental test equipment for electrical and electronic products___ Salt spray test equipment.
• GJB150.11A-2009 Military equipment laboratory environmental test method salt spray test.
• GBT2424.17-2008 salt spray test method.
• GB-T2423.18-2000 Alternating salt spray test method for sodium chloride.
• GB-T2423.3-2006 (IEC6008-2-78-2001) test cab: constant wet heat test method.
• GBT2423_4-2008 test method for alternating humidity and heat.
• IEC 60068-2-52-2017 Environmental tests-Part 2-25 Test Kb Cyclic salt spray (sodium chloride solution).
• IEC 60068-2-11-1982 Electrical Appliance Technology. Basic environmental test procedures. Part 2: Testing. Section 11: Test Ka: Salt spray.

Support and Services:

 Infinity company offer comprehensive technical support and service for all our Programmable Composite Salt Spray Test Chamber. Our team of experts is available to assist with any technical queries you may have, and we can provide on-site installation and maintenance services for customers with more complex needs.

Our technical support covers both hardware and software components of the Programmable Composite Salt Spray Test Chamber. We can assist with installation and configuration, troubleshooting and repair, and calibration and validation. Our team also provides support for software applications and operating systems, helping customers to get the most out of their test chambers.

We are committed to providing excellent service to all our customers. Our team is available 7 days a week to answer any questions you may have and provide assistance with any technical issues. We also offer a range of customer training courses to ensure that customers are fully equipped to use their Programmable Composite Salt Spray Test Chamber optimally.

Packing and Shipping:

Packaging and Shipping for Programmable Composite Salt Spray Test Chamber:

• The Programmable Composite Salt Spray Test Chamber will be safely packed in anti-static bubble wrap and the packed box will be securely sealed.
• The shipping box will be labelled with product name and serial number.
• The shipping box will be loaded in a carton box with sufficient padding material.
• The carton box will be securely sealed and labelled with the product name and serial number.
