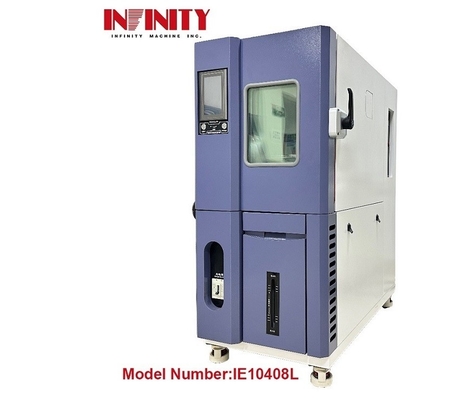

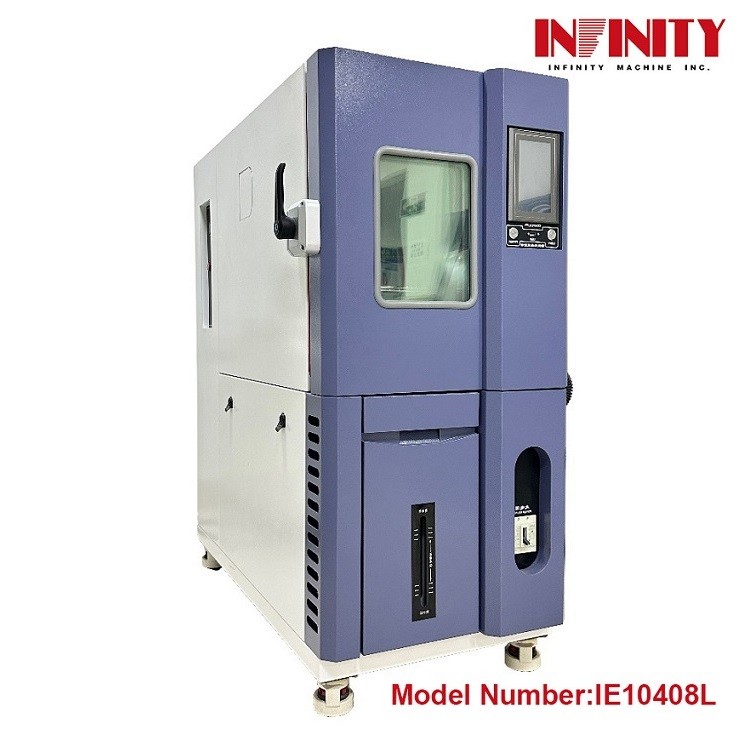

600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning

600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning

  • 600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning
  • 600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning
600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE10408L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)
Warm Box: ● External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.● Inner Wall Material :SUS304# Stainless Steel Plate.● Insulation Material: Hard Polyurethane Foam I Humidity Fluctuation: ±1.0%RH
Cooling Rate: From +20℃ To -40℃ Within 60min (no Load, Ambient Temperature +25℃) Temperature Range: -40℃ ~ +150℃
Temperature Uniformity: ≦2.0℃ Box Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

600×850×800Mm Temperature Test Chamber

,

Temperature Test Chamber With Tank

600×850×800 Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning

Programmable Constant Temperature And Humidity Test Box





Model:IE10408L600×850×800Mm Interior High And Low Temperature Test Chamber With Tank Low Water Level Warning 0

Product Description:

Environmental Test Chamber is a type of test chamber that is designed to simulate different environmental elements like temperature, humidity and other environmental conditions. It is mainly used for testing the performance and durability of products in different conditions, such as aging test, climate test, corrosion test and other environmental tests. This Environmental Test Chamber is equipped with the safety protection device like Heater Anti-burning Protection, Humidifier Anti-burn Protection, Heater Overcurrent Protection, Humidifier Overcurrent Protection, Circulating Fan Overcurrent Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Overcurrent Protection, Overvoltage Underinverse-phase Protection, Circuit Breaker, Leakage Protection, Humidifier Low Water Level Protection, Tank Low Water Level Warning, etc. Model number of this Environmental Test Chamber is IE10408L, temperature range is from -40℃ to +150℃, and the refrigerator compressor is France Taikang Fully Closed Compressor, which is capable of cooling rate from +20℃ to -40℃ within 60min (no load, ambient temperature +25℃). This Environmental Test Chamber is ideal for aging test, climate test, corrosion test and other environmental tests.



Features:

  • Product Name: Environmental Test Chamber
  • Product Name: Programmable Constant Temperature And Humidity Test Box
  • Carton size: WxHxD(mm): 820×1750 ×1580
  • Heating rate: From -40℃ To +100℃ Within 60min (no Load, Ambient Temperature +25℃)
  • Warm box:
    • External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.
    • Inner Wall Material :SUS304# Stainless Steel Plate.
    • Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.
  • Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic


Technical Parameters:

Item Parameter
Product name Programmable Constant Temperature And Humidity Test Box
Humidity deviation ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)
Lighting device 1 LED Lighting Device, Installed On The Window.
Condenser system Air-cooled
Warm box ● External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.● Inner Wall Material :SUS304# Stainless Steel Plate.● Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.
Sample Stand Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Cooling rate From +20℃ To -40℃ Within 60min (no Load, Ambient Temperature +25℃)
Humidity uniformity ± 3.0% RH (no Load)
Humidity control range 20%R.H~98%R.H
Carton size WxHxD(mm): 820×1750 ×1580


Applications:

The Infinity Machine IE10408L Programmable Constant Temperature And Humidity Test Box is a reliable and cost-effective environmental testing machine from Made In China. It is designed to provide a consistent and controllable environment for aging tests, environmental tests, and other experiments. It features interior dimensions of WxHxD (mm): 600×850×800, France Taikang Fully Closed Compressor, safe and non-toxic non-fluorine environmental refrigerant R404A, and a 300×400mm observation window which is installed on the door of the box and can effectively keep heat and prevent condensation. This environmental test systems is ideal for accelerated aging tests, humidity tests, temperature tests, and other experiments that require environmental control. It is 100% safe and reliable for conducting long-term tests.



Customization:

Environmental Test Chamber - Infinity Machine IE10408L

Brand Name: Infinity Machine

Model Number: IE10408L

Place of Origin: Made In China

Temperature uniformity: ≦2.0℃

Sample Stand: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.

Safety protection device: Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Overcurrent Protection; Overvoltage Underinverse-phase Protection; Circuit Breaker; Leakage Protection; Humidifier Low Water Level Protection; Tank Low Water Level Warning.

Temperature range: -40℃ ~ +150℃

High And Low Temperature Test Chamber, Environment Test Equipment, Environment Test Equipment, Environmental Test Chamber



Support and Services:

Environmental Test Chamber Technical Support and Services

We provide world-class technical support and services for our Environmental Test Chamber product. We offer a range of services to meet your testing needs, including:

  • Installation and setup of the chamber
  • Troubleshooting and maintenance of the chamber
  • Calibration and validation of the chamber
  • Upgrades and modifications of the chamber
  • On-site training and product demonstrations
  • A help desk staffed by experienced technicians

Our team of experienced engineers and technicians are available to answer any of your questions and help you get the most out of your Environmental Test Chamber. We look forward to serving you.



Packing and Shipping:

Packaging and Shipping for Environmental Test Chamber:

  • The environmental test chamber should be placed in the original packaging and sealed.
  • The product should be shipped with the appropriate shipping documents.
  • The product should only be moved using approved lifting equipment.
  • The product should be stored in a clean, dry and temperature-controlled environment.
  • All shipping labels should be clearly visible and the product should be securely strapped to the pallets.


FAQ:

Q1: What is the brand name of this Environmental Test Chamber?

A1: The brand name of this Environmental Test Chamber is Infinity Machine.

Q2: What is the model number of this Environmental Test Chamber?

A2: The model number of this Environmental Test Chamber is IE10408L.

Q3: Where is this Environmental Test Chamber made?

A3: This Environmental Test Chamber is made in China.

Q4: What is the purpose of the Environmental Test Chamber?

A4: The Environmental Test Chamber is designed to simulate environmental conditions such as temperature, humidity, pressure, and altitude for product testing.

Q5: What features does this Environmental Test Chamber have?

A5: This Environmental Test Chamber has features such as precise temperature control, automated control systems, and advanced monitoring capabilities.
