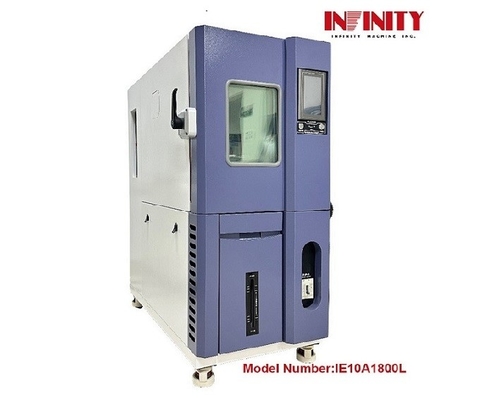

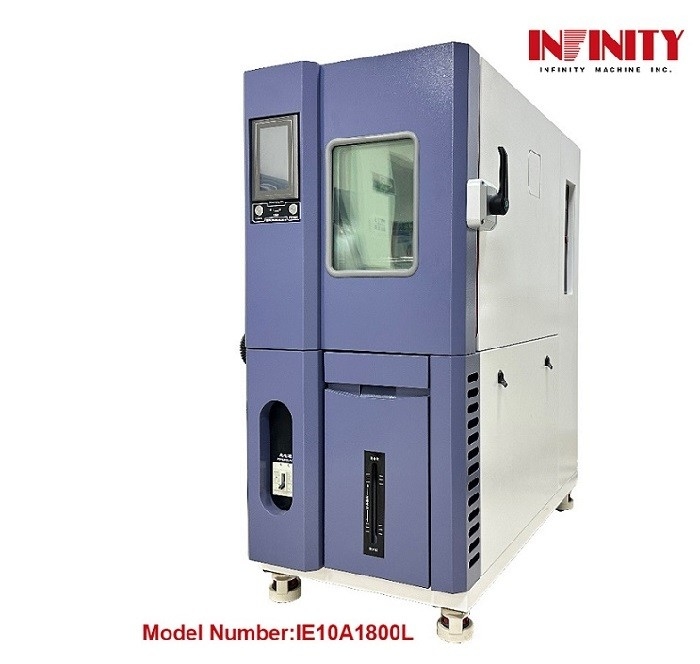

30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation

30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation

  • 30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation
  • 30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation
30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE10A800L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temperature Uniformity: ≦2.0℃ Sample Stand: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer
Product Name: Programmable Constant Temperature And Humidity Test Box Temperature Fluctuation: ±0.5℃
Humidity Fluctuation: ±1.0%RH Interior Dimension: WxHxD(mm): 1000×1000×800
Humidity Uniformity: ±3.0%RH(no-load) Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. SSR: Precisely Digital Thermal Controller With Spray Protection System.
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

30kg / Layer Temperature Test Chamber

,

Temperature Test Chamber Controlled Humidity Fluctuation

Programmable constant temperature and humidity test chamber

Quality High And Low Temperature Test Chamber With Controlled Humidity Fluctuation



Model:IE10A800L30kg / Layer High And Low Temperature Test Chamber With Controlled Humidity Fluctuation 0

Product Description:

Environment Test Chamber, also named Climate Test Chamber, is a kind of environment test equipment which is used to simulate different environmental conditions like temperature, humidity, pressure, in order to evaluate the reliability and stability of different products of different industries. Our Environment Test Chamber has interior dimension of WxHxD(mm): 1000×1000×800, equipped with 1 LED Lighting Device installed on the window, air-cooled condenser system, and stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. Its heating rate is from -70℃ to +100℃ within 90min (no Load, ambient temperature +25℃). It's an ideal environment test chamber for evaluating the reliability of different products with complex environment requirements.



Features:

  • Product Name: Environmental Test Chamber
  • Temperature uniformity: ≦2.0℃
  • Model number: IE10A800L
  • Carton size : WxHxD(mm): 1220×1940 ×1620
  • Temperature fluctuation: ±0.5℃
  • Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
  • Features: Environmental Test Systems, Environment Test Chamber, Environmental Testing Equipment


Technical Parameters:

Parameter Value
Box door For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Humidity control range 20%R.H~98%R.H
Temperature fluctuation ±0.5℃
Lighting device 1 LED Lighting Device, Installed On The Window.
Humidity deviation ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH)
Warm box ●External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ●Inner Wall Material :SUS304# Stainless Steel Plate. ●Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.
Cooling rate From +20℃ To -70℃ Within 90min (no Load, Ambient Temperature +25℃)
Coolants Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic
Heating rate From -70℃ To +100℃ Within 90min (no Load, Ambient Temperature +25℃)
Temperature uniformity ≦2.0℃


Applications:

Infinity Machine's Environmental Test Chamber, IE10A800L, is the ideal environmental testing equipment for conducting high and low temperature tests. This environmental test system is made in China and is equipped with non-fluorine environmental refrigerant R404A, in line with environmental regulations and is safe and non-toxic. With a temperature fluctuation of ±0.5℃, this temperature test chamber can heat up from -70℃ to +100℃ within 90min (no load, ambient temperature +25℃). Furthermore, the humidity deviation is ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH), perfect for conducting a wide range of environmental tests.



Customization:

Customize Infinity Machine IE10A800L Environmental Test Chamber

This Environmental Test Chamber is from Infinity Machine, with Model Number: IE10A800L. It is made in China. The interior dimension is WxHxD(mm): 1000×1000×800. The power supply is AC380;V50Hz;11KW. It is equipped with 1 LED Lighting Device, installed on the window. The condenser system is air-cooled. And the temperature fluctuation is ±0.5℃.

This Environmental Test Chamber is perfect for testing high and low temperature, in order to ensure the product's quality and safety. It is also suitable for various environmental testing, such as thermal shock, moisture, aging, and other tests.



Support and Services:

Environmental Test Chamber Technical Support and Service

We offer comprehensive technical support and service for our Environmental Test Chambers. Our expert technicians are available to answer any questions you may have and provide guidance on installation, troubleshooting, and maintenance.

We also offer periodic calibration and repairs, so you can be sure that your Environmental Test Chamber is in top condition and performing to its highest potential. Additionally, we provide access to a library of software and firmware updates, so you can stay up-to-date with the latest features and capabilities.

If you have any questions or concerns about your Environmental Test Chamber, please contact us and one of our technicians will be happy to help.



Packing and Shipping:

Packaging and Shipping Environmental Test Chamber

Environmental test chambers are robustly packaged to ensure safe and secure transportation. The chambers are packed in wooden crates, surrounded by foam inserts to minimize shock and vibration. They are securely fastened to prevent any unexpected movement.

For international shipping, tracking information and insurance is provided. Customers are able to track the package from the time it leaves our warehouse until it reaches its destination.



FAQ:

Q: What is the Brand Name of the Environmental Test Chamber?
A: The Brand Name of the Environmental Test Chamber is Infinity Machine.
Q: What is the Model Number of the Environmental Test Chamber?
A: The Model Number of the Environmental Test Chamber is IE10A800L.
Q: Where is the Environmental Test Chamber made?
A: The Environmental Test Chamber is made in China.
Q: What is the Environmental Test Chamber used for?
A: The Environmental Test Chamber is used to simulate the environment to test products.
Q: What are the features of the Environmental Test Chamber?
A: The Environmental Test Chamber has features such as temperature control, humidity control, and low noise levels.
