| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IE10A225L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Temperature Range: | -70℃ ～ +150℃ | Humidity Fluctuation: | ±1.0％RH |
|---|---|---|---|
| Refrigeration Compressor: | France Taikang Fully Closed Compressor (2 Sets) | Box Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
| Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres | Condenser System: | Air-cooled |
| Humidity Control Range: | 20%R.H～98%R.H | Capacity: | 250L |
| Humidity: | 85%~98%RH | Temperature Range: | ± 0.5℃ |
| Salt Spray Subside: | 1.0~2.0ml/80cm2/h | Test Room Size: | 900x600x450mm |
| Machine Size: | 1460x910x1280mm | Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Power Supply: | AC220V 15A Or Specified By User | Water Way: | Atered By Itself While Lack Of Water |
| Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. | Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. |
| Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability | Spray Material: | Transparent PVC |
| Spray Material: | Transparent PVC | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
| SSR: | Precisely Digital Thermal Controller With Spray Protection System. | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
| Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 | Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. |
| Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. | ||
| High Light: | Air Cooling Environmental Test Chamber,Single Door Environmental Test Chamber |
||

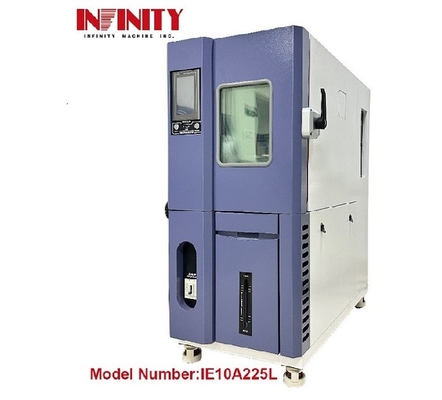

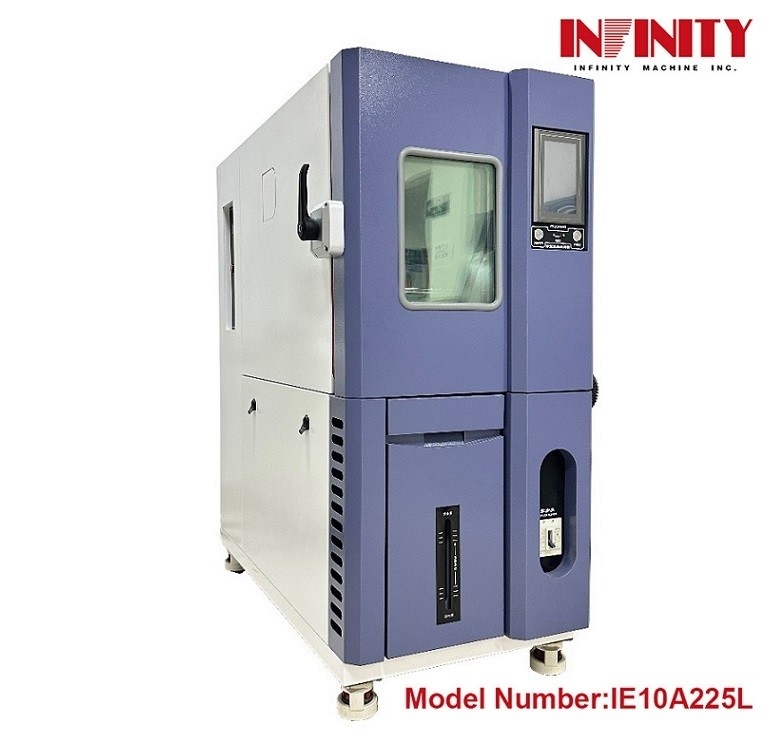

Advanced High And Low Temperature Test Chamber With ±0.5C Temperature Fluctuation
The Environmental Test Chamber is the perfect environmental testing equipment used to simulate a wide range of environmental conditions. It has a heating rate from -70℃ to +100℃ within 90 minutes (no load, ambient temperature +25℃). It also has a humidity deviation of ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH). The warm box is made of high quality carbon steel plate for electrostatic color spray treatment with a φ50mm diameter hole on the left side. The internal wall is made of SUS304# stainless steel plate with hard polyurethane foam insulation layer and glass fiber. It has a power supply of AC380;V50Hz;7KW and an air-cooled condenser system. The Environmental Test Chamber is the perfect choice for environmental testing. It is designed to provide accurate and reliable testing results. It is the ideal equipment for any laboratory or industry that needs to test temperature and humidity.
| Parameter | Description |
|---|---|
| Product Name | Programmable Constant Temperature And Humidity Test Box |
| Model Number |
IE10A225L |
| Condenser System | Air-cooled |
| Temperature Range | -70℃～+150℃ |
| Humidity Deviation | ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| Humidity Uniformity | ±3.0％RH(no-load) |
| Cooling Rate | From +20℃ To -70℃ Within 90min (no Load, Ambient Temperature +25℃) |
| Lighting Device | 1 LED Lighting Device, Installed On The Window. |
| Refrigeration Compressor | France Taikang Fully Closed Compressor (2 Sets) |
| Safety Protection Device | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Overcurrent Protection; Overvoltage Underinverse-phase Protection; Circuit Breaker; Leakage Protection; Humidifier Low Water Level Protection; Tank Low Water Level Warning. |
Infinity Machine's environmental test chamber IE10A225L is an important tool to simulate different climate conditions for scientific research and product development. It has an air-cooled condenser system and interior dimension of WxHxD(mm): 500x750x600. This test chamber offers precise humidity deviation of ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH). It has a rapid heating rate from -70℃ to +100℃ within 90min (no load, Ambient Temperature +25℃). The power supply of this test chamber is AC380;V50Hz;7KW. The environmental test chamber is widely used in the fields of electronics, electrical appliances, automotive, aerospace, medical, pharmaceutical, materials and other industries for high and low temperature test, temperature shock test, thermal cycling test, humidity test, temperature and humidity combined test, etc.
Infinity Machine's environmental test chamber IE10A225L is the perfect choice for climate test chamber, high and low temperature test chamber, environmental test chamber, etc. It is made in China and provides reliable and accurate test results for scientific research and product development. With this test chamber, you can simulate different climate conditions and test the performance, reliability and durability of products.
Brand Name: Infinity Machine
Model Number: IE10A225L
Place of Origin: Made In China
Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Temperature uniformity: ≦2.0℃
Temperature range: -70℃ ～ +150℃
Carton size : WxHxD(mm): 720×1650×1370
Humidity fluctuation: ±1.0％RH
Infinity Machine's IE10A225L Environmental Test Chamber is made in China and has a W 300×H 400mm Observation Window installed on the door of the box which can effectively keep heat and prevent condensation. It has a temperature range of -70℃ ～ +150℃ and temperature uniformity of ≦2.0℃, humidity fluctuation of ±1.0％RH and a carton size of WxHxD(mm): 720×1650×1370.
Our Environmental Test Chamber provides a comprehensive range of technical support and services, including:
Environmental Test Chamber Packaging and Shipping:
