Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber

Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber

  • Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber
  • Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber
Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE10A1800L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Humidity Deviation: ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) Temperature Uniformity: ≦2.0℃
Inspection Window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. Cooling Rate: From +20℃ To -20℃ Within 40min (no Load, Ambient Temperature +25℃)
Refrigeration Compressor: France Taikang Fully Closed Compressor Box Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature
Carton Size : WxHxD(mm): 1220×1940 ×1620 Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Highlight:

Constant Temperature And Humidity Test Box

,

Programmable Constant TemperatureHumidity Test Box

Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber



Programmable Constant Temperature And Humidity Test Box

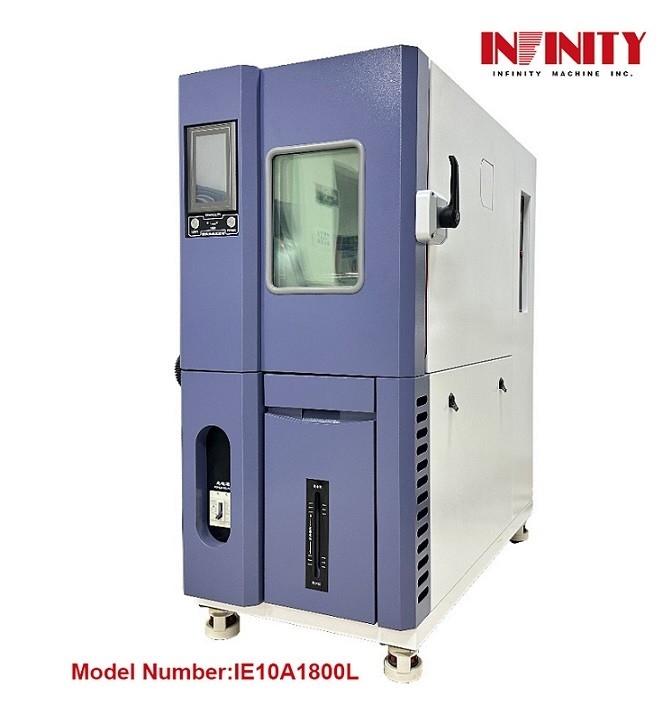

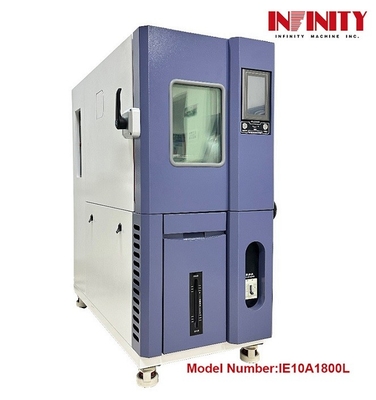

Model:IE10A1800L






Programmable Constant Temperature And Humidity Test Box High And Low Temperature Test Chamber 0

Product Description:

The Environment Test Chamber is an advanced Environmental Testing Equipment that can provide a precise and reliable test environment for products and materials. It is designed to simulate a variety of environmental conditions such as temperature, humidity, light, pressure, and other environmental factors. The Constant Temperature and Humidity Test Box provides a stable and uniform testing environment for the products and materials. It is equipped with a power supply of AC380;V50Hz;9KW and a temperature fluctuation of ±0.5℃, as well as a humidity uniformity of ±3.0%RH(no-load). It also features a 1 LED Lighting Device installed on the window. This Environmental Test Chamber is ideal for testing the performance of products and materials in different environment conditions.



Features:

  • Environmental Test Chamber
  • Humidity uniformity: ±3.0%RH(no-load)
  • Humidity fluctuation: ±1.0%RH
  • Model number: IE10A1800L
  • Carton size : WxHxD(mm): 1220×1940 ×1620
  • Safety protection device: Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Overcurrent Protection; Overvoltage Underinverse-phase Protection; Circuit Breaker; Leakage Protection; Humidifier Low Water Level Protection; Tank Low Water Level Warning.


Technical Parameters:

Parameters Values
Heating rate From -20℃ To +100℃ Within 40min (no Load, Ambient Temperature +25℃)
Temperature fluctuation ±0.5℃
Warm box External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole
Inner Wall Material :SUS304# Stainless Steel Plate
Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.
Interior dimension WxHxD(mm): 1000×1000×800
Cooling rate From +20℃ To -20℃ Within 40min (no Load, Ambient Temperature +25℃)
Temperature uniformity ≦2.0℃
Humidity control range 20%R.H~98%R.H
Carton size WxHxD(mm): 1220×1940 ×1620
Humidity fluctuation ±1.0%RH
Sample Stand Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.





Applications:

Infinity Machine's IE10A1800L Environmental Test Chamber is a versatile and reliable testing equipment that can be used to simulate various environmental conditions. It is designed to provide users with precise and reliable temperature and humidity control. The temperature range is from -20℃ to +150℃, and the cooling rate is from +20℃ to -20℃ within 40 minutes (no load, ambient temperature +25℃). The humidity control range is from 20%R.H to 98%R.H. It is made with high quality materials, such as stainless steel plate and carbon steel plate. The external wall is treated with electrostatic color spray while the inner wall is made of SUS304# stainless steel plate. The insulation layers are made of hard polyurethane foam and glass fiber. Moreover, Infinity Machine's Environmental Test Chamber is designed to use non-fluorine environmental refrigerant R404A, which is in line with environmental regulations and is safe and non-toxic. With its reliable performance and versatility, it is the perfect choice for high and low temperature test chamber and environmental testing equipment.



Customization:

Environmental Test Chamber

  • Brand Name: Infinity Machine
  • Model Number: IE10A1800L
  • Place of Origin: Made In China
  • Refrigeration compressor: France Taikang Fully Closed Compressor
  • Product name: Programmable Constant Temperature And Humidity Test Box
  • Humidity uniformity: ±3.0%RH(no-load)
  • Condenser system: Air-cooled
  • Humidity control range: 20%R.H~98%R.H

Keywords: Environmental Testers, Aging Test Chamber, Environmental Testers, Temperature Humidity Test Chamber.



Support and Services:

Environmental Test Chamber Technical Support and Service
  • Provide technical and operational support to customers
  • Provide comprehensive service and maintenance for Environmental Test Chamber
  • Provide online and onsite repair services
  • Provide training courses and user manuals
  • Provide technical consultancy and advice
  • Provide remote monitoring and diagnostics for Environmental Test Chamber
  • Provide fast and reliable response times


Packing and Shipping:

Packaging and Shipping

Environmental Test Chambers are carefully packaged to ensure safe arrival to the destination. Each chamber is packed in high-quality materials to protect the unit from the elements while being shipped. The chambers are then secured in heavy-duty wooden crates with foam inserts to prevent any damage in transit.

The chambers are shipped via standard freight carriers, with a transit time of approximately five business days. All shipments are fully insured and tracked to ensure safe and timely delivery to the end-user.



FAQ:

Q1: What is an Environmental Test Chamber?
Answer: An Environmental Test Chamber is a testing device used to test the performance of products under extreme temperature and humidity conditions. It simulates and observes the behavior of products under real-world conditions.
Q2: What is the brand name and model of the Environmental Test Chamber?
Answer: The brand name is Infinity Machine, and the model number is IE10A1800L.
Q3: Where is this Environmental Test Chamber made?
Answer: This Environmental Test Chamber is made in China.
Q4: What are the features of this Environmental Test Chamber?
Answer: This Environmental Test Chamber offers features such as a microprocessor-based temperature and humidity control system, a low-noise fan for air circulation, and a stainless steel chamber for durability.
Q5: What types of tests can be conducted with this Environmental Test Chamber?
Answer: This Environmental Test Chamber can be used to conduct tests such as temperature & humidity tests, accelerated aging tests, vibration tests, and environmental stress tests.
