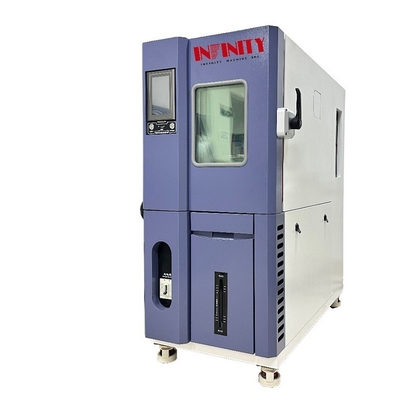

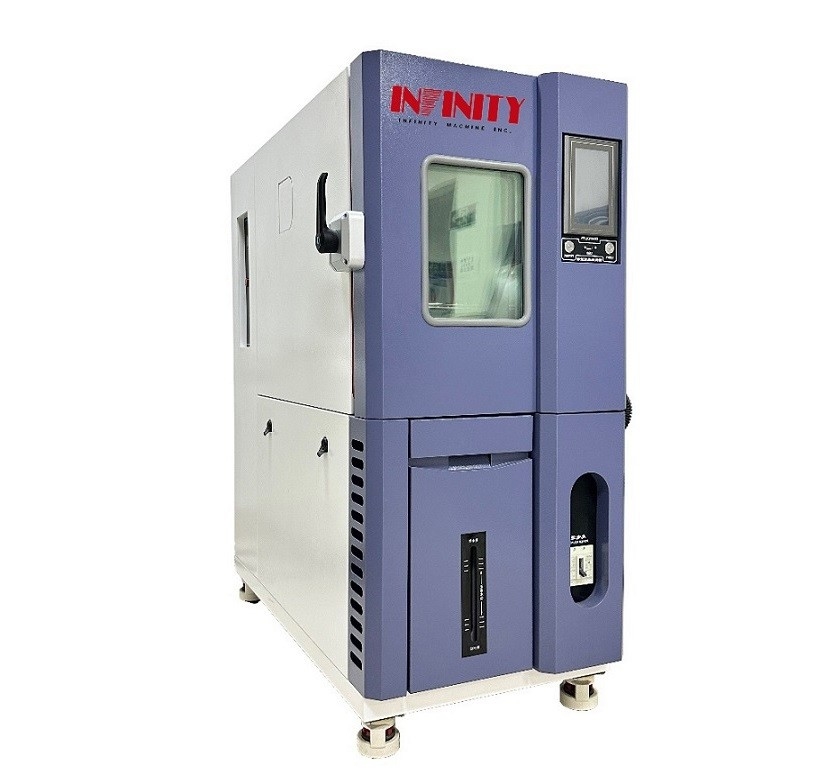

Product Description:

TheProgrammable Constant Temperature And Humidity Test Chamber of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".

Features:

• Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity
• Easy to operate: programmable color LCD touch controller includes PID control; Experimental data recording and processing methods are flexible
• High reliability: The key parts are imported parts to ensure service life and reliability

Technical Parameters:

Model number	IE10A1408L
Temperature range	-20℃ ～ +150℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦2.0℃
Heating rate	From -20℃ to +100℃ within 40min (no load, ambient temperature +25℃)
Cooling rate	From +20℃ to -20℃ within 40min (no load, ambient temperature +25℃)
Humidity control range	20%R.H～98%R.H
Humidity deviation	±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Humidity uniformity	±3.0％RH(no-load)
Humidity fluctuation	±1.0％RH
Temperature humidity range
Interior dimension:WxHxD(mm)	600×850×800
Carton size :WxHxD(mm)	820×1750 ×1580
Warm box	● External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate ●Insulation material: hard polyurethane foam insulation layer + glass fiber.
Box door	For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window	The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.
Lighting device	1 LED lighting device, installed on the window.
Sample Stand	Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor	France Taikang fully closed compressor
Coolants	Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic
Condenser system	Air-cooled
Safety protection device	Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning.
Power supply	AC380;V50Hz;7KW

Applications:

The Programmable Constant Temperature And Humidity Test Chamber suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.

Applicable Standard:

• GB-2423.1-2008(IEC68-2-1) Test A: low temperature test method.
• GB-2423.2-2008(IEC68-2-2) test B: high temperature test method.
• GJB360.8-2009(MIL-STD.202F) High temperature life test.
• GJBl50.3-2009(MIL-STD-810D) High temperature test method.
• GJBl50.4-2009(MIL-STD-810D) Low temperature test method.
• GB2423.3-2008(IEC68-2-3) Test Ca: constant wet heat test method.
• GB2423.4-2008(IEC68-2-30) test Db: alternating wet heat test method
• GJBl50.9-2009(MIL-STD-810D) wet heat test method

Support and Services:

Technical Support and Service for Programmable Constant Temperature And Humidity Test Chamber

We are committed to providing our customers with high-quality technical support and service for our Programmable Constant Temperature And Humidity Test Chamber products. Our team of experienced engineers and technicians is available 24/7 to provide you with prompt, efficient and effective services.

We offer a variety of services to meet your needs, including:

• Installation and setup
• Repair and maintenance
• Troubleshooting and diagnostics
• Customization and upgrades

We also offer comprehensive warranties on all of our products.

If you have any questions or require any assistance, please do not hesitate to contact us.

Packing and Shipping:

Packaging and Shipping for Programmable Constant Temperature And Humidity Test Chamber:

The Programmable Constant Temperature And Humidity Test Chamber will be securely packaged for shipping. All necessary materials, such as styrofoam, bubble wrap, and cardboard, will be used to ensure that no damage occurs during transit. The packaging will also be labeled with the necessary identification information for the shipment.

The Programmable Constant Temperature And Humidity Test Chamber will be shipped via a reputable shipping service. All orders will be tracked and insured to ensure they reach their destination in a timely manner.
