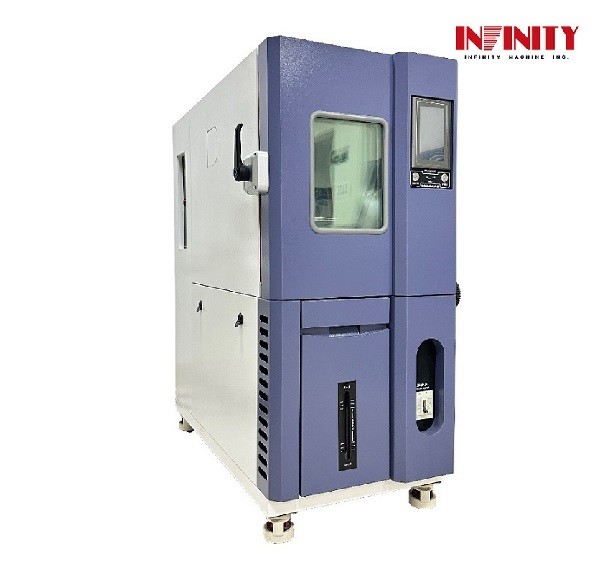

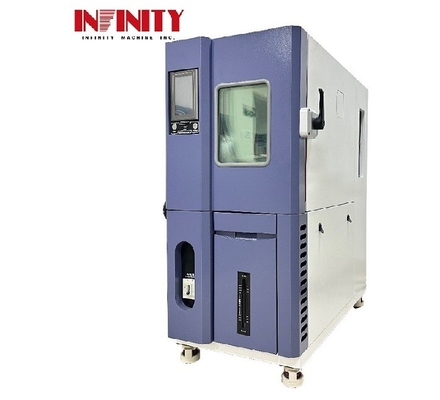

High And Low Temperature Test Chamber France Taikang Fully Closed Compressor

High And Low Temperature Test Chamber France Taikang Fully Closed Compressor

  • High And Low Temperature Test Chamber France Taikang Fully Closed Compressor
  • High And Low Temperature Test Chamber France Taikang Fully Closed Compressor
High And Low Temperature Test Chamber France Taikang Fully Closed Compressor
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE10A1150L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic Lighting Device: 1 LED Lighting Device, Installed On The Window.
Power Supply: AC220V;50Hz;4.5KW Interior Dimension: WxHxD(mm): 500x600x500
Temperature Range: -20℃ ~ +150℃ Temperature Fluctuation: ±0.5℃
Box Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Fully Closed Compressor Temperature Test Chamber

,

High And Low Temperature Test Chamber

France Taikang Fully Closed Compressor High And Low Temperature Test Chamber



Programmable Constant Temperature And Humidity Test Chamber





Model:IE10A1150L

High And Low Temperature Test Chamber France Taikang Fully Closed Compressor 0

Product Description:

The Programmable Constant Temperature And Humidity Test Chamber of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".

Features:

  1. Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity
  2. Easy to operate: programmable color LCD touch controller includes PID control; Experimental data recording and processing methods are flexible.
  3. High reliability: The key parts are imported parts to ensure service life and reliability

Technical Parameters:

Parameters Details
Model number IE10A1150L
Temperature range -20℃ ~ +150℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≦2.0℃
Heating rate From -20℃ to +100℃ within 40min (no load, ambient temperature +25℃)
Cooling rate From +20℃ to -20℃ within 40min (no load, ambient temperature +25℃)
Humidity control range 20%R.H~98%R.H
Humidity deviation

±3.0%RH(>75%RH)

  ±5.0%RH(≤75%RH)

Humidity uniformity ±3.0%RH(no-load)
Humidity fluctuation ±1.0%RH
Temperature humidity range High And Low Temperature Test Chamber France Taikang Fully Closed Compressor 1



Interior dimension:WxHxD(mm)

500x600x500

Carton size :WxHxD(mm)

720×1500×1270
Warm box

● External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate

●Insulation material: hard polyurethane foam insulation layer + glass fiber.

Box door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature

Inspection window



The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.

Lighting device



1 LED lighting device, installed on the window.
Sample Stand Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor France Taikang fully closed compressor

Coolants



Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic
Condenser system Air-cooled

Safety protection device



Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection;

Tank low water level warning.

Power supply AC220V;50Hz;4.5KW


Applications:



The Programmable Constant Temperature And Humidity Test Chamber  suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.





Applicable Standard:



  • GB-2423.1-2008(IEC68-2-1) Test A: low temperature test method.
  • GB-2423.2-2008(IEC68-2-2) test B: high temperature test method.
  • GJB360.8-2009(MIL-STD.202F) High temperature life test.
  • GJBl50.3-2009(MIL-STD-810D) High temperature test method.
  • GJBl50.4-2009(MIL-STD-810D) Low temperature test method.
  • GB2423.3-2008(IEC68-2-3) Test Ca: constant wet heat test method.
  • GB2423.4-2008(IEC68-2-30) test Db: alternating wet heat test method
  • GJBl50.9-2009(MIL-STD-810D) wet heat test method



Support and Services:

The Programmable Constant Temperature And Humidity Test Chamber Technical Support and Service

At ABC Company, we provide technical support and service for our Programmable Constant Temperature And Humidity Test Chamber . Our technicians are available to assist with installation, calibration, operation, maintenance, and repairs for all our products.
We offer both remote and on-site assistance, as well as comprehensive technical support packages tailored to meet the specific needs of our customers.
Our technicians are trained to the highest standards and have a wealth of experience in the Programmable Constant Temperature And Humidity Test Chamber industry.
For more information about our Programmable Constant Temperature And Humidity Test Chamber technical support and service, please contact us today.



Packing and Shipping:

The Programmable Constant Temperature And Humidity Test Chamber  Packaging and Shipping:
The Programmable Constant Temperature And Humidity Test Chamber  is packaged with materials approved by the manufacturer. All products are safely wrapped and shipped with protective materials such as bubble wrap and styrofoam. The box used for shipping is durable and designed to withstand shocks and vibrations. The box is labeled with the contents and shipping information.
