UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃

UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃

  • UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃
  • UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃
UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IE61313
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in15 days after payment
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power Supply: AC220V;50Hz;5KW Effective Irradiation Region: 900×210mm
Box Structure: Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes Center Distance Inside The Lamp: 70mm
Temperature Uniformity: ≦1.0℃ Box Size:(WxHxD(mm): 1180*650*600
Irradiance: Adjustable Within 1.0W/m2 The Distance Between The Specimen And The Center Of The Lamp: 50±3mm
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Irradiance Adjustable UV Weathering Test Chamber

,

Adjustable 1.0W/M2 UV Weathering Test Chamber



UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2,Temperature Range:RT+20℃~70℃

UV Weathering Test Chamber



Model Number:IE61313

UV Weathering Test Chamber Irradiance Adjustable Within 1.0W/M2 Temperature Range RT+20℃~70℃ 0

Product Description:

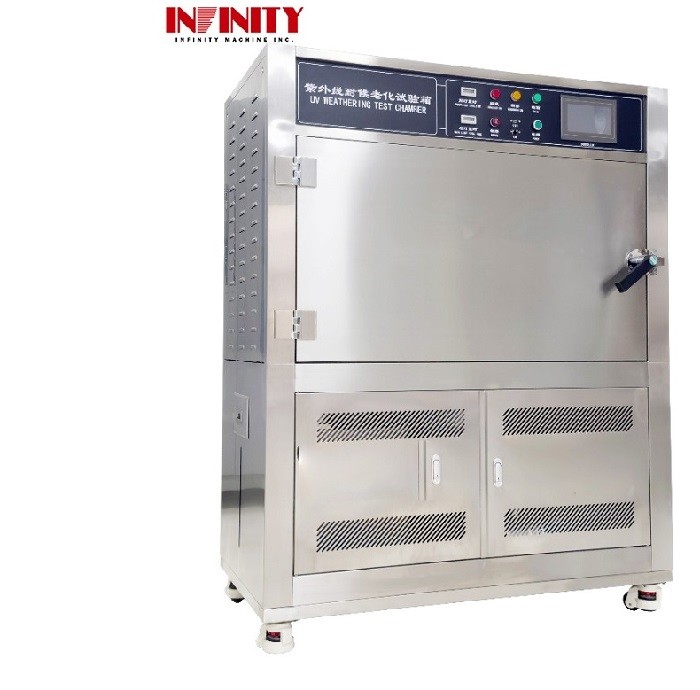

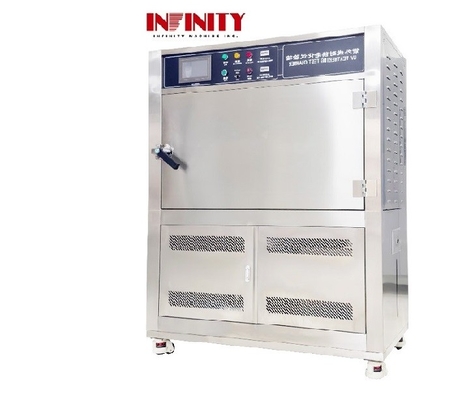

The UV Weathering Test Chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.



Features:

  • Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.
  • Provides the best sunlight UV simulation, low maintenance and easy to use
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.



Technical  Parameter:

Parameter Details
Model number IE61313
Temperature range RT+20℃~70℃
Humidity range ≥90%RH
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Center distance inside the lamp 70mm
The distance between the specimen and the center of the lamp 50±3mm
Modulator tube UVB-313 L=1200/40W,8 pieces
Irradiance Adjustable within 1.0W/m2
Ultraviolet wavelength 280-315nm
Effective irradiation region 900×210mm
Irradiated blackboard temperature 50℃~70℃
Interior dimension:WxHxD(mm) 1180*650*600
Carton size:WxDxH(mm) 1300*620*1630
Box structure Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes
Sample holder Aluminum frame base frame vision plate, 24 pairs
Standard sample size 75×290mm(Special specifications need to be specified)
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, overtemperature alarm, water shortage protection
Power supply AC220V;50Hz;5KW


Applicable  Standard:

  • ASTM D4329,D499,D4587,D5208,G154,G53;
  • ISO 4892-3,ISO 11507;
  • EN 534;EN 1062-4;BS 2782;JIS D0205;SAE J2020



Support and Services:

UV Weathering Test ChamberTechnical Support and Service

Infinity company offer reliable technical support and service for your UV Weathering Test Chamber, with comprehensive support for you to choose from. Our team of experienced technicians are available to help with any questions or issues you have with your test chamber.

We offer a wide range of technical services, including installation, calibration, maintenance, repair, and troubleshooting. We also offer remote assistance for more complex issues, as well as on-site technical visits for more in-depth assistance. Our team is always available to answer your questions and provide the best solutions for your test chamber.

We're committed to providing the best customer service and support for your environmental test chamber. Our team of experts is dedicated to helping you get the most out of your test chamber and ensure a successful testing experience.



Packing and Shipping:

Packaging and Shipping for UV Weathering Test Chamber

The UV Weathering Test Chamber must be properly packaged and shipped. All components should be securely fastened to the inside of the chamber to prevent movement and potential damage during shipping. The chamber should be covered with a protective material such as bubble wrap or foam, and securely sealed with tape.

The chamber should be shipped in an appropriate sized cardboard box or crate that is strong enough to protect the chamber from potential damage during shipping. A packing list should be included in the box or crate and it should include the number of items, weight, and dimensions of the chamber.

The chamber should be shipped with a shipping company that provides tracking numbers and insurance. The tracking number should be kept in a safe place in case the shipment is lost or damaged.
