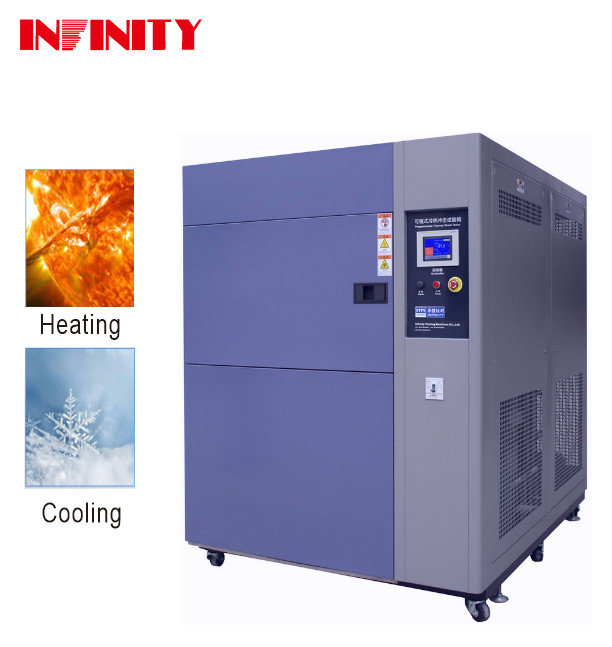

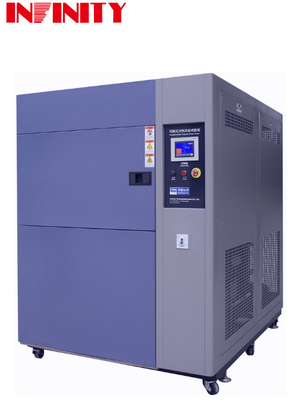

100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab

100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab

  • 100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab
  • 100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab
100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: ISO
Model Number: IN-TS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Thermal Shock Test Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Thermal Shock Test Equipment: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Thermal Shock Environment Testing Chambers: 10 sets per month
Contact Now
Detailed Product Description
Pre-heating Temp-range: 0℃~-78℃ Pre-cooling Temp-range: +60℃~+200℃
Temp-accuracy: ±3℃ Temp-change Time: 5 Min
Time For Heating Up: 40min For +20℃~+150℃ Interior Material: Stainless Steel 304 (bright Surface)
Exterior Material: Stainless Steel 304 (coated Surface) Warranty: 1 Year
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Bright Surface Environmental Test Chambers

,

300L Environmental Test Chambers

,

600L Thermal Shock Chamber

Environmental Test Chambers Manufacturer Thermal Shock Chamber for Laborotary 100L 150L 200L 300L 600L



Thermal Shock Environmental Testing Chambers

Model: IN-TS-50 / 100 / 150 / 200 / 300 / 600





Working principles:

Thermal shock test equipment is simulate low temperature and high temperature testing, according to the action, thermal shock climate test chamber move the basket into the cold and hot grooves quickly, thus achieving a rapid temperature shock effect. Thermal shock climate Machine is using the BTC system and the special designs of air circulation system, controlling the SSR by P.I.D. and making the heating capacity of the system be equal to the heat loss and ensure long-time stable using.

100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 0

Purpose:

Thermal shock climate test equipment can be used to test the structure of materials or to test the tolerance level of composite materials at the moment of extremely high temperature and extremely low temperature continuous environment to test its chemical changes or physical damages caused by heat-expansion and cold-contraction in the shortest possible time. The applicable materials include metal, plastic, rubber, electronics and so on which can be used as a basis or reference for improving its products.



Standard:

GB/T 2423.1-2001, GB/T 2423.2-2001, GB/T2423.22-2002GJB/150.3-1986, GJB-150.4-1986, GJB/150.5-1986

IEC 60 068-2-14. Environmental testing-Part 2-14:Tests-Test N: Change of temperature, IDT.



Feature:

Ø External material: imported rushed stainless steel SUS304#, internal material: imported matte stainless steel SUS304#.

Ø Continually measure the heat required during the pre-cooling and pre-heating process in energy-saving operation mode to calculate the shortest operation time of these processes. This function can further reduce the power consumption according to the preliminary test, and eliminate the inaccuracy and annoyance caused by the adjustment. When testing, energy saving can be achieved with reproducibility and reliability.

Ø Mobile platform management APP (iOS) can be equipped to realize remote monitoring and control.

Ø Ethernet network management can be equipped to realize the test data cloud storage, USB data download and other functions.

Ø Load power supply 6 ON/OFF output control can be equipped to protect the safety of equipment and products to be tested.

Ø The network video monitoring function can be equipped to synchronize with the tests.

Ø Defrost components can be equipped to achieve 15-minute exposure test without interruption being continuously operated for 500 cycles.

Ø After finishing tests, thermal shock test machinery return to the normal temperature to improve the operation safety and protect products to be tested.

Ø Independent sensors are equipped to protect sample, which conforms to the standard NE60519-2.1993.

Ø 2 pieces of 304# stainless steel sample holders are equipped.



100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 1 Specification:



Model IN-TS-50 IN-TS-100 IN-TS-150 IN-TS-200 IN-TS-300 IN-TS-600
Preheating Temp-range 0℃~-78℃
Precooling Temp-range +60℃~+200℃
Temp shocking range High temp:+60℃~+150℃, Low temp: A type:-10℃~-40℃; B type:-10℃~-55℃; C type:-10℃~-65℃;
Temp-accuracy ±3℃
Temp-change time 5 min
Time for cooling down 70min for +20℃~-40℃, 80min for +20℃~-55℃, 90min for +20℃~-65℃
Time for heating up 40min for +20℃~+150℃
Test room/WxHxD cm 35x40x36 50x40x40 60x50x50 65x50x62 90x50x67 100x80x75
Dimension/WxHxD cm 135x175x137 140x180x137 150x185x150 150x185x165 180x185x170 200x220x185
Interior material Stainless steel 304 (bright surface)
Exterior material Stainless steel 304 (coated surface)
Thermal Insulation material Rigid polyfoam (To use glass wool at 150℃)
Cooling system Cascade refrigeration system
Accessories Freely adjustable shaft for 2 layer, test hole for 1pcs at ¢50mm
Weight 150Kg 250Kg 300Kg 400Kg 600Kg 700Kg
Power supply

AC380V 20KW

Or specified

AC380V 22KW

Or specified

AC380V 25KW

Or specified

AC380V 35KW

Or specified

AC380V 50KW

Or specified

AC380V 65KW

Or specified





100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 2

100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 3 100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 4 100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 5 100L 150L 200L 300L 600L Environmental Testing Thermal Shock Test Chamber For Lab 6
