| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | ISO |
| Model Number: | C5092 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cable swing test equipment: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Cable swing testing machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test Amount: | 2pcs | Test Speed: | 10~60rpm±2cpm (Frequent User Of 13rpm) |
|---|---|---|---|
| Angle Range: | 90° | Min Display Angle: | ±1° |
| Dia.of Rotation Plate: | 275mm | Dimension: | 1280x724x1320mm |
| Weight: | 350kg | Power Supply: | AC220V 50Hz 5A Or Specified By User |
| High Light: | Wire Swing Bend Testing Machine,Cable Swing Bend Testing Machine,Bending Test Machine 275mm |
||
Model: C5092
Purpose:
Cable swing test machine is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc. Cables bend resistance testing method is short –circuit connecting one end cable and fix this end on the rotation plate, and put the weight on the cable then to do the left and right rotation, to check the cable if conducting after some rotation testing and evaluate the quality of the cable.
Test standards:
Cable Bending Lifetime Testing
Specification:
| Products | Wire Swing Left And Right Test Machine |
| Model | C5092 |
| Test amount | 2 PCS |
| Test speed | 10~60rpm±2cpm (Frequent user of 13rpm) |
| Angle range | 0~90° / 180° (One cycle is from left to right and back to the left.) |
| Min display angle | ±1° |
| Testing cycles | 1～999,999times |
| Guide wheel diameter | Ø26, 38, 50, 62, 74, 86, 98, 110, 122 (changeable) 4 sets |
| Dia.of Rotation plate | 275mm |
| Weights | 100g, 200g, 500g, 1000g 2 sets |
| Dimension (WxDxH) | 1280x724x1320mm |
| Weight | 350kg |
| Power supply | AC220V 50Hz 5A or specified by user |

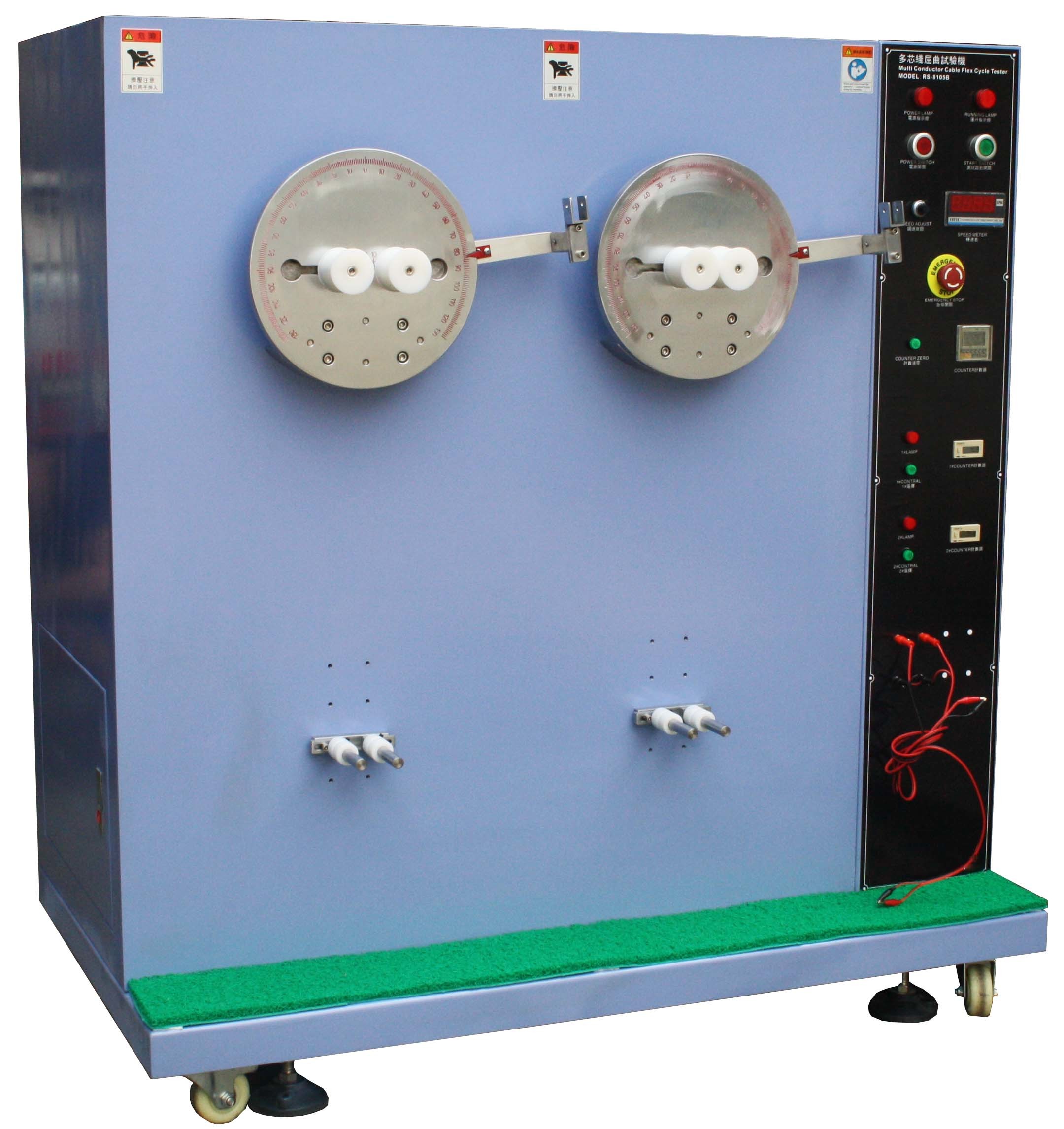

Picture:
