| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | ISO |
| Model Number: | IN-IP56X-512L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Dust Resistance Test Equipment: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Dust Resistance Testing Machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Dust Resistance Test Machine: 50 sets per month |
| Product Name: | IP5X IP6X Dust Resistance Tester | IP Rating: | IP5X IP6X |
|---|---|---|---|
| Test Cabinet Size: | 800x800x800mm | Temperature Range: | RT+10℃~70℃ (can Be Discussed) |
| Raining Force: | 50um | Standard Spacing Between Wires: | 75um |
| Talcum Powder Dosage: | 2～4kg/m3 | Dust Fall Method: | Dust Free Fall |
| Dust Used For Test: | Dry Talcum Powder | Power Supply: | AC220V 50Hz Or AC 120V 60Hz |
| Capacity: | 250L | Humidity: | 85%~98%RH |
| Temperature Range: | ± 0.5℃ | Salt Spray Subside: | 1.0~2.0ml/80cm2/h |
| Test Room Size: | 900x600x450mm | Machine Size: | 1460x910x1280mm |
| Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Power Supply: | AC220V 15A Or Specified By User |
| Water Way: | Atered By Itself While Lack Of Water | Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. |
| Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability | Spray Material: | Transparent PVC |
| SSR: | Precisely Digital Thermal Controller With Spray Protection System. | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
| Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 | Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 |
| Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. | Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. |
| High Light: | IEC60529 Dust Proof Chamber,IP6X Dust Proof Chamber For Lab,IP5X Dust Testing Equipment |
||
Purpose:
Dust resistantance testing machine is to test the physical and other related properties of products such as electronic & electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts & components under the climate conditions of simulated dust. After testing, verification is conducted to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and ex-factory inspection.
Standard:
This dust resistantance test equipment is comply with the requirements of IEC60529:1989 A1: 1999 A2: 2013 Degrees of Protection Provided by Enclosures (IP Code), Clauses 13.4 & 13.5 and Fig. 3 of GB4208-2008 Enclosure Protection Class (IP Code), and Clauses 9.2.1 & 9.2.2 and Fig. 6 of GB7000.1 Luminaires Part I: General Requirements and Tests.
Features:
1. This lab powder testing machine is suitable for IP5X and IP6X dust-proof rating test for products.
2. The outer enclosure is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, beautiful and durable.

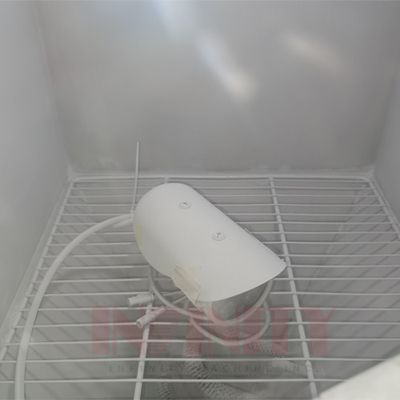

3. Inner chamber and sample holder are made of stainless-steel plate to ensure long-term use without rust.
4. There is a transparent observation window (toughened glass material) on the door and an LED lamp installed in the chamber to facilitate the observation of internal testing.
5. The bottom of dust-proof testing equipment is has dust-replaceable device, which can replace used dust easily.
6. The working time is adjustable, and manual and auto mode operation can be alternated automatically.
7. There is a suction pipe in the chamber, which can evacuate the sample (sample is required to reserve suction hole ).
8. Heating system: the circulating air duct is equipped with a heater to heat dust so as to avoid dust condensation. Cladding type mica plate heating ring of the duct guarantees safe and stable heating; cladding type mica plate heating ring.
9. Vacuum system: equipped with vacuum pump, negative pressure meter, air filter, air flow meter, pressure-regulating triplet, connecting pipe.
10. Dust-proof test machine is more practical and easier to control on the basis of stable performance in all aspects on the premise of meeting national standards.
11. Dust resistance climate test machine is easy to install, easy to operate, and basically does not require daily maintenance.
12. IP5X IP6X dust climate chamber control system: can display year, month, day, time and working time, etc.; dust test system can control the dust blower, dust vibration and total test time separately; the controller has a variety of setting control functions as described below;
Ø Dust blowing time (stop and blow): arbitrary time set for continuous and periodic dust blowing;
Ø Vibration time: time of vibration and of stopping vibration are automatically alternated;
Ø Preset test time: the maximum test time is 99 hours 59 minutes;
Ø Power on: off - on - off.
Specification:
| Products | Dust Resistance Environmental Test Chamber |
| Model | IN-IP56X-125L |
| Inner size | L500*D500*H500mm |
| Outer size | About L950 * D720 * H1500mm |
| Temperature range | RT+10℃~70℃(can be discussed) |
| Relative humidity | <30% (display or not is option) |
| Standard wire diameter of mesh mesh | 50um |
| Standard spacing between wires | 75um |
| Talcum powder dosage | 2~4kg/m3 |
| Velocity of powder outlet | 6m/s |
| Dust used for test | Dry talcum powder |
| Dust fall method | Dust free fall |
| Total test time | 0-999H (adjustable) |
| Vibration time | 0-999H (adjustable) |
| Timing precision | ±1 second |
| Vacuum degree | 0-10Kpa (adjustable) |
| Evacuation rate | 0-2,400L/H (adjustable) |
| Sample supply | Test sample power supply |
| Test sample power supply | AC220V 50Hz or AC120V, 60Hz single phase(option) |
| Equipment power supply | 1.5KW |
| Safety protection function | Leakage protection, short circuit protection |

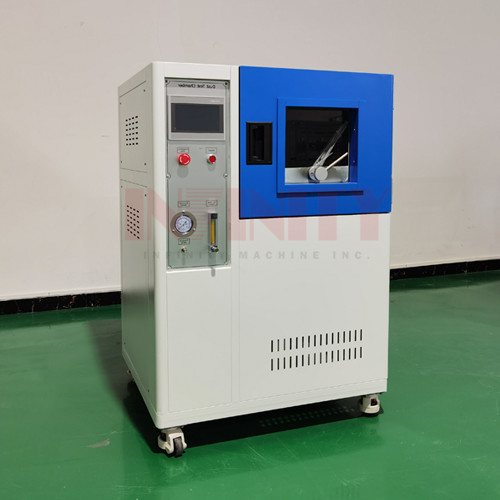

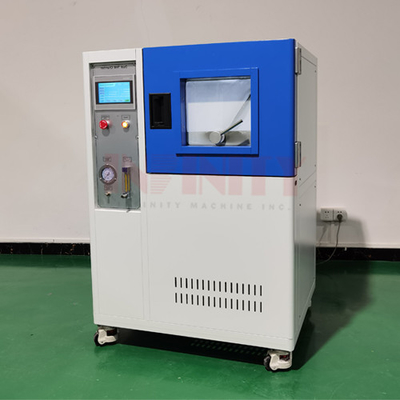

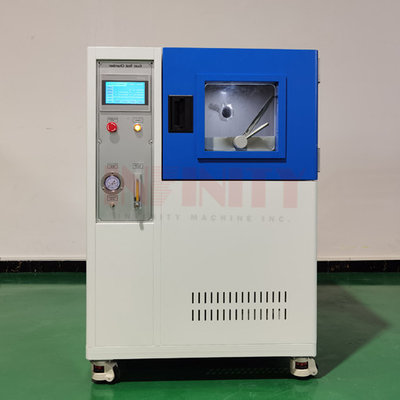

Pictures:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
