|Place of Origin:||Made in China|
|Brand Name:||Infinity Machine|
|Minimum Order Quantity:||1|
|Packaging Details:||Water testing chamber: Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Water proof test chamber: Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||Water jet test chamber: 50 sets per month|
|Product Name:||IPX5 IPX6 Waterproof Tester||Test Cabinet Size:||500x500x500mm|
|IPX5 Diameter Of Spray Hole:||6.3mm||IPX6 Diameter Of Spray Hole:||12.5mm|
|IPX5 Spray Flow:||12.5±0.625L/min||IPX6 Spray Flow:||100±5L/mi|
|Max Load:||50kg||Sample Power Supply:||AC220V 50Hz Or Specified By User|
|Power Supply:||AC380V 50Hz Or Specified By User||Test Standard:||IEC60529:1989, GB4208-2008|

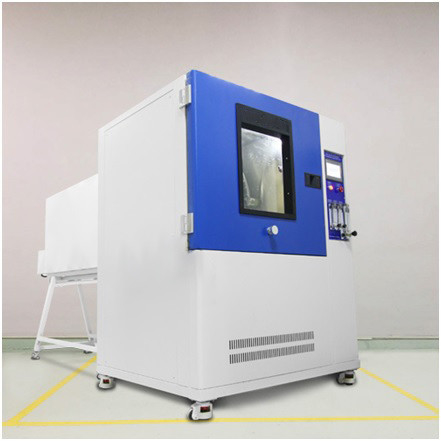

125L Waterproof Test Machine,
GB4208-2008 Waterproof Test Machine,
IPX5 Waterproof Testing Machine
Waterproof test machine is to test water resistance and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and related parts and components under simulated climatic conditions. To verify whether the performance of the product meet the requirements.
This waterproof tester is complied with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008“Enclosure Protection Level (IP Code)" 14.2.5, 14.2.6,GB7000.1.
|Products||IPX5 IPX6 Waterproof Test Chamber|
|Outer Size||About L3300*D850*H1300mm(Include water conduit)|
|Max load of rotary table||50KG|
|Testing Time||0-999 min|
|Diameter of spray hole||IPX5 is 6.3mm, IPX6 is 12.5mm|
|IPX5 spray flow||12.5±0.625L/min|
|IPX6 spray flow||100±5L/min|
|Water Pressure(Mpa)||Adjust according to the specified water flow|
|Fixing method of spray gun||Mechanical fixing|
|Equipment power supply||AC380V, three phase, 50Hz, 3.0KW|
|Sample power supply||AC220V, single phase, 50Hz, 10A|
|Safety function||Leakage protection, water shortage protection, short circuit protection|
|Temperature:5°C～35°C; Relative Humidity:≤85%; Air Pressure:86kPa～106kPa|
The following conditions are guaranteed by the user and the corresponding connection is completed:
1. The ground is level, ground and walls are waterproofed with floor drain or gutter, well ventilated;
2. Ground loading capacity is not less than 200kg/m2;
3. No strong vibration around the device;
4. No strong electromagnetic field around the device;
5. No flammable, explosive, corrosive substances and dust around the equipment;
6. Appropriate use and maintenance space is left around the equipment:
Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1200mm
1. The user is required to configure the leakage protection switch of the corresponding capacity for the equipment at site, and the switch must be used independently for the device.
2. It is forbidden to use the knife switch or power socket.
3. The leakage protection air switch is not more than 2 meters away from the equipment.
4. The user is required to supply the water source for the equipment at site, the water pressure is not less than 0.2Mpa,and install 4 water distribution taps.
5. The position of the water faucet is no more than 2 meters away from the equipment.
|1. How to choose the most suitable IPX5 IPX6 Waterproof Test Chamber from INFINITY MACHINE INC.?|
Our professional team will provide specialized suggestion to you when we received your testing requirements.
|2. What’s the delivery term?|
At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-20 working days.
|3. Do you accept customization service?|
Yes, of course, we are not only offer standard machines, but also provide customized service according to your
request. If you have any testing requirements, please contact us.
|4. Can we visit your factory before order?|
Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.
|5. Do you have customers in our country?|
Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.
|6. How about your warranty?|
Generally, we will provide 12 months warranty for testing machines.
|7. How about the packing for testing machine, are there have safe protected during transportation?|
Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.
|8. What is the order process?|
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging
- balance payment - packing - delivery - customer receiving - after service.
|9. How to install and use the testing equipments?|
| We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
For more details about IPX5 IPX6 Water Jet Test Chamber, please send inquiry to us!
