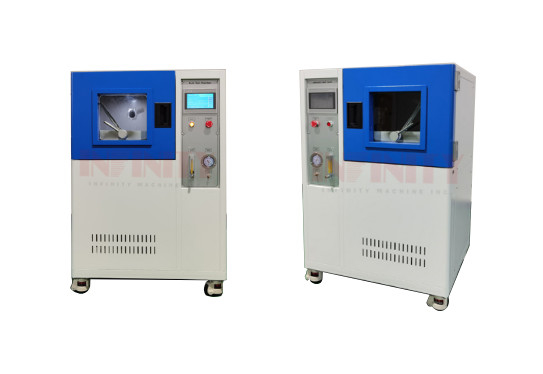

GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz

GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz

GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz
GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz
GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: ISO
Model Number: IN-IP56X-125L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Dust testing chamber: Standard export wooden case with operation manual and video inside.
Delivery Time: Dust proof test chamber: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Dust test chamber: 50 sets per month
Contact Now
Detailed Product Description
Product Name: IP5X IP6X Dust Test Chamber IP Rating: IP5X IP6X
Test Cabinet Size: 500x500x500mm Temperature Range: RT+10℃~70℃ (can Be Discussed)
Raining Force: 50um Standard Spacing Between Wires: 75um
Talcum Powder Dosage: 2~4kg/m3 Dust Fall Method: Free Dust Fall
Dust Used For Test: Dry Talcum Powder Power Supply: AC220V 50Hz 8A Or AC 120V 60Hz
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

IP6X Dust Test Chamber

,

IP5X Dust Test Chamber

,

Luminaires Dust Proof Chamber

IP5X IP6X Dust Test Chamber

Purpose:

Dustproof test chamber is to test the physical and other related properties of products such as electronic & electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts & components under the climate conditions of simulated dust. After testing, verification is conducted to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and ex-factory inspection.





Standard:

This dust test machine is comply with the requirements of IEC60529:1989 A1: 1999 A2: 2013 Degrees of Protection Provided by Enclosures (IP Code), Clauses 13.4 & 13.5 and Fig. 3 of GB4208-2008 Enclosure Protection Class (IP Code), and Clauses 9.2.1 & 9.2.2 and Fig. 6 of GB7000.1 Luminaires Part I: General Requirements and Tests.







Features:

1. This dust tester is suitable for IP5X and IP6X dust-proof rating test for products.

2. The outer enclosure is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, beautiful and durable.

3. Inner chamber and sample holder are made of stainless-steel plate to ensure long-term use without rust.

4. There is a transparent observation window (toughened glass material) on the door and an LED lamp installed in the chamber to facilitate the observation of internal testing.

5. The bottom of dust-proof tester chamber is has dust-replaceable device, which can replace used dust easily.

6. The working time is adjustable, and manual and auto mode operation can be alternated automatically.

7. There is a suction pipe in the chamber, which can evacuate the sample (sample is required to reserve suction hole ).

8. Heating system: the circulating air duct is equipped with a heater to heat dust so as to avoid dust condensation. Cladding type mica plate heating ring of the duct guarantees safe and stable heating; cladding type mica plate heating ring.
9. Vacuum system: equipped with vacuum pump, negative pressure meter, air filter, air flow meter, pressure-regulating triplet, connecting pipe.
10. Dust-proof test machine is more practical and easier to control on the basis of stable performance in all aspects on the premise of meeting national standards.
11. Dust test equipment is easy to install, easy to operate, and basically does not require daily maintenance.

12. IP5X IP6X dust test chamber control system: can display year, month, day, time and working time, etc.; dust test system can control the dust blower, dust vibration and total test time separately; the controller has a variety of setting control functions as described below;

Ø Dust blowing time (stop and blow): arbitrary time set for continuous and periodic dust blowing;

Ø Vibration time: time of vibration and of stopping vibration are automatically alternated;

Ø Preset test time: the maximum test time is 99 hours 59 minutes;

Ø Power on: off - on - off.





Specification:

Products Dust-proof Test Chamber
Model IN-IP56X-125L
Inner size L500*D500*H500mm
Outer size About L950 * D720 * H1500mm
Temperature range RT+10℃~70℃(can be discussed)
Relative humidity <30% (display or not is option)
Standard wire diameter of mesh mesh 50um
Standard spacing between wires 75um
Talcum powder dosage 2~4kg/m3
Velocity of powder outlet 6m/s
Dust used for test Dry talcum powder
Dust fall method Dust free fall
Total test time 0-999H (adjustable)
Vibration time 0-999H (adjustable)
Timing precision ±1 second
Vacuum degree 0-10Kpa (adjustable)
Evacuation rate 0-2,400L/H (adjustable)
Sample supply Test sample power supply
Test sample power supply AC220V 50Hz or AC120V, 60Hz single phase(option)
Equipment power supply 1.5KW
Safety protection function Leakage protection, short circuit protection






Pictures:

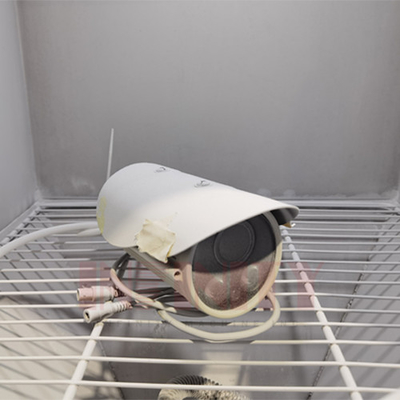

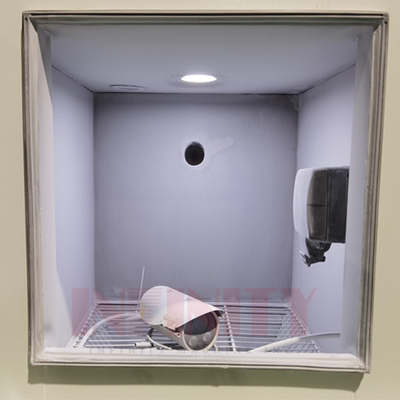

GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz 0 GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz 1





Video:

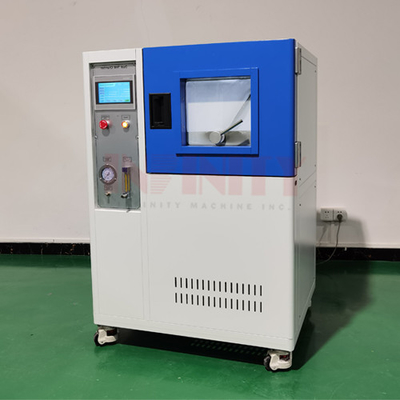

GB7000.1 IP5X IP6X Dust Test Chamber For Luminaires AC220V 50Hz 8A or AC 120V 60Hz 2









FAQ:


1. How to choose the most suitable Dust Proof Test Chamber from INFINITY MACHINE INC.?

Our professional team will provide specialized suggestion to you when we received your testing requirements.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-20 working days.



3. Do you accept customization service?

Yes, of course, we are not only offer standard machines, but also provide customized service according to your

request. If you have any testing requirements, please contact us.



4. Can we visit your factory before order?

Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.



5. Do you have customers in our country?

Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.



6. How about your warranty?

Generally, we will provide 12 months warranty for testing machines.



7. How about the packing for testing machine, are there have safe protected during transportation?

Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.



8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging

- balance payment - packing - delivery - customer receiving - after service.



9. How to install and use the testing equipments?
We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
