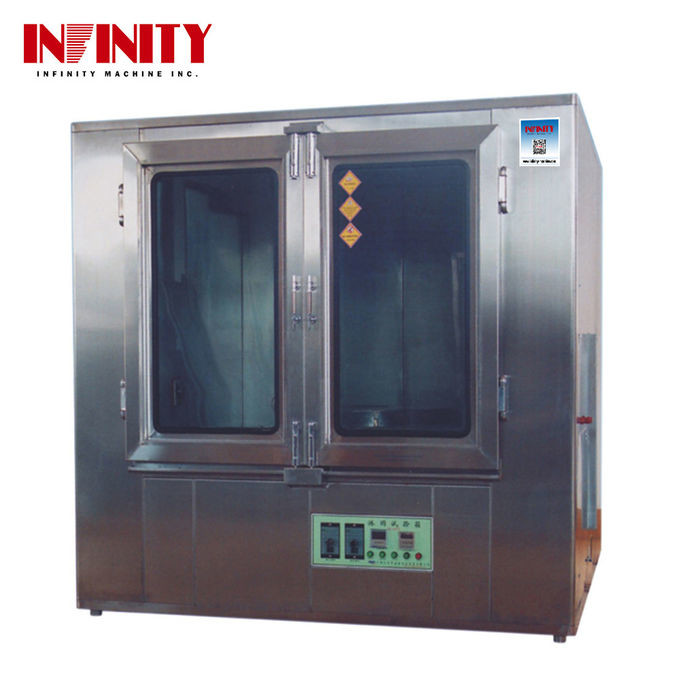

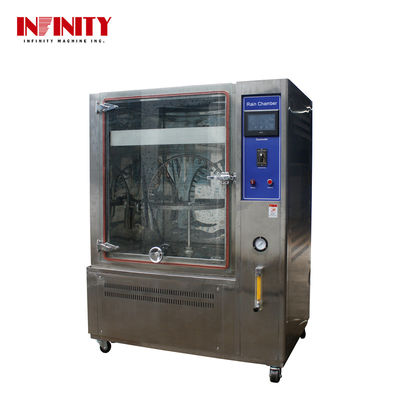

IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A

IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A

IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A
IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A
IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IPX1 IPX2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: IPX1 IPX2 Rain Drip Waterproof Testing Machine: Standard export wooden case with operation manual and video inside.
Delivery Time: IPX1 IPX2 Rain Drip Waterproof Test Machine: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: IPX1 IPX2 Rain Drip Waterproofness Test Chamber: 200 sets per month
Contact Now
Detailed Product Description
Product Name: IPX1 IPX2 Rain Drip Waterproof Test Machine IP Rating: IPX1 IPX2
Drip Board Size: L600*D600*H40mm Test Room: L800*D800*H1050mm
Drip Aperture: ¢0.4mm Distance Between Drip Holes: 20*20 Mm
Rainfall: 1-5 Mm/min(±0.5mm/min) Turntable Lifting Height: 350-700 Mm
Turntable Tilt: 0° Or 15°(horizontal Direction) Turntable Speed: 1 R/min(IPX1)
Power Supply: AC220V 50Hz 5A Or Specified By User Safety Protection: Leakage Protection, Water Shortage Protection, Short Circuit Protection
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Highlight:

IPX1 Waterproof Test Machine

,

IPX2 Waterproof Test Machine

,

IEC60529 Water Resistance Tester

IPX1 IPX2 Rain Drip Waterproof Testing Chambers, Rain Drip Waterproof Test Machine



Features:

The main function of rain drip waterproofness test machine is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.





Application:



Rain drip waterproof test chamber applies for the function test of outdoor lamps, household appliances, auto parts and other electronic and electrical products.





Test Standards:


Rain drip waterproofness test equipment comply with IEC60529:2013, GB4208-2017 "Enclosure Protection Grade (IP Code)" 14.2.1, 14.2.2 terms and Figure 3 and GB7000.1 "Lamps Part 1: General Requirements and Tests" 9.2.3.





Specification:



Products Drip Waterproof Test Machine
Water IP rating IPX1 IPX2
Drip board size L600*D600*H40mm
Equipment inner box size L800*D800*H1050mm
Outer size L1250*D1000*H1750mm
Drip aperture ¢0.4mm
Distance between drip holes 20*20 mm
Turntable diameter ¢0.6 mm
Rainfall 1-5 mm/min(±0.5mm/min)
Flow adjustment method Manual adjustment
Drip board lifting method Not lifting (fixed)
Turntable lifting height 350-700 mm
Turntable load bearing 50KG
Turntable tilt 0° or 15°(horizontal direction)
Turntable speed 1 r/min(IPX1)
Testing time 0-999 min
Safety device Leakage protection, water shortage protection, short circuit protection
Power supply AC220V±10% ;50Hz
Sample load power AC220V±10% ;50Hz
Power 1.0kw





IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 0



IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 1

Our workshop:

IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 2



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 3

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 4

IEC60529 2013 IPX1 IPX2 Rain Drip Waterproof Test Machine ¢0.4mm AC220V 50Hz 5A 5



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
