| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IPX1 IPX2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | IPX1 IPX2 Rain Drip Testing Chamber: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | IPX1 IPX2 Rain Drip Waterproof Testing Chamber: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | IPX1 IPX2 Rain Drip Waterproofness Test Chamber: 200 sets per month |

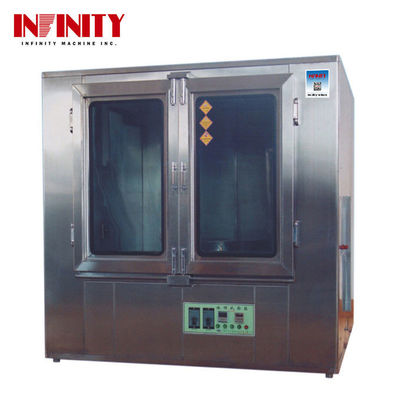

| Product Name: | IPX1 IPX2 Rain Drip Waterproofness Testing Chamber | IP Rating: | IPX1 IPX2 |
|---|---|---|---|
| Drip Board Size: | L600*D600*H40mm | Test Room: | L800*D800*H1050mm |
| Drip Aperture: | ￠0.4mm | Distance Between Drip Holes: | 20*20 Mm |
| Rainfall: | 1-5 Mm/min(±0.5mm/min) | Turntable Lifting Height: | 350-700 Mm |
| Turntable Tilt: | 0° Or 15°（horizontal Direction） | Turntable Speed: | 1 R/min（IPX1） |
| Power Supply: | AC220V 50Hz 5A Or Specified By User | Safety Protection: | Leakage Protection, Water Shortage Protection, Short Circuit Protection |
| High Light: | Electronic Products Water Resistance Tester,IPX1 Water Resistance Tester,IPX2 Rain Drip Waterproof Test Machine |
||
Features:
The main function of rain drip waterproofness test equipment is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
Application:
Rain drip waterproofness test chamber applies for the function test of outdoor lamps, household appliances, auto parts and other electronic and electrical products.
Test Standards:
Rain drip waterproofness test machines comply with IEC60529:2013, GB4208-2017 "Enclosure Protection Grade (IP Code)" 14.2.1, 14.2.2 terms and Figure 3 and GB7000.1 "Lamps Part 1: General Requirements and Tests" 9.2.3.
Specification:
| Products | Drip Waterproofness Test Equipment |
| Water IP rating | IPX1 IPX2 |
| Drip board size | L600*D600*H40mm |
| Equipment inner box size | L800*D800*H1050mm |
| Outer size | L1250*D1000*H1750mm |
| Drip aperture | ￠0.4mm |
| Distance between drip holes | 20*20 mm |
| Turntable diameter | ￠0.6 mm |
| Rainfall | 1-5 mm/min(±0.5mm/min) |
| Flow adjustment method | Manual adjustment |
| Drip board lifting method | Not lifting (fixed) |
| Turntable lifting height | 350-700 mm |
| Turntable load bearing | 50KG |
| Turntable tilt | 0° or 15°(horizontal direction) |
| Turntable speed | 1 r/min(IPX1) |
| Testing time | 0-999 min |
| Safety device | Leakage protection, water shortage protection, short circuit protection |
| Power supply | AC220V±10% ；50Hz |
| Sample load power | AC220V±10% ；50Hz |
| Power | 1.0kw |
