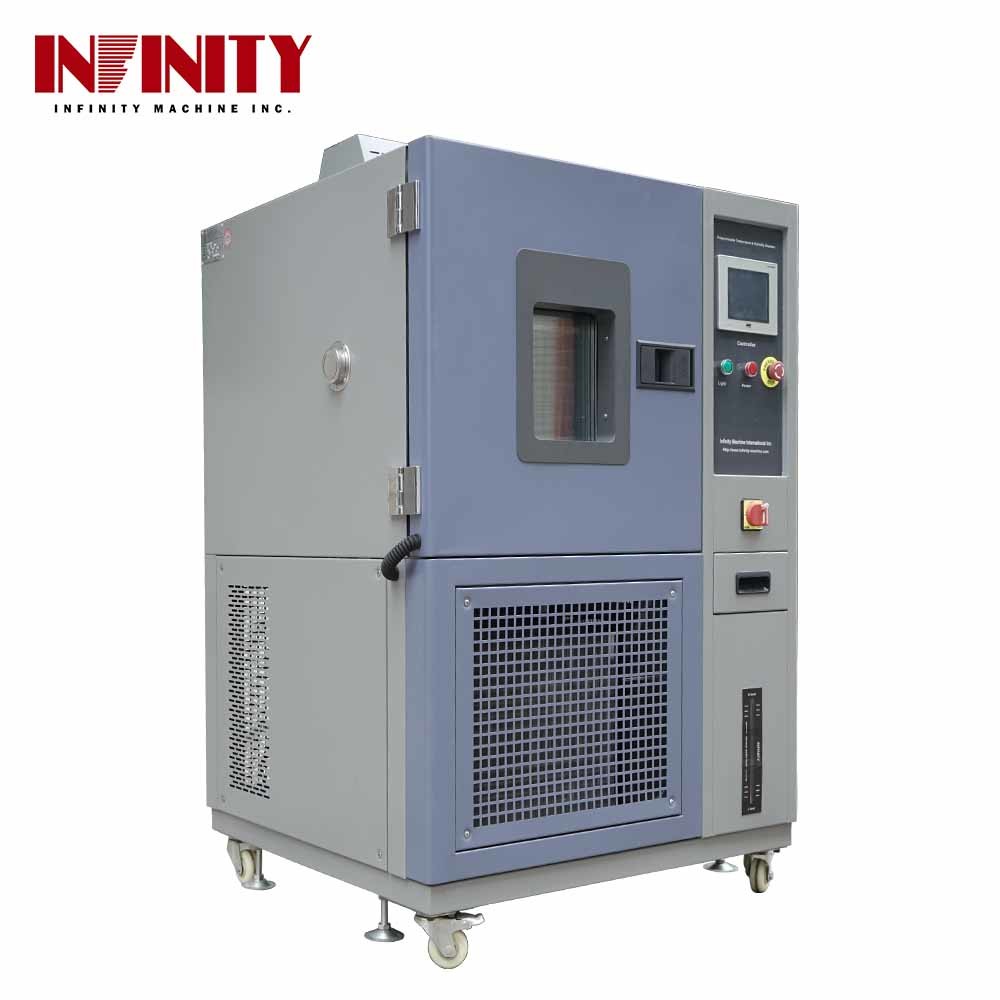

800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H

800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H

  • 800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H
  • 800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H
  • 800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H
800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temp-range: -20℃~+150℃, -40℃~+150℃, -70℃~+150℃ Humid-range: 20% R.H ~98% R.H
Temp-accuracy: ±0.5℃ Humid. Accuracy: ±3%R.H
Power Supply: AC220V 3KW Or Specified By User Interior Dim: 400x500 X500
Exterior Dim: 1000x1450 X1050 Weight: 220Kg
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

environmental testing chamber

800L Programmable Temperature and Humidity Tester /

Temperature Humidity Test Chamber IEC68-2-2



Purpose:



GDJS-100L is to test heat endurance, cold endurance, dry endurance, wet endurance of various materials. It applies for quality control of electronic goods, electric appliance, measurement device, food, automobile, metal, chemical, plywood, aviation, medical and etc.



Features:



(1) Good appearance; stainless steel is applied for the inner and outside material of the chamber, flat  knob without reaction force; easy operation.

(2) It can be installed additional testing holes according to requirements.

(3) It adopt touching screen of original Japan OYO LCD. It can store 100 sets of programme (PTN)x1000 (steps), each programme can do 9999

     times or repeat unlimitedly, operation interface is English. It is with fault warning and protecting function, RS-232 communication interface,

     attached PC software available for far control.

(4) Multi-wing ventilator inside the machine surpasses the traditional one exposing outside. It ventilates cyclically and strongly to make             temperature evenly in the chamber.

(5) Observation window: tempered glass with defroster, heating device, energy- saving illumination.

(6) Hidden water giving system: pretty appearance and convenient watering operation.



Standard:



GB-2423.1-89 ( IEC68-2-1 )        GJB150.4 ( MIL-STD-810D )

GB-2423.2-89 ( IEC68-2-2 )        GB2423.3-93 ( IEC68-2-3 )

GJB360.8-87 ( MIL-STD-202F )  GB2423.4-93 ( IEC68-2-30 )

GJB150.3 ( MIL-STD-810D )       GJB150.9-93 ( MIL-STD-810D )



Machine working condition:



Temperature: 15~35℃;

Air flow should not be blown directly to the body;

Relative humidity:≤85%RH

Air pressure:86~106Kpa

Make sure the machine without any strong vibration and airflow, no direct sunlight or other heat radiator, no high density dust or corrosive material. And keep 60cm space with other appliance or wall to make sure normal working and operation.



Specification:



 Model  100L
 Temp-range  A:-20℃~+150℃, B:-40℃~+150℃, C:-70℃~+150℃
 Humid-range  20% R.H ~98% R.H
 Temp-accuracy  ±0.5℃
 Humid. Accuracy  ±3%R.H
 Temp. uniformity  ±5℃
 Time for heating up  35min for-20℃~+100℃, 45min for-40℃~+100℃, 60min for-70℃~+  100℃
 Time for cooling  down  40min for +20℃~-20℃,55min for +20℃~-40℃, 90min for +20℃~-  70℃
 Interior dim (WxHxD)  400x500x500mm
 Exterior dim (WxHxD)  1000x1450x1050mm
 Interior material  Stainless steel SUS304 (mirror)
 Exterior material  Stainless steel SUS304 (matt)
 Thermal Insulation  material  Rigid polyfoam (To use glass wool at 150℃)
 Cooling system  Hermetic compressor
 Accessories  Observation window, freely adjustable shaft for 2 layer, test hole for 1pcs at  ¢50mm, chamber lamp
 Weight  220Kg
 Power supply  AC220V 3KW or specified by user

Our workshop:

800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H 0



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H 1

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H 2

800 L Programmable Environmental Chamber For Temperature Humidity Test IEC68-2-2 20% R.H ~98% R.H 3

FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
