Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃

Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃

  • Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃
  • Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃
Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Pre-heating Temp-range: 0℃~-78℃ Pre-cooling Temp-range: +60℃~+200℃
Temp-accuracy: ±3℃ Temp-change Time: 5 Min
Time For Heating Up: 40min For +20℃~+150℃ Interior Material: Stainless Steel 304 (bright Surface)
Exterior Material: Stainless Steel 304 (coated Surface) Warranty: 1 Year
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. SSR: Precisely Digital Thermal Controller With Spray Protection System.
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

environmental testing chamber

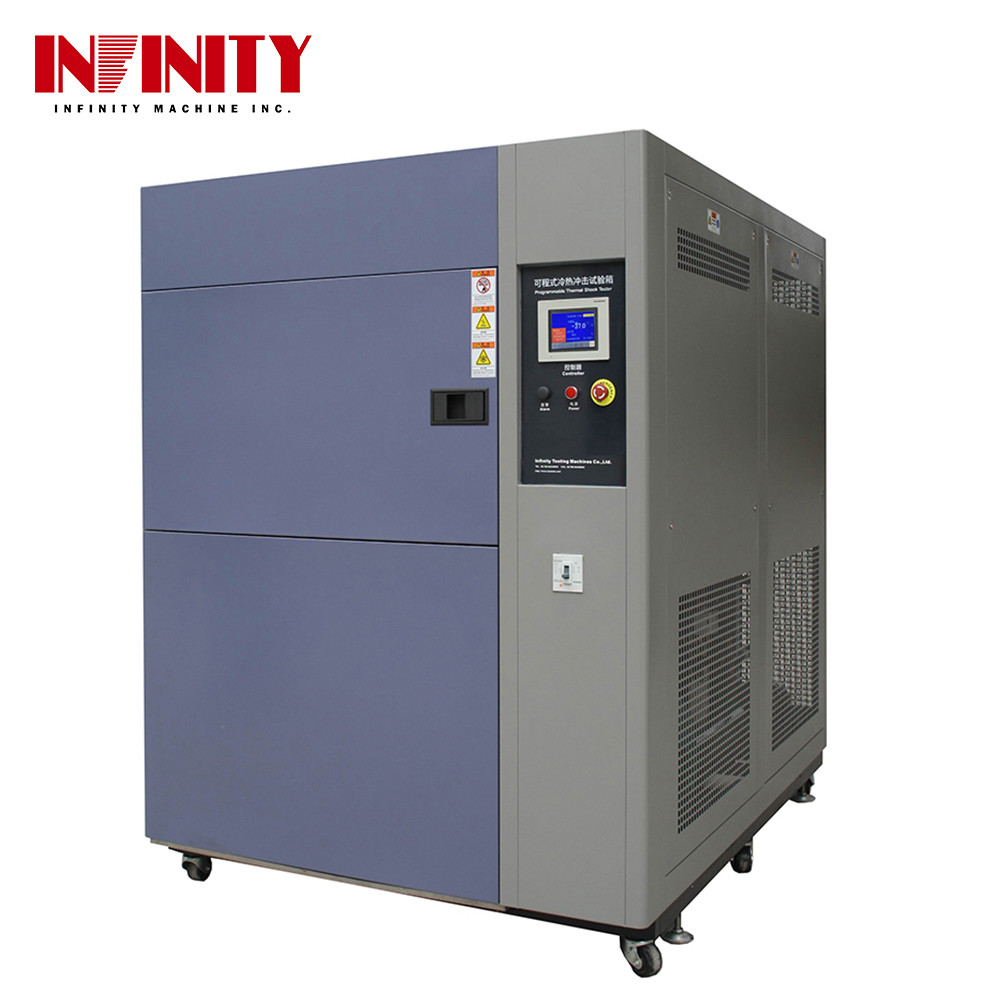

Hot Sell Three - Groove Programmable Thermal Shock Environment Test Chamber for Temperature And Humidity Testing



Purpose:



The programmable thermal shock tester is for testing the capability of the parts and material in extreme high temperature and extreme low temperature in a short time continuously to check the chemical and physical change owing to the thermal shrink ager up. It applies for metal, plastic, rubber, electronic and etc..



Features:

  • While the specimen keeps stationary in testing zone, it will guide the air from pre-heating & pre-cooling zones for shocking actions.
  • The temperature recovery time is within 5 minutes.

Specification:



 Model  50  100  C150  200  300  600
 Pre-heating Temp- range  0℃~-78℃
 Pre-cooling Temp-range  +60℃~+200℃
 Temp shocking range  High temp: +60℃~+150℃, Low temp: A type: -10℃~-40℃; B type: -10℃~-55℃; C type: -10℃~-65℃;
 Temp-accuracy  ±3℃
 Temp-change time  5 min
 Time for cooling down  70min for +20℃~-40℃,80min for +20℃~-55℃, 90min for +20℃~-65℃
 Time for heating up  40min for +20℃~+150℃
 Interior dim (WxHxD) mm

 350x400

x360

 500x400

x400

 600x500

x500

 650x500

x620

 900x500 x670

 1000x800

x750

 Exterior dim (WxHxD) mm  1350x1750 x1370  1400x1800 x1370  1500x1850 x1500  1500x1850 x1650  1800x1850 x1700  2000x2200 x1850
 Interior material  Stainless steel 304 (bright surface)
 Exterior material  Stainless steel 304 (coated surface)
 Thermal Insulation material  Rigid polyfoam (To use glass wool at 150℃)
 Cooling system  Cascade refrigeration system
 Accessories  Freely adjustable shaft for 2 layer, test hole for 1pcs at ¢50mm
 Weight  850Kg  250Kg  300Kg  400Kg  600Kg  700Kg
 Power supply

 AC380V  20KW

Or specified

 AC380V  22KW

 Or specified

 AC380V  25KW

 Or specified

 AC380V  35KW

 Or specified

 AC380V  50KW

 Or specified

 AC380V 65KW

 Or specified





Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃ 0

Our workshop:

Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃ 1



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃ 2

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃ 3

Three Groove Environmental Test Chambers For Temperature Humidity Testing 40min for +20℃~+150℃ 4



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
