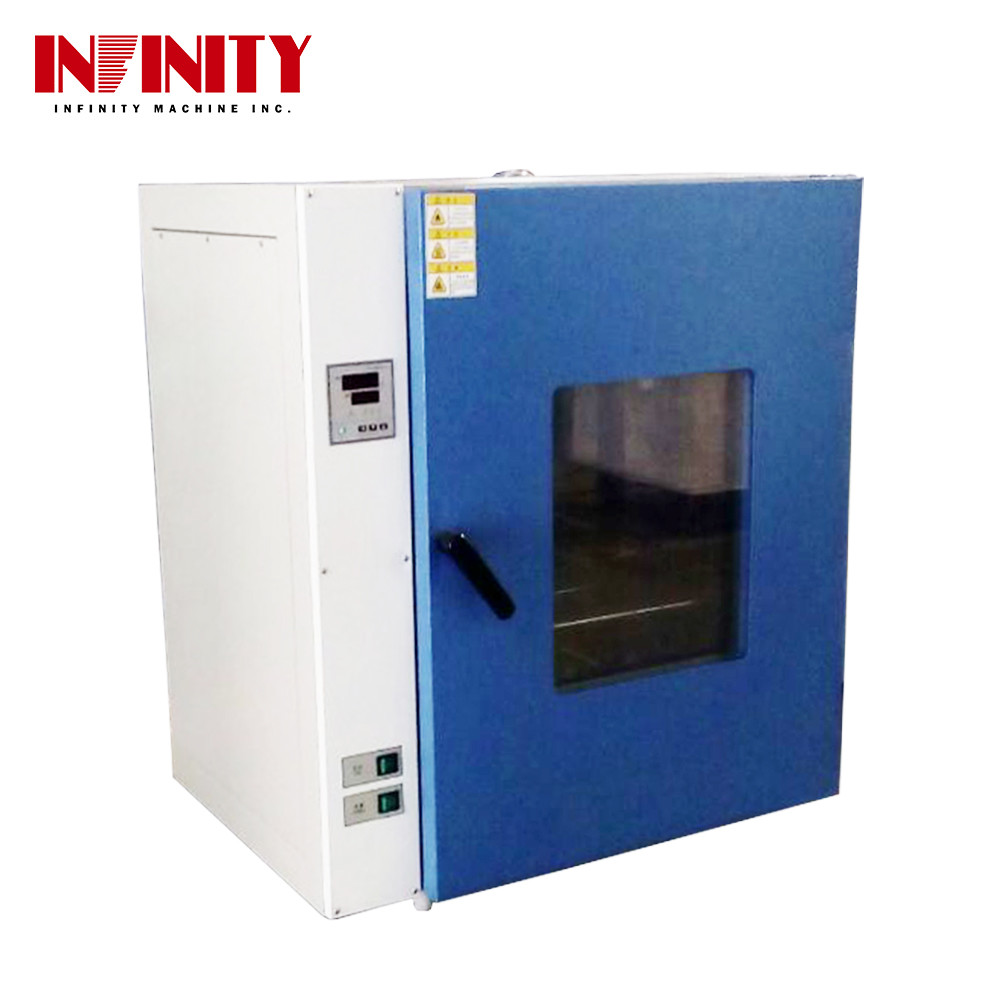

Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃

Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃

  • Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃
  • Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃
Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temp. Error: ±2℃ Fluctuation For Constant Temp.: ±0.5℃
Temp. Accuracy: ±0.1℃ Warranty: 1 Years
Working Room Size: 1200*1050*1100mm (W*D*H) Time For Cooling Down: 200℃~RT+15℃ ≤30min
Time For Heating Up: 7℃≤1min (RT~200℃≤30min) Chamber Dimension: 1550*1450*1500mm (W*D*H)
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

environmental testing chamber

Heating High Temperature Dry Oven, High Temperature Test Oven

Air supply circulation system:



1. Axial flow motor (low noise)

2. Stainless-steel multi-wing centrifugal wind wheel

3. Single cycle



Implementation of components:



1. Japan 's Fu-ji small relays

Contact capacity: AC220V 50Hz or specified by customer

Contact distribution mode: 2z

Lifetime: 105OPS

Placement method: printed circuit board type, Printed-Circuit border type, flange type, plug-in type.



2. France’s "Schneider" AC contactor

Long service life: the mechanical life reaches as high as 200 million times; the service life reaches as high as 20 million times.

Strong adaptability: "TH" protective treatment, which enables it to be used in hot and humid environments.

Modularization: modules like the auxiliary contact, power-on / power-off delay contact and mechanical lock can be attached to the product body.



Touch screen temperature controller:



1) Model: IN-E

2) Origin: Guangdong, China

3) Description: TEMI880 is a temperature controller that takes time-division PID action as the benchmark, which can design the setting temperature

in multiple programs, and can record, draw the test temperature curve, as well as export the curve.

4) Platinum thermometer is to control and measure the temperature of the dry bulb, and can transmit the temperature and the main set point of the

dry bulb through continuous communication.

5) After the dry bulb’s temperature receives the message through continuous communication, measured the with platinum thermometer.



Test requirements:



1. Working room size: W1200*D1050*H1100mm

2. Temp-range: room temp. + 15℃ ~ 300℃

3. Time for heating up: Around 30min for room temp. + 15℃ ~ 200℃ (can be controlled)

4. Time for cooling down: Around 30min for 200℃~room temp. + 15℃ (can be controlled)

5. The primary air system is adopted.

6. The specimen amount to 55kg, and it shall consider the bracket (support frame) strength.

7. It uses touch screen control can can display the temperature change value and temperature curve in real time, and export the test curve and data through the USB 2.0 socket on the panel. It is equipped with over-temperature protection such as three-color indicator light, warning buzzer, over-temperature power off and the sample holder’s bearing is 20 kg.



Purpose:



The company's high-temperature constant-temperature test chamber has a precise temperature control system, and implements the standards:

GB / T 11158-2008, GB / T2423.2-2008, which offers various environmental simulation conditions needed by industrial research and biotechnology test. It is widely used in tests of raw material performance, product packaging and product life of products in electronic, pharmaceutical, textile,automotive and other industries.



Specification:



 Model  IN-E
 Working room size  1200*1050*1100mm (W*D*H)
 Chamber dimension  1550*1450*1500mm (W*D*H)
 Temp-range  RT+10℃~300℃
 Time for heating up  7℃≤1min (RT~200℃≤30min)
 Time for cooling down  200℃~RT+15℃ ≤30min
 Temp. accuracy  ±0.1℃
 Fluctuation for constant temp.  ±0.5℃
 Temp. error  ±2℃
 Temp. uniform  ≤±2℃



Feature:



1. The equipment uses the first new arc-shaped design at home, which makes the overall appearance of the equipment generous.

2. The inner chamber material is made of 304B stainless steel plate, which has the characteristics of acid resistance, corrosion resistance and easy cleaning.

3. The sample holder can be adjusted up and down as needed.

4. The test lead hole is on the left side of the studio on the left, and the hole cover can be opened when used.

5. It uses high-quality door magnetic strip seal and insulation materials to make the performance of the complete machine more excellent.

6. According to the historical experience of professionally designed experimental equipment, it has a reasonable air duct system, making the cabinet to achieve the highest uniformity of the temperature and humidity.

7. It uses the frequency converter-controlled primary air system (external air cooling) for thermal balance to ensure that the heating is controllable and the cooling time controllable.



Security measures:



Earthing protection

Workshop over-temperature protection

Heater short circuit, overload protection

Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃ 0



Our workshop:

Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃ 1



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃ 2

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃ 3

Heating High Temperature Dry Oven High Temperature Test Oven 200℃~RT+15℃ ≤30min ±0.5℃ 4



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
