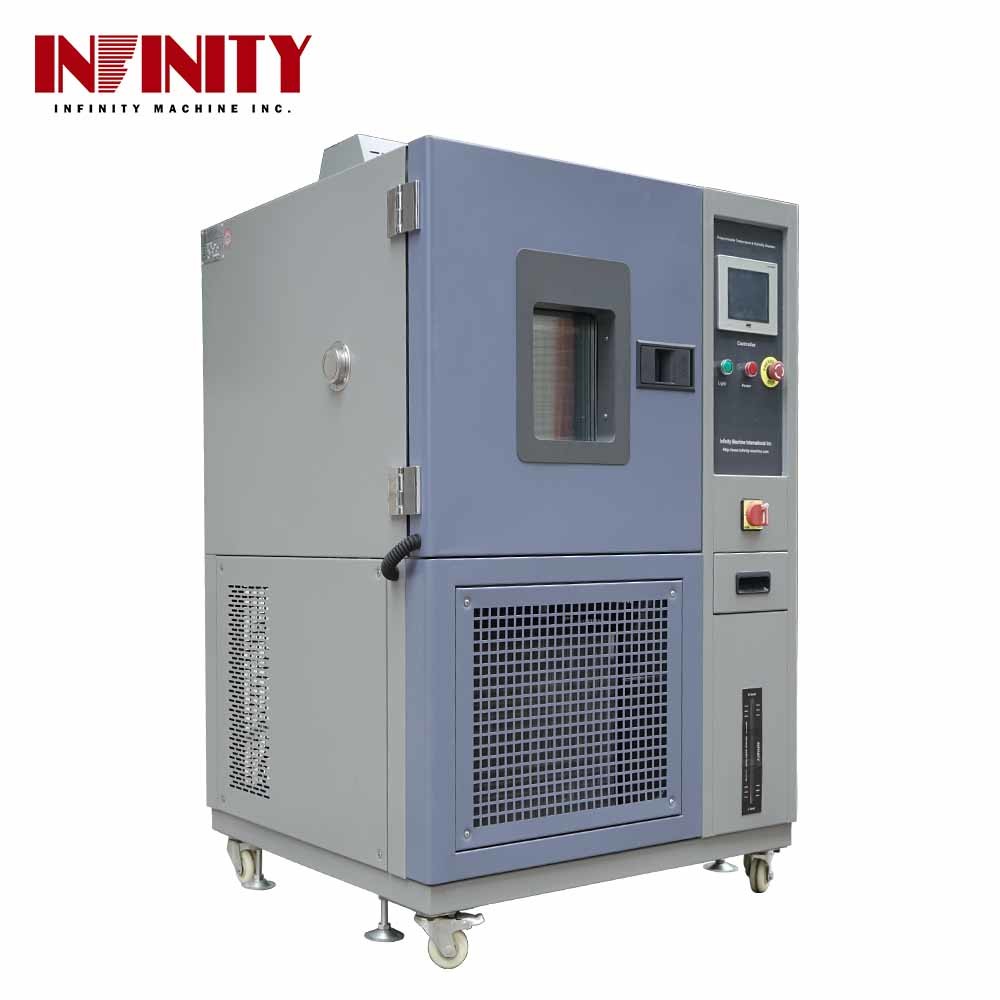

Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H

Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H

  • Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H
  • Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H
Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IN-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Programmable Temperature Humidity Testing Chamber: Standard export wooden case with operation manual and video inside.
Delivery Time: Programmable Temperature Humidity Test Chamber Machine: Shipped in 45 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Programmable Temperature Humidity Test Chamber: 20 sets per month
Contact Now
Detailed Product Description
Capacity: 250L ~ 1500L Weight: 350kg ~ 850kg
Cooling System: Hermetic Compressor Thermal Insulation Material: AC380V 7.5KW / 10KW / 11KW / 12KW Or Specified
Temp. Accuracy: 20% R.H ~98% R.H Humid-range: 20% R.H ~98% R.H
Power Supply: ±3%R.H Capacity: 250L
Humidity: 85%~98%RH Temperature Range: ± 0.5℃
Salt Spray Subside: 1.0~2.0ml/80cm2/h Test Room Size: 900x600x450mm
Machine Size: 1460x910x1280mm Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Power Supply: AC220V 15A Or Specified By User
Water Way: Atered By Itself While Lack Of Water Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC Spray Material: Transparent PVC
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

environmental testing chamber

Programmable Temperature Humidity Chamber for Laboratory, Programmable Temperature Humidity Test Chamber for Lab

Standard:



GB-2423.1-89 ( IEC68-2-1 )         GJB150.4 ( MIL-STD-810D )

GB-2423.2-89 ( IEC68-2-2 )         GB2423.3-93 ( IEC68-2-3 )

GJB360.8-87 ( MIL-STD-202F )   GB2423.4-93 ( IEC68-2-30 )

GJB150.3 ( MIL-STD-810D )        GJB150.9-93 ( MIL-STD-810D )



Specification:



 Model  250  500  1000  1500
 Humid-range  20% R.H ~98% R.H
 Temp. Accuracy  ±0.5℃
 Humid. Accuracy  ±3%R.H
 Heating and cooling  speed  5℃/min, 10℃/min, 15℃/min ( Standard load 5~30Kg Aluminum Ingot )
 Interior dim (WxHxD) mm  700x700x500  800x900x700  1000x1000x1000  1000x1500x1000
 Exterior dim (WxHxD) mm  1300x1650x1100  1400x1850x1400  1600x1950x1600  1500x2500x1600
 Interior material  Stainless steel SUS304 (mirror)
 Exterior material  Stainless steel SUS304 (matt)
 Thermal Insulation  material  Rigid polyfoam (To use glass wool at 150℃)
 Cooling system  Hermetic compressor
 Accessories  Observation window, freely adjustable shaft for 2 layer, test hole for 1pcs  at ¢50mm, chamber lamp
 Weight  350Kg  480Kg  700Kg  850Kg
 Power supply

 AC380V 7.5KW

 or specified

 AC380V 10KW

 or specified

 AC380V 11KW

 or specified

 AC380V 12KW

 or specified



Features:



Good appearance; stainless steel is applied for the inner and outside material of the chamber, flat knob without reaction force; easy operation.



Programmable Temperature Humidity Testing Chamber can be installed additional testing holes according to requirements.



Programmable Temperature Humidity Chamber adopt touching screen of original Japan OYO LCD. It can store 100 sets of programme (PTN)x1000 (steps), each programme can do 999 times or repeat unlimitedly, operation interface is English. It is with fault warning and protecting function, RS-232 communication interface, attached PC software available for far control.



Multi-wing ventilator inside the machine surpasses the traditional one exposing outside. It ventilates cyclically and strongly to make temperature evenly in the chamber.



Observation window: tempered glass with defroster, heating device, energy- saving illumination.



Hidden water giving system: pretty appearance and convenient watering operation.



Purpose:



Programmable Temperature Humidity Chamber Machine is to test heat endurance, cold endurance, dry endurance, wet endurance of various materials. It applies for quality control of electronic goods, electric appliance, measurement device, automobile, metal, chemical, plywood, aviation, medical and etc.



Our workshop:

Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H 0



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H 1

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H 2

Programmable Temperature Humidity Chamber for Laboratory 250L ~ 1500L 20% R.H ~98% R.H 3



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
